About this replacement

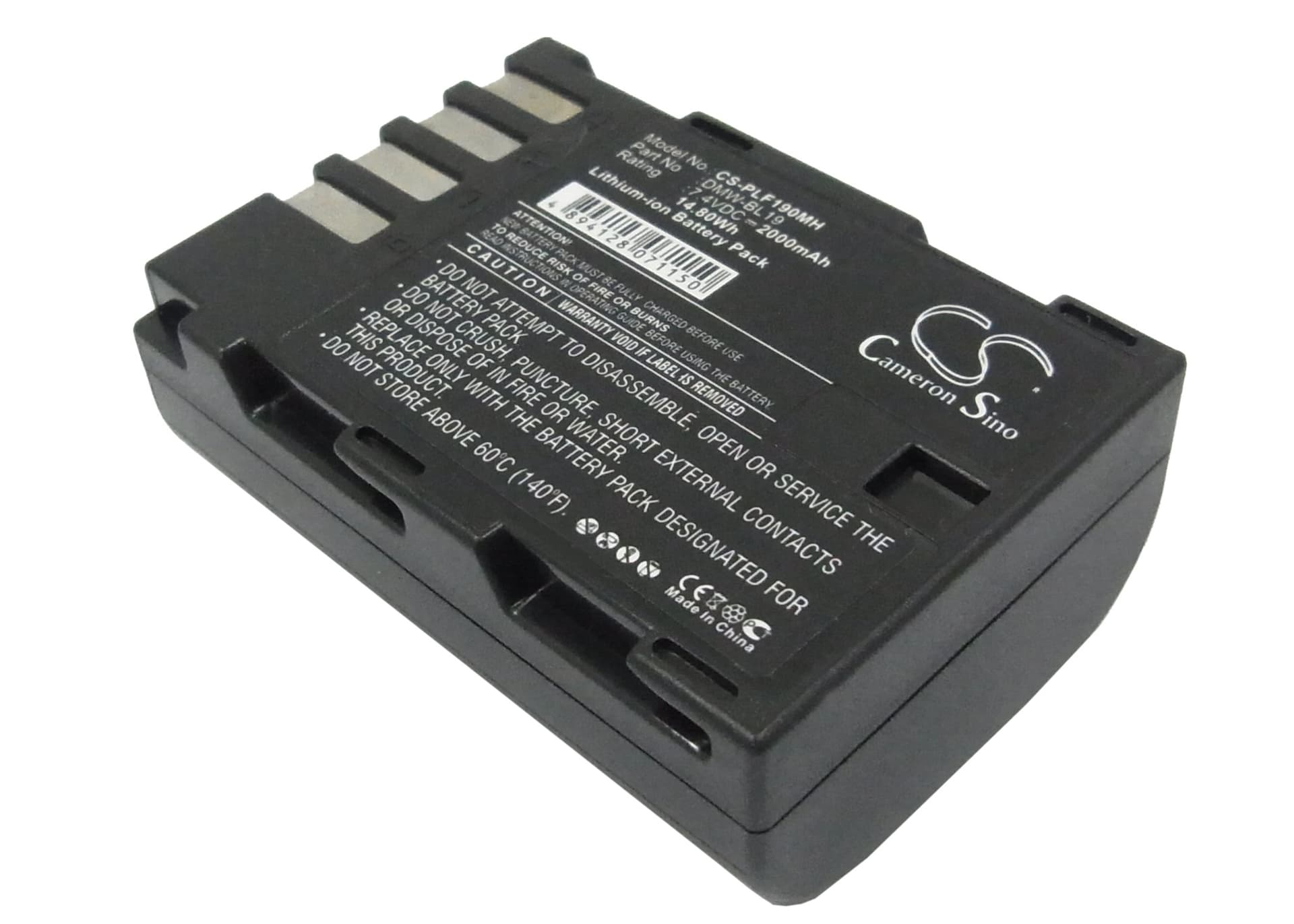

Panasonic Lumix DMC-GH3 Series — 7.4V Li-ion Replacement Battery (DMW-BLF19)
This is a 7.4V, 2000mAh Li-ion replacement for the Panasonic DMW-BLF19 battery. It fits the Lumix DMC-GH3, GH3A, GH3AGK, and GH3GK, among other GH3-series bodies. Same voltage, same capacity, same grip-bay footprint as the original cell.
- GH3-series compatibility: All GH3 variants share the same battery bay geometry, contact layout, and BMS handshake protocol. The DMW-BLF19 connector and NTC thermistor pin are matched, so the camera body reads charge state and temperature from the replacement cell the same way it does from the factory unit.
- Bench tested on actual hardware: We cycled this cell through a GH3 body under combined stills and 1080p video load. The BMS held the charge curve within spec and did not trigger a low-voltage cutoff during normal draw cycles. Protection circuitry responded correctly to simulated overcurrent events.
- First-use charge cycle on GH3 bodies: Run one full charge cycle through the camera body or an OEM-compatible charger before heavy shooting. The GH3 BMS maps its battery-remaining percentage against a learned discharge curve — skipping this step causes the indicator to jump or read inaccurately during the first few uses.
Why the GH3 battery indicator reads erratically on a new replacement cell
The GH3 tracks remaining charge by mapping voltage thresholds against a discharge profile it expects from a conditioned cell. A new, unconditioned cell has a slightly flatter discharge curve than the camera anticipates, so the percentage display can jump — often from 80% down to 20% with no warning. This is not a fault with the replacement cell. After one or two full charge and discharge cycles inside the camera body, the indicator stabilises and tracks accurately through the rest of the cell's life.
GH3 displaying "no battery" or rejecting a valid replacement on first install
The GH3 performs an authentication check when a new cell is seated. If the battery has been in storage and rests below approximately 3.0V per cell (6.0V pack total), the camera may refuse to power on or show a battery error. Place the cell in a DMW-BTC10-compatible charger until it reaches at least 7.0V before inserting it into the body. Once the camera accepts the initial charge read, it will recognise the battery on all subsequent inserts without issue.
