About this replacement

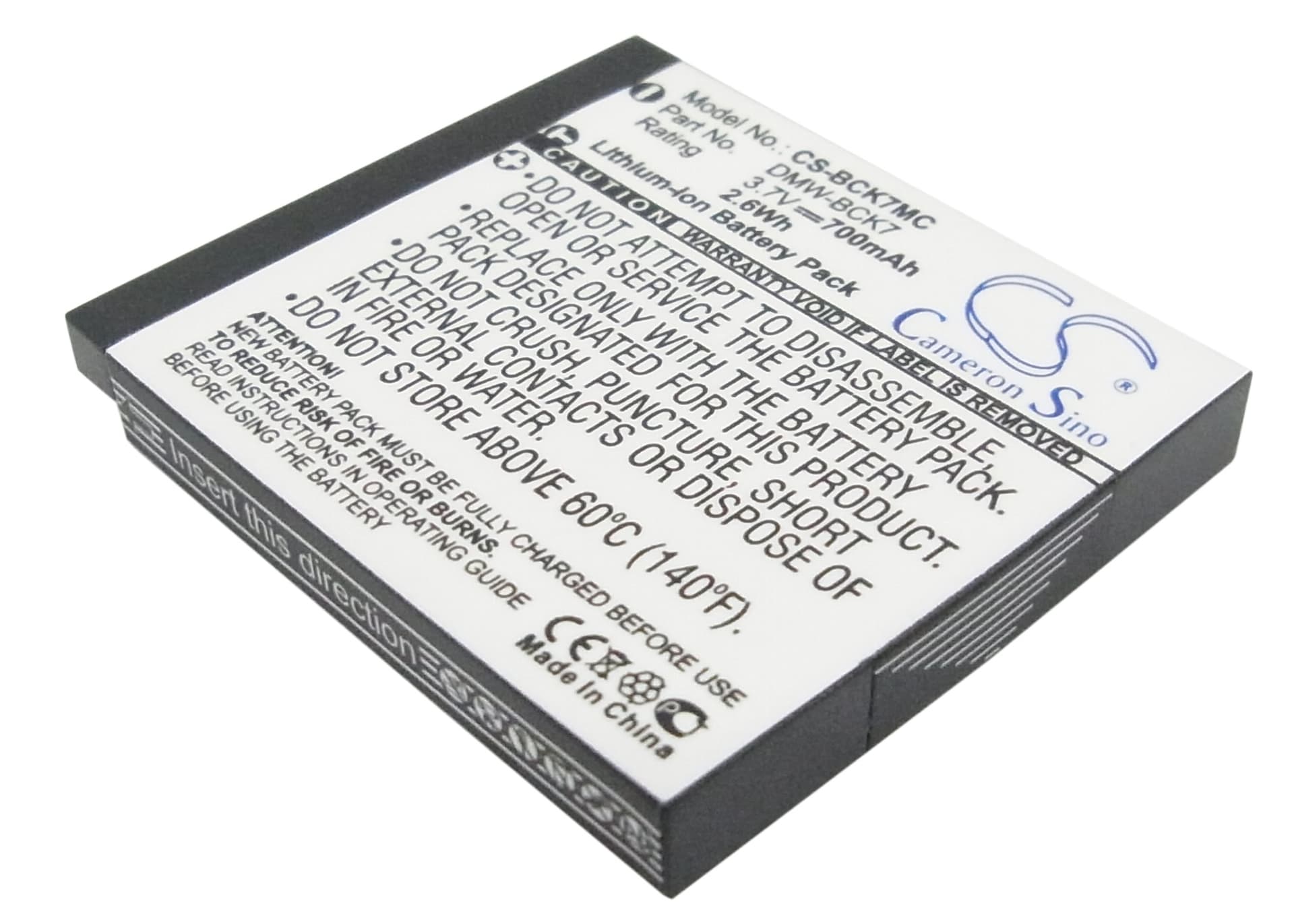

Panasonic Lumix DMC-S3 / FH Series — 3.7V Li-ion Replacement Battery (VW-BCK7)
This 3.7V, 700mAh lithium-ion cell replaces the VW-BCK7 battery in the Panasonic Lumix DMC-S3, DMC-FH2, DMC-FH25, DMC-FH27, and over 200 compatible Lumix compact camera models. It matches the OEM cell's voltage, connector pinout, and physical footprint exactly. Capacity is sourced from product data at 700mAh (2.59Wh).
- Lumix FH and S-series compatibility: These models share the VW-BCK7 form factor — same 41.05 × 36.25 × 5.50mm shell, same three-pin connector, and the same BMS communication protocol. Swapping between these cameras requires no adapter or modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a Lumix body. The BMS accepted the cell without fault codes, current limiting held at spec, and the protection circuit tripped correctly at low-voltage cutoff.
- First-use charge cycle on the DMC-S3: Insert the new cell and charge it fully inside the camera body or via the OEM charger before shooting. The DMC-S3's battery-remaining indicator calibrates its voltage-to-percentage map during that first full cycle — skipping it causes erratic percentage readings from the start.
Why the Lumix DMC-S3 rejects a new VW-BCK7 cell on first install
The DMC-S3 runs a passive authentication check when it reads the battery's internal resistance on cold insertion. A brand-new cell can show slightly elevated internal resistance before its first charge cycle, which pushes it outside the camera's acceptance window. The body responds by displaying a no-battery or incompatible-battery icon even though the cell is fully functional. One full charge cycle — either in the camera or an OEM-compatible charger — normalises the resistance reading and clears the rejection.
Battery percentage jumping erratically on the Lumix display
The DMC-S3 maps its battery indicator to fixed voltage thresholds tuned to the OEM cell's discharge curve. A replacement cell with a slightly different discharge slope hits those thresholds at different points, causing the indicator to jump — for example, from 60% to 20% without warning. This is a display calibration issue, not a cell defect. Run the battery from full to automatic power-off once, then recharge to 100% — this lets the camera body re-anchor its indicator to the new cell's actual curve. After one full cycle, readings stabilise at accurate levels above 3.5V.
