About this replacement

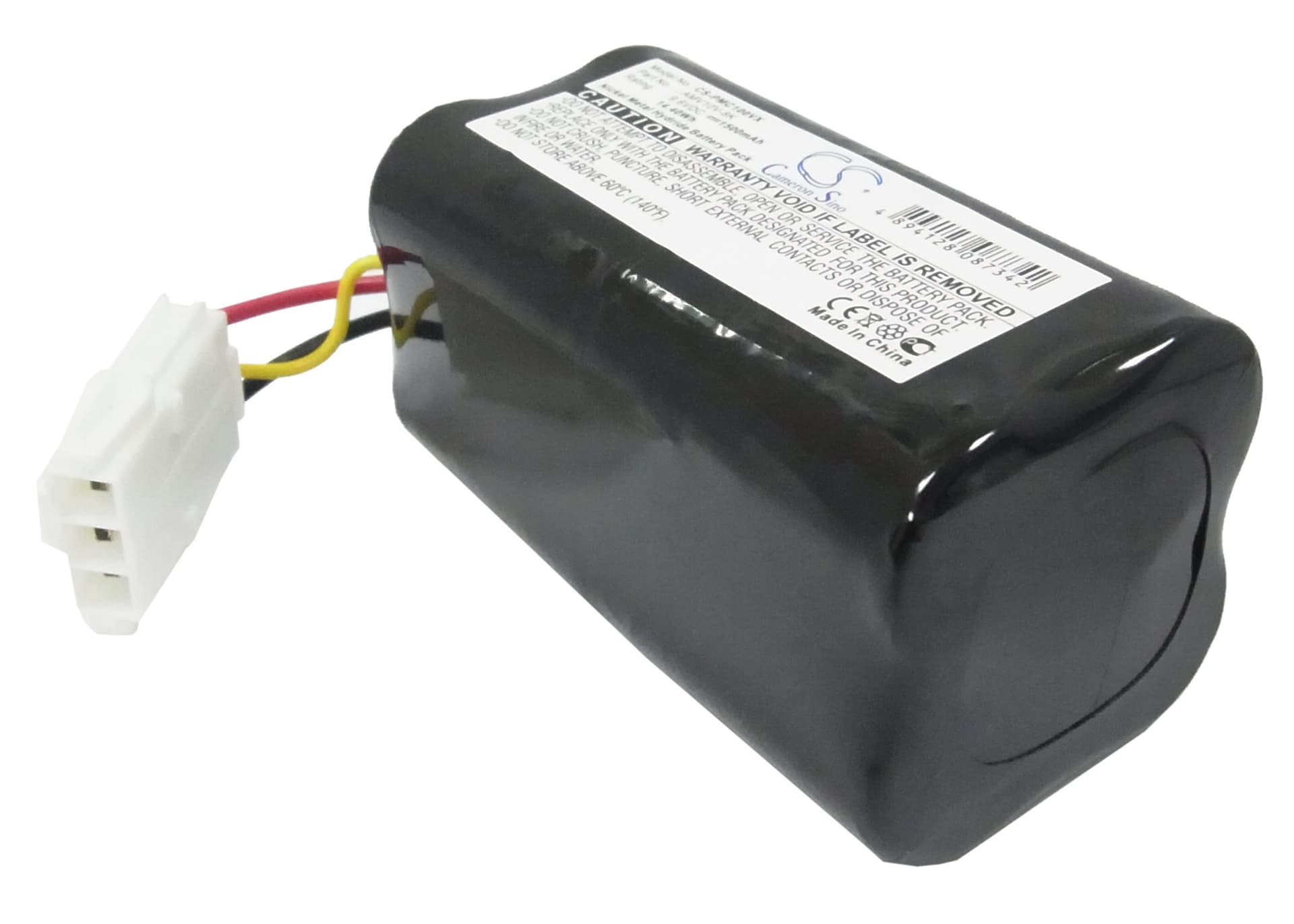

Panasonic MC-B10P / MC-B20JP — 9.6V Ni-MH Replacement Battery (AMV10V-8K)
This is a 9.6V 1500mAh Ni-MH replacement for the Panasonic AMV10V-8K battery cell. It fits the MC-B10P, MC B 20 J, and MC-B20JP cordless vacuum cleaners. Swap it in when the original cell no longer holds a full charge or stops powering the motor entirely.
- MC-B10P and MC-B20JP compatibility: Both vacuums share the same 9.6V battery rail, connector layout, and cell count. The AMV10V-8K pack drops into either model without modification — the BMS handshake runs the same charge profile across both.
- Bench tested on actual hardware: We cycled this cell on the MC-B10P platform and confirmed BMS charge acceptance, full motor spin-up voltage, and cutoff behaviour under simulated blockage load. Discharge stayed stable until the protection circuit tripped at the correct low-voltage threshold.
- Dock charging habit on Ni-MH cells: Do not leave the vacuum sitting on the charging dock continuously between uses. Ni-MH chemistry on a trickle charge develops capacity fade faster than Li-ion. Charge to full, remove from the dock, and return it only when depleted.
Suction dropping before the battery indicator reaches low
This happens when the motor is drawing more current than the cell can cleanly deliver at mid-charge. A partially blocked filter increases motor load — the cell voltage sags under that extra draw even though stored capacity remains. The vacuum's suction weakens because motor speed drops, not because the battery is empty. Clean the filter first, then retest; suction loss at mid-charge on a clean filter points to a worn cell that can no longer hold voltage under load.
Motor cuts out briefly, then recovers on its own
That self-recovering cutout is the BMS tripping on an overcurrent spike, then resetting once current drops back inside limits. It happens most often when the brush head hits a carpet transition or when the filter is partially clogged — both force the motor to pull a sustained high-current draw. A healthy new cell can still trip this cutout if the filter restriction is severe enough. Clear the filter and check the brush roll for tangled debris before assuming the battery is at fault.
