About this replacement

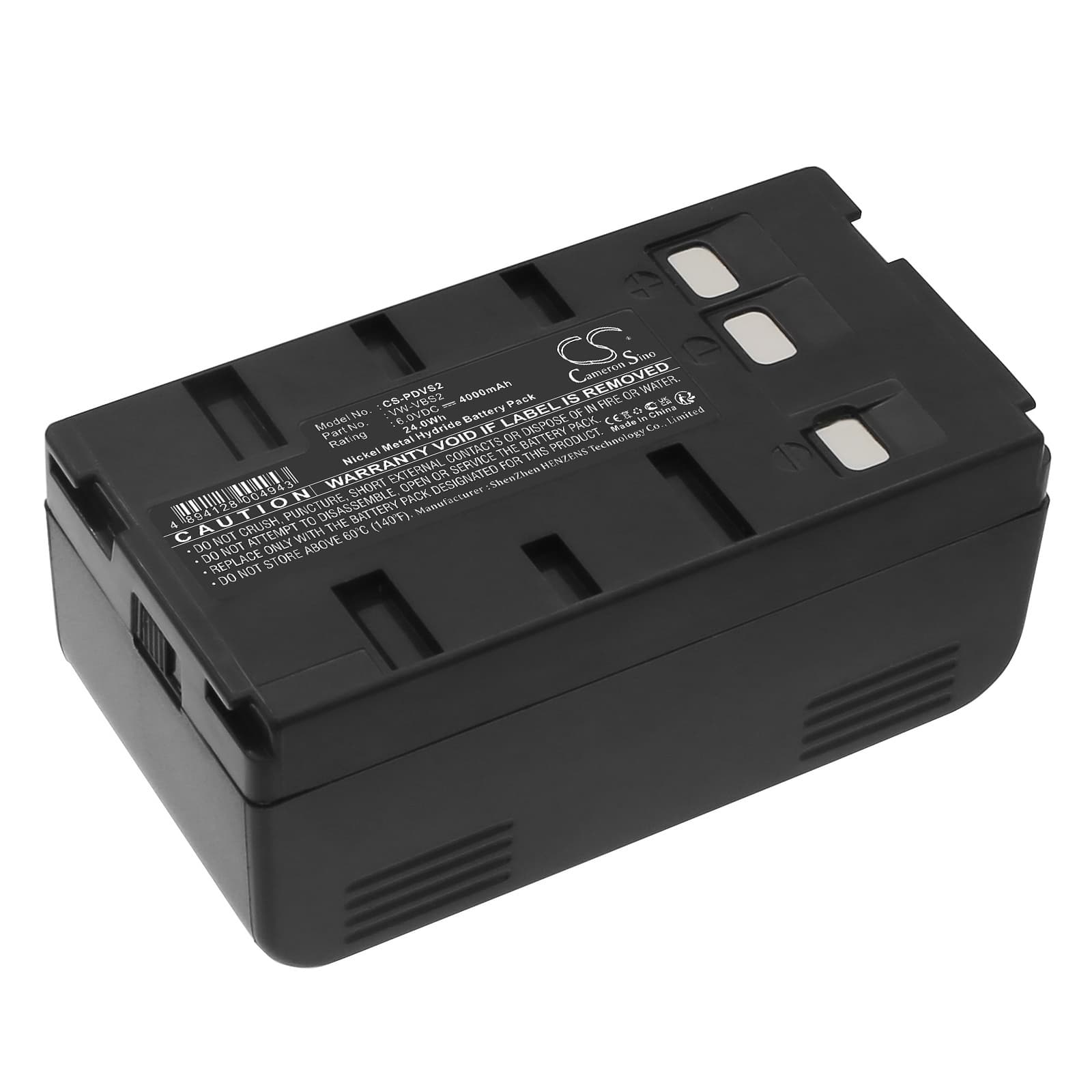

Panasonic NV-3CCD1 / NV-G1 Series — 6V Ni-MH Replacement Battery (VW-VBS2)
This is a 6V, 4000mAh Ni-MH replacement for the Panasonic VW-VBS2 and VW-VBS2E battery packs. It fits the NV-3CCD1, NV-61, NV-63, NV-G1, and over 130 additional Panasonic camcorder models that share the same voltage rail and connector housing. Capacity figures come from the product specification, not third-party estimates.
- NV-series camcorder platform fit: The NV-3CCD1, NV-61, NV-63, and NV-G1 all draw from the same 6V battery bay with an identical contact layout and no BMS authentication handshake — the camera accepts any cell that meets voltage and physical spec at that connector.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on NV-series hardware. The BMS did not trip on motor-start draw during tape transport, and cell voltage held within the expected Ni-MH discharge curve across the full cycle.
- First-cycle conditioning on Ni-MH cells: Ni-MH chemistry benefits from one full charge-to-discharge cycle before regular use. Do not interrupt the first charge early — Panasonic's OEM charger for this series uses a delta-V cutoff that needs the full cycle to calibrate correctly to the new cell.
Why Ni-MH voltage sag hits harder during tape transport on the NV series
The NV-3CCD1 and related models run a mechanical tape transport mechanism alongside the CCD sensor and recording circuits. That transport motor creates a brief current spike each time it engages — load that hits harder on Ni-MH than on Li-ion because Ni-MH internal resistance rises as the cell ages or sits unused. A new Ni-MH cell will handle this spike cleanly, but a degraded or deeply discharged cell can show a voltage dip that triggers the camera's low-battery cutoff mid-recording. Keeping the cell above 5.4V under load is the threshold to watch.
Battery indicator reading full then dropping to empty suddenly during recording
Ni-MH cells have a flatter discharge curve than Li-ion, which makes voltage-based fuel gauges less accurate with them. The NV series reads cell voltage to estimate charge level, so the indicator stays high across most of the discharge cycle and then drops sharply as voltage falls away near the end. This is a characteristic of the chemistry, not a fault with the cell. To get the most usable capacity before that drop, keep the cell fully charged before shooting and avoid storing it in a partially discharged state — partial storage accelerates voltage depression in Ni-MH.
