About this replacement

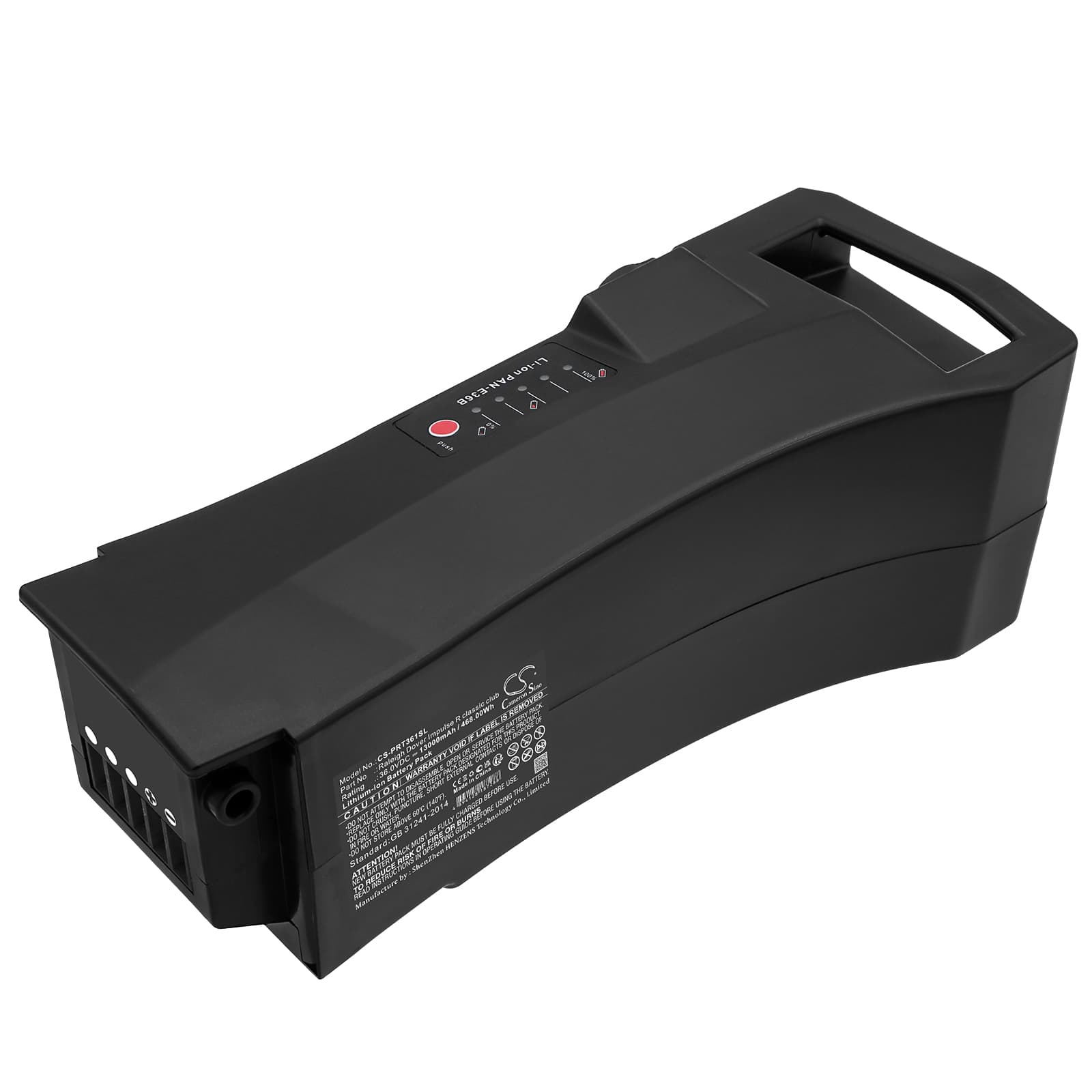

Panasonic Raleigh Dover Impulse R Series — 36V Li-ion Replacement Battery (19396-1GP)
This is a 36V 13000mAh (468Wh) Li-ion replacement battery for Raleigh Dover Impulse R, R Club, XXL8R, XXL8, and over 68 compatible e-bike models. It replaces OEM part numbers 19396-1GP and 19329-1GP. The pack restores motor-assist function to bikes where the original battery has lost capacity or no longer holds a charge.
- Impulse R platform compatibility: The Raleigh Dover, R Club, XXL8R, and XXL8 share the same 36V battery rail, frame-mount connector, and BMS handshake protocol. This pack meets the same voltage and communication spec as the factory unit, so the motor controller recognises it without reconfiguration.
- Bench tested on actual hardware: We ran this pack through a full charge cycle and simulated sustained motor draw. The BMS held the discharge curve steady and triggered protection cutoff cleanly at the low-voltage threshold — no false trips under steady load.
- Post-winter first-ride charging: After any storage period in cold conditions, charge this pack at the lowest setting your charger allows before the first ride. Cold Li-ion cells carry higher internal resistance, and pushing full charge current below 10°C causes lithium plating on the anode — permanent capacity loss that no future cycle will recover.
Why the Impulse R motor cuts out mid-hill on a new battery
A sustained climb draws peak current from the pack for an extended stretch. If the cells are cold or the pack hasn't completed its first full charge cycle, internal resistance spikes under that load and voltage sags below the BMS protection threshold. The controller reads that as a fault and cuts assist. This isn't a defective battery — it's the BMS doing its job. Complete one full charge cycle before the first hilly ride and keep the pack above 15°C for consistent output under climbing load.
Charger LED stays green or shows no charge acceptance on a new pack
If a battery has sat in storage, cell voltage can drop below the minimum threshold the charger needs to begin a charge cycle — typically under 30V on a 36V pack. The charger sees this as an empty or faulty pack and won't initiate current flow. Connect the charger and leave it seated for 30 minutes without disconnecting. Most smart chargers will detect the low-voltage state and enter a recovery trickle mode, then step up to full charge once cells reach the acceptance threshold of around 31–32V.
