About this replacement

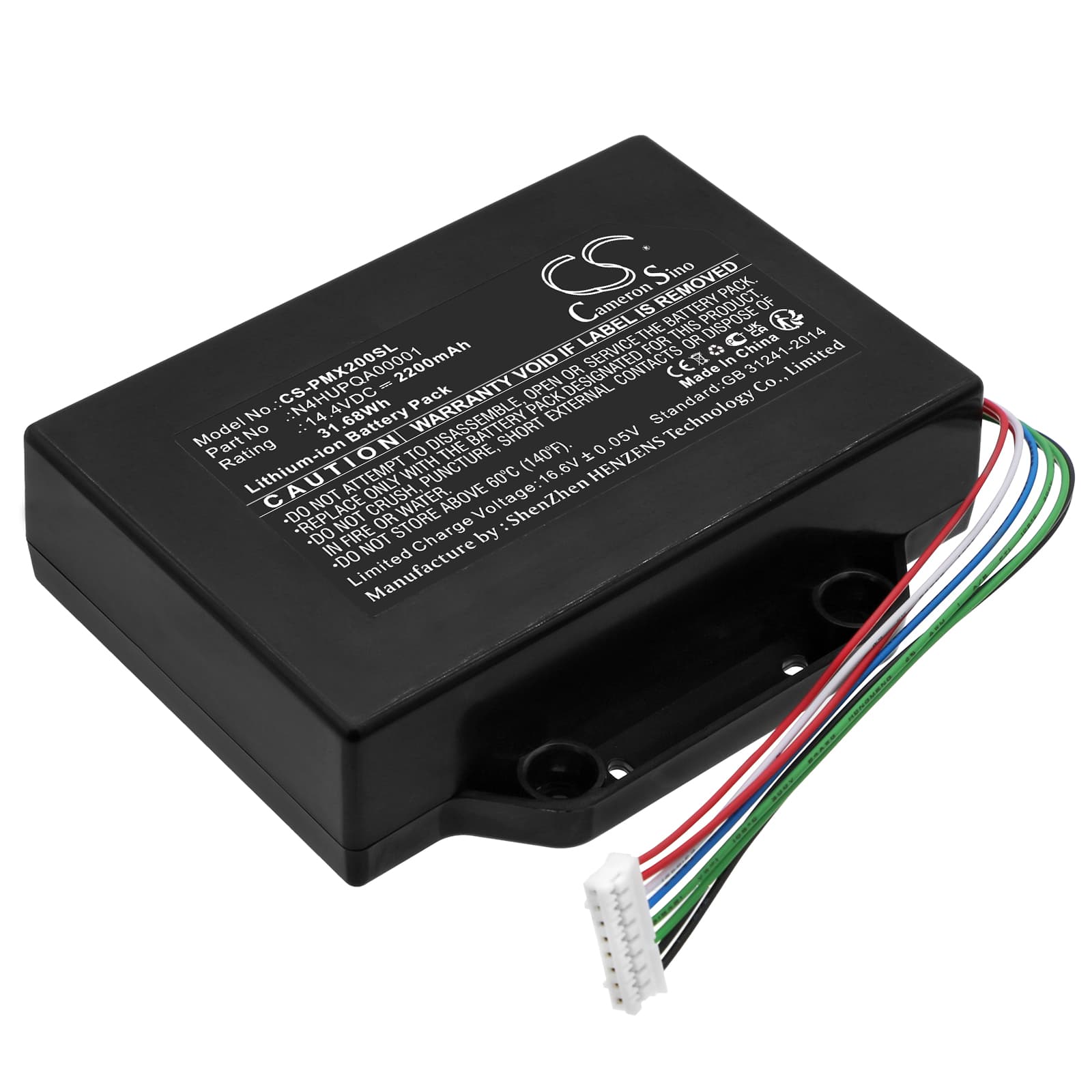

Panasonic SC-TMAX20 Series — 14.4V Li-ion Replacement Battery (N4HUPQA00001)
This 14.4V, 2200mAh Li-ion battery replaces the OEM pack in the Panasonic SC-TMAX20GSK and SC-TMAX20 portable Bluetooth speakers. It slots into the same bay as the original and connects to the same BMS handshake points. Capacity is rated at 31.68Wh, matching the original specification.
- SC-TMAX20 and SC-TMAX20GSK fit: Both models share the same 14.4V cell architecture, connector pinout, and BMS communication protocol — one pack covers either variant without modification.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the SC-TMAX20 platform. The BMS handshook on first connection, the fuel gauge calibrated correctly, and cell voltage held steady across the audio amplifier's draw range.
- Monthly discharge cycle for SC-TMAX20 users: Let the speaker run down below 20% at least once a month before recharging. These speakers typically sit on a shelf topped off constantly — that shallow-cycle pattern causes fuel gauge drift over time and accelerates cell degradation faster than normal use would.
Audio distorting before the battery indicator reaches empty on the SC-TMAX20
As cell voltage drops toward the lower end of the discharge curve, the amplifier stage loses headroom before the BMS triggers its low-battery cutoff. The result is clipping distortion at normal listening levels even though the indicator still shows charge remaining. This happens because the indicator reads cell voltage, not available current, and the amplifier needs both. If the original battery does this, its cells have aged past the point where they can sustain the current the amplifier demands at moderate volume.
Bluetooth signal dropping specifically at high volume on the SC-TMAX20
High volume on this speaker creates a combined current spike from both the amplifier and the Bluetooth radio simultaneously. A degraded cell cannot deliver enough current without its voltage sagging — that sag hits the radio's minimum operating voltage and drops the connection. The speaker may recover when volume drops, which confirms a current-delivery problem rather than a radio fault. Replacing the battery and confirming resting voltage reads at or above 15.8V on a full charge resolves this.
