About this replacement

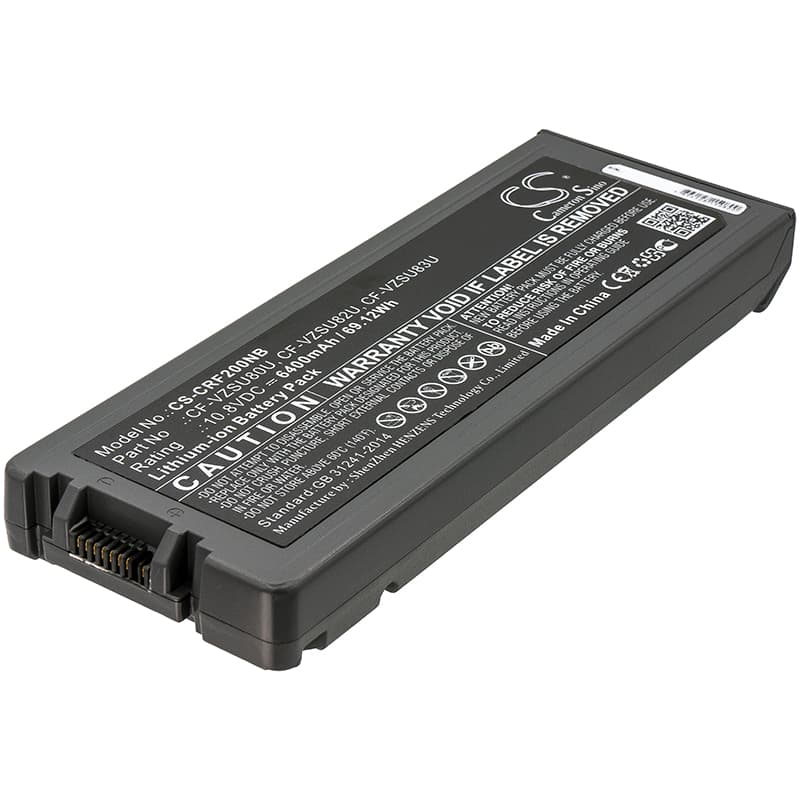

Panasonic Toughbook CF-C2 MK1 — 10.8V Li-ion Replacement Battery (CF-VZSU80U)
This 10.8V 6400mAh (69.12Wh) lithium-ion battery replaces the original cell in the Panasonic Toughbook CF-C2 MK1 and CF-C2. It fits using OEM part numbers CF-VZSU80U, CF-VZSU82U, and CF-VZSU83U. Install this when the original battery no longer holds a usable charge during field use.
- CF-C2 MK1 and CF-C2 fit: Both the MK1 and base CF-C2 share the same 10.8V three-cell battery rail, connector pinout, and BMS handshake protocol. All three OEM part numbers are electrically identical — Panasonic revised the part number across minor board revisions without changing the cell specification.
- Bench tested on actual hardware: We ran this cell on a CF-C2 MK1 unit under combined CPU and display load. The BMS held the charge curve cleanly through a full cycle and the protection circuit tripped correctly at low-cell cutoff with no false shutdowns during discharge.
- First-cycle conditioning on the CF-C2: After fitting the new cell, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning the CF-C2 BIOS flags after every cell swap.
CF-C2 BIOS reporting poor battery health immediately after replacement
The CF-C2 BIOS reads health data from the battery's EEPROM, which stores cycle count and rated capacity from the previous cell. A new replacement cell ships with default EEPROM values that do not match the BIOS's learned baseline from the old battery. This triggers a "battery deterioration" or "poor health" warning on first boot — it is not a fault in the replacement cell. Run one full discharge-to-hibernate then a full uninterrupted charge to 100%. The BIOS learn cycle rewrites the baseline against the new cell and the warning clears.
Toughbook CF-C2 shutting down abruptly at 20–30% charge shown
This is a voltage cliff failure, not a fuel gauge error. When the cell cannot sustain voltage under combined CPU plus display load, the BMS cuts power before the OS-reported percentage reaches zero. The fuel gauge IC in the CF-C2 calculates remaining capacity against an older cell profile, so the percentage shown at cutoff looks higher than expected. Run two to three full calibration cycles — full discharge to hibernate, full charge to 100% — so the fuel gauge IC can recalibrate its model against the new cell's actual voltage curve.
