About this replacement

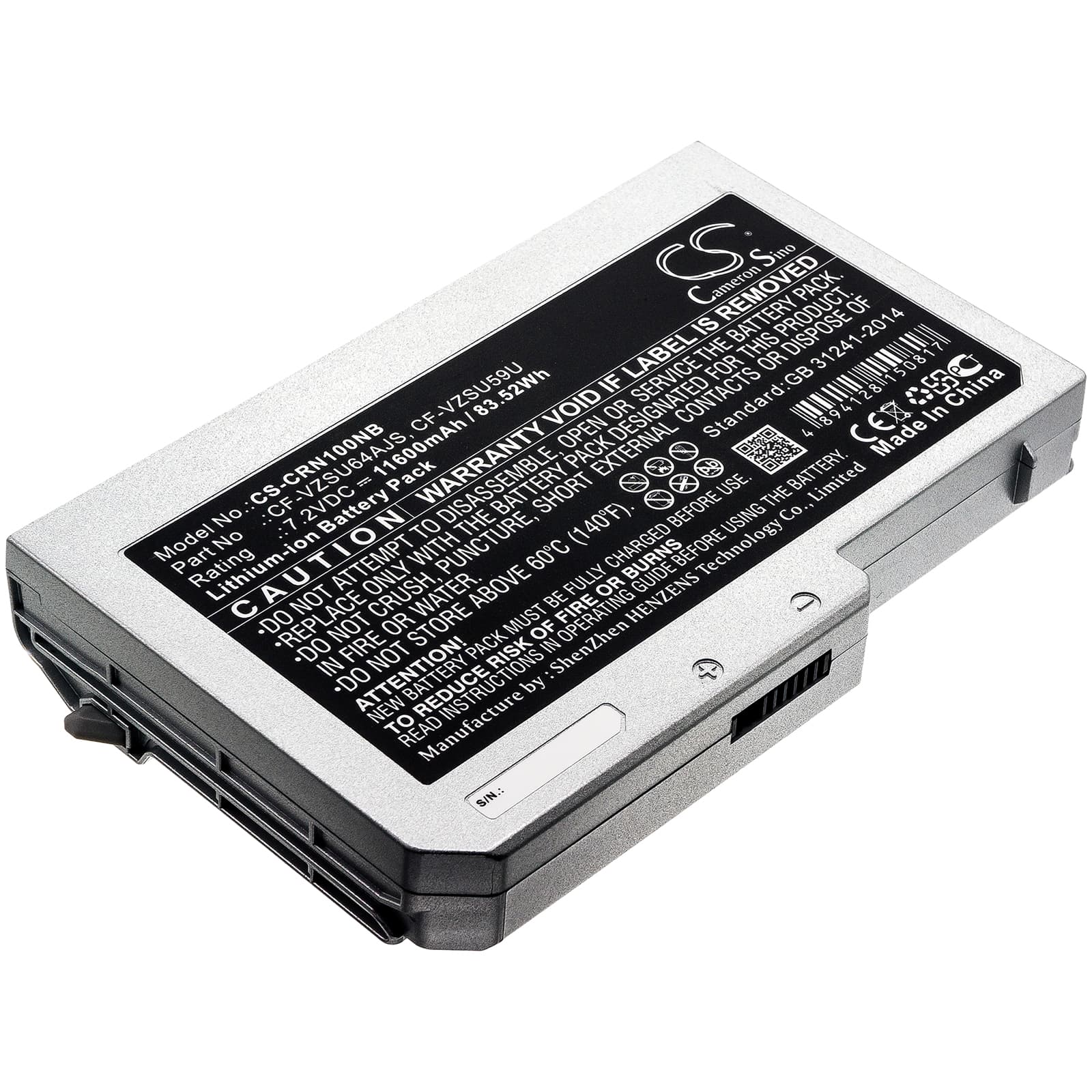

Panasonic Toughbook CF-N10 / CF-S10 — 7.2V Li-ion Replacement Battery (CF-VZSU59U)
This 7.2V, 11,600mAh (83.52Wh) lithium-ion battery replaces the CF-VZSU59U and its cross-reference part numbers for the Panasonic Toughbook CF-N10 and CF-S10 series. It also fits the Toughbook N10 and S10 variants that share the same battery bay and connector. Voltage and BMS handshake match the original Panasonic specification exactly.
- CF-N10 and CF-S10 platform compatibility: Both the N10 and S10 Toughbook lines share the same 7.2V battery rail, physical connector, and BMS communication protocol — which is why one cell covers the full platform. Swapping between models on the same desk? Same battery fits both.
- Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on a CF-N10 unit. The BMS handshook without errors, charge termination triggered correctly at capacity, and the BIOS reported cell status without throwing an unknown-device flag.
- Post-swap BIOS learn cycle: After fitting this cell, run one complete discharge to hibernate-cutoff, then charge uninterrupted to 100%. The CF-N10 BIOS uses a battery learn cycle tied to the new cell's EEPROM data — skipping this step leaves the fuel gauge reading inaccurate and can trigger a false "poor health" warning in Panasonic's battery utility.
BIOS reporting poor battery health immediately after replacing the CF-N10 cell
The Toughbook CF-N10 BIOS reads health data stored in the battery's EEPROM, not from live cell measurements alone. When a new cell arrives, that EEPROM carries rated values that haven't yet been matched to actual discharge curves on your specific unit. The BIOS compares stored cycle history and rated Wh against what it measures in real time — the mismatch triggers a health warning. Running two full discharge-to-hibernate and charge-to-100% cycles rewrites the learned data and clears the warning. After the second cycle, the BIOS health indicator should return to normal.
CF-N10 shuts down at 20–30% battery remaining shown on screen
This happens when the cell voltage drops below the BMS cutoff threshold under combined CPU and display load — even though the OS fuel gauge still shows charge remaining. The fuel gauge IC estimates percentage from voltage curves calibrated to the old cell; the new cell's voltage cliff under load sits at a slightly different point. The laptop cuts power at the hardware level before the OS catches up. Fix this by completing two full calibration cycles — full discharge to hibernate, then uninterrupted charge to 100% — so the fuel gauge IC maps the new cell's actual voltage-to-capacity curve. After calibration, shutdown should not occur above 5–8% reported charge.
