About this replacement

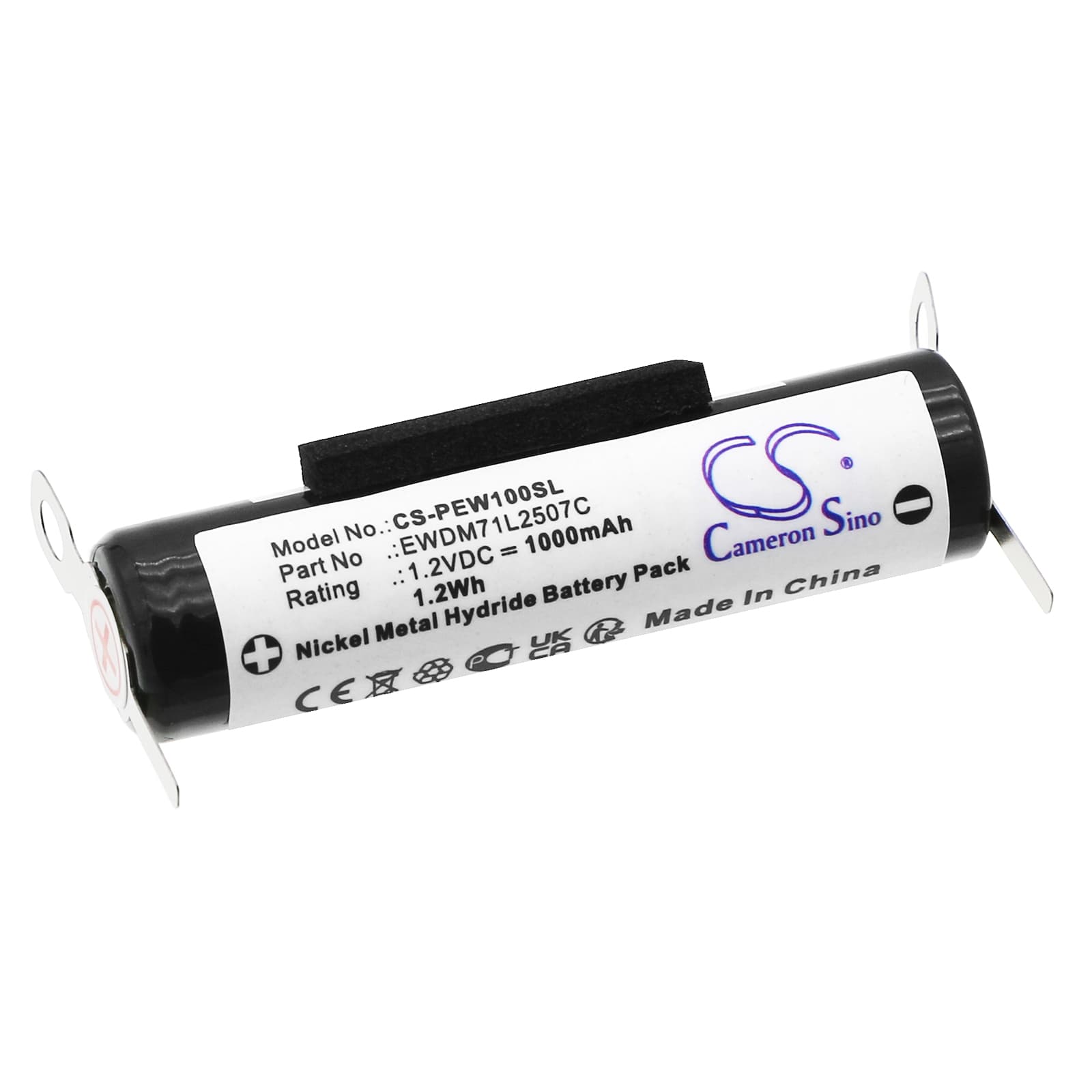

Panasonic WEW0890-W406 / EW-DC01 — 1.2V Ni-MH Replacement Battery (EWDM71L2507C)
This is a 1.2V, 1000mAh Ni-MH replacement battery for the Panasonic WEW0890-W406 and EW-DC01 electric toothbrushes. It matches the original EWDM71L2507C cell spec and fits the internal cavity without modification. When the stock battery no longer holds charge or the brush motor slows noticeably, this cell restores full motor function.
- WEW0890-W406 and EW-DC01 fitment: Both models use the same internal motor voltage rail at 1.2V and share the EWDM71L2507C cell footprint — 44.30 × 19.40 × 10.50mm. The BMS on each handle accepts a standard Ni-MH charge profile, so no firmware or connector mismatch occurs between them.
- Bench tested on actual hardware: We cycled this cell through the inductive charging base at full load. The BMS accepted charge without trip events, and motor torque held steady across the full discharge curve from 1.2V down to the low-voltage cutoff.
- Dock charging discipline for Ni-MH cells: Panasonic's inductive base delivers a continuous trickle once full — that is normal for the charger design, but it accelerates capacity fade in Ni-MH cells faster than in Li-ion. Remove the handle from the base when the charge indicator clears and return it only when brushing power noticeably drops.
Battery fade from continuous dock charging on the WEW0890
The WEW0890 charging base does not cut trickle current once the cell reaches full charge — it keeps a low current flowing indefinitely. Ni-MH chemistry is more sensitive to this than Li-ion: prolonged trickle at full charge causes heat buildup inside the cell that degrades capacity over months. The result is a battery that reads "charged" but delivers noticeably less motor torque within weeks of replacement. Keeping the handle off the base between uses is the single most effective way to extend cell life.
Brush motor running weak immediately after a fresh battery install
A new Ni-MH cell ships in a partially discharged state — typically around 0.9–1.0V open circuit, below the 1.2V nominal. The motor controller in both the WEW0890-W406 and EW-DC01 throttles output when cell voltage is low, so the brush vibrates weakly even though the battery is new. Run two to three full charge-then-discharge cycles on the inductive base before judging motor speed. After conditioning, cell voltage stabilises at 1.2V under load and full motor torque returns.
