About this replacement

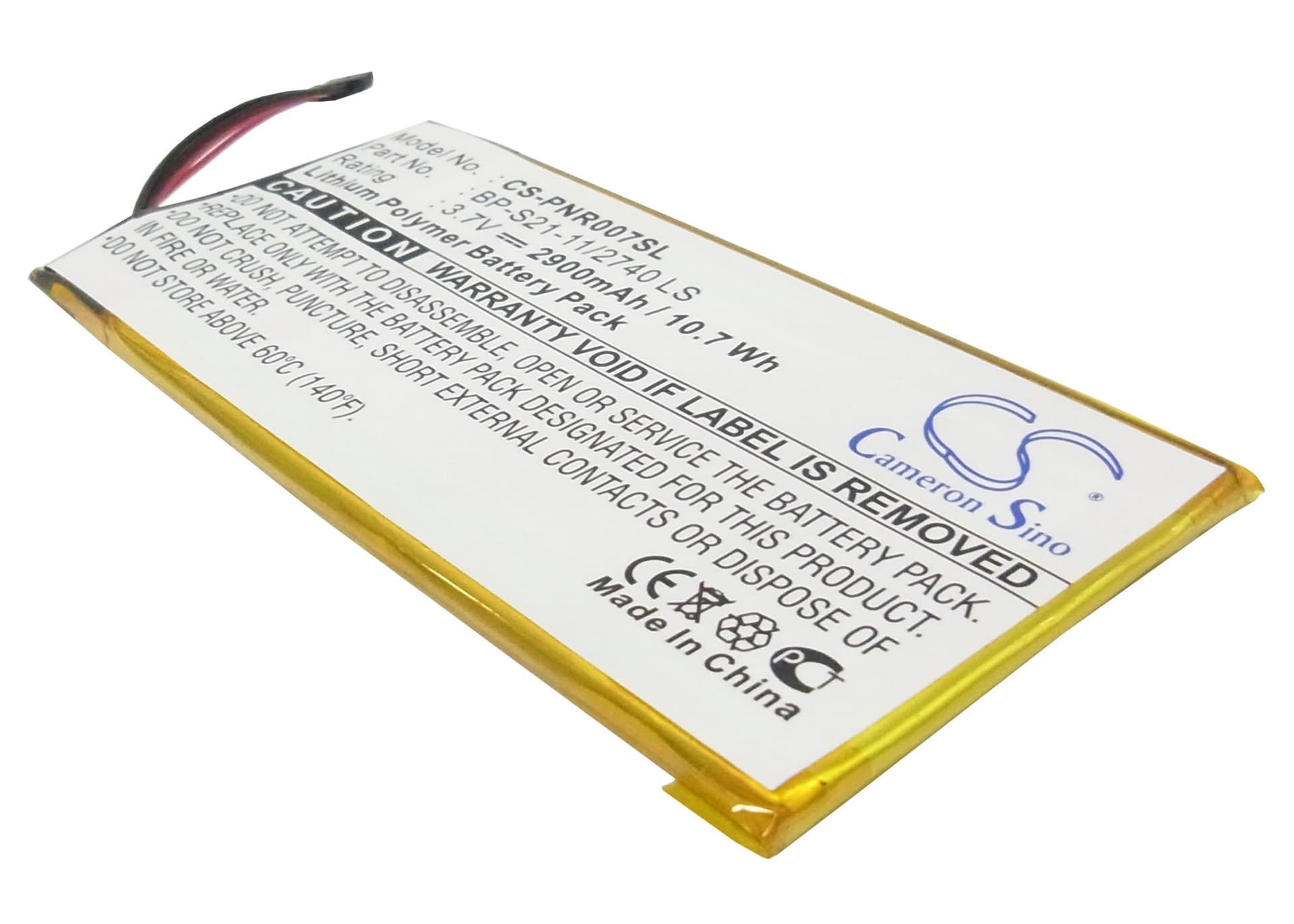

Pandigital Novel 7 / PRD07T20WBL1 — 3.7V Li-Polymer Replacement Battery (BP-S21-11/2740 LS)
This 3.7V, 2900mAh lithium-polymer cell is a direct replacement for the Pandigital Novel 7 e-reader (model PRD07T20WBL1). It fits the original battery bay using the same connector and matches the factory spec for voltage and capacity. OEM part number BP-S21-11/2740 LS.
- Novel 7 and PRD07T20WBL1 compatibility: Both model designations share the same battery bay geometry, connector pinout, and 3.7V supply rail. The BMS expects the same charge curve, so the replacement cell communicates with the firmware's charge controller without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Novel 7 platform. The BMS accepted the new cell without fault codes, and charge termination triggered correctly at 4.2V cutoff.
- Firmware calibration after cell swap: The Novel 7's battery percentage display recalibrates to a new cell only after a complete charge cycle. Connect the device via USB immediately after installation and charge to 100% before first boot — skipping this step causes the firmware to report inaccurate percentages for several cycles.
Why the Novel 7 won't boot after a battery replacement
Li-polymer cells drop to storage voltage — typically 3.6–3.7V — during warehousing. The Novel 7's boot sequence requires a minimum voltage threshold before it will attempt to power on. If the cell ships at or below that threshold, the device appears completely dead even with a brand-new battery installed. Connect the USB charger and leave the device alone for 10 minutes before pressing the power button. The charge controller will pre-condition the cell and bring it above boot voltage.
Battery percentage jumping around in the first few sessions
The Novel 7 firmware stores capacity reference points from the previous cell. After a swap, those reference points no longer match the new cell's discharge curve, so the percentage indicator jumps — dropping suddenly or reading higher than actual. This corrects itself after two to three full charge-to-discharge cycles. Run the device from 100% down to the low-battery warning without interrupting the cycle, then charge fully each time. By the third cycle, percentage readings stabilise.
