About this replacement

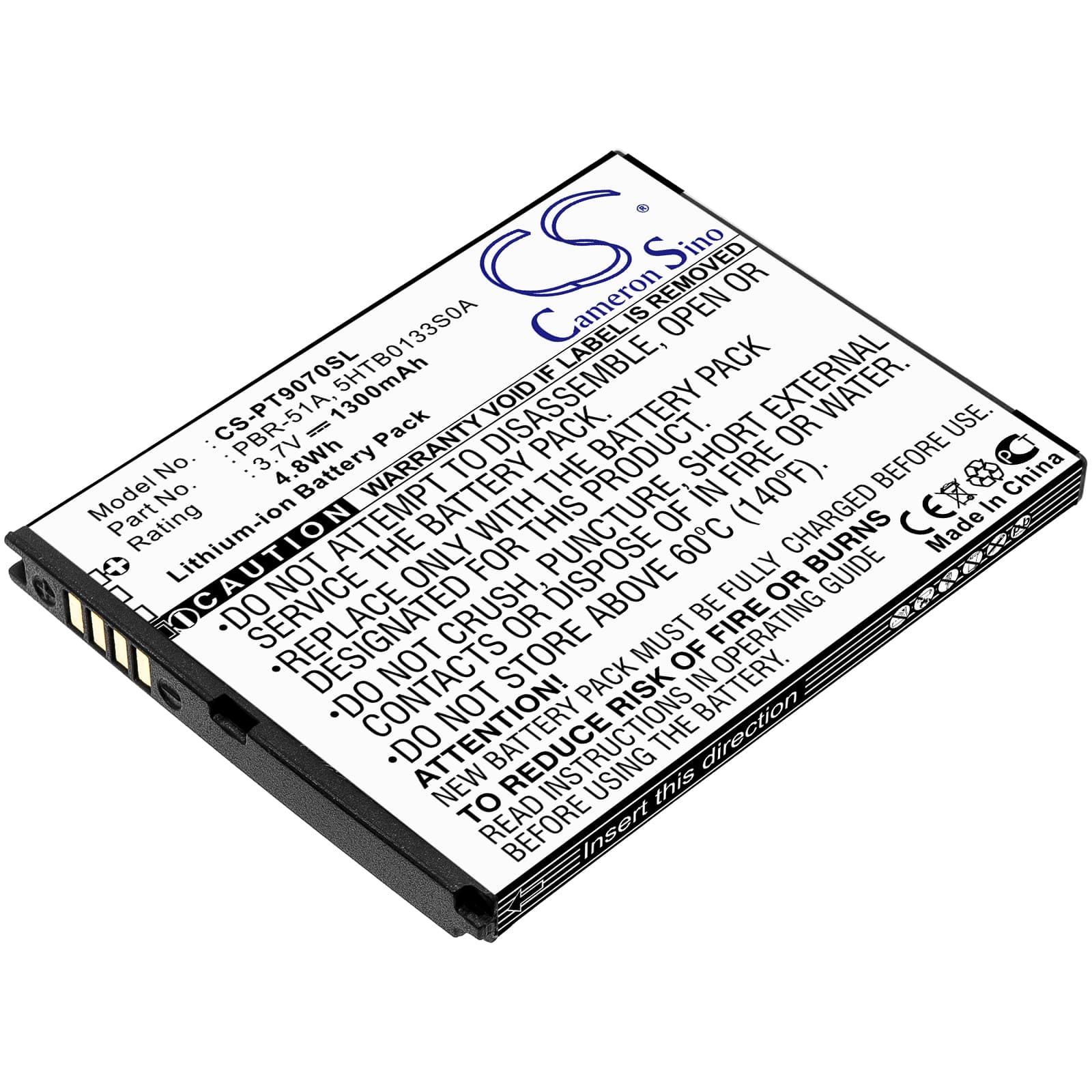

Pantech Burst P9070 — 3.7V Li-ion Replacement Battery (PBR-51A)
This is a 3.7V, 1300mAh Li-ion cell for the Pantech Burst (P9070) smartphone. It replaces OEM part PBR-51A and fits directly into the battery bay with the original connector alignment. Capacity is rated at 4.81Wh — matching the factory specification for this handset.
- Burst and P9070 compatibility: Both model designations refer to the same handset on the AT&T network. The battery compartment, connector pin layout, and BMS handshake are identical across both. One cell covers both listings.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the Burst platform. The BMS communicated correctly with the phone's charge IC, and the protection circuit tripped at the expected low-voltage cutoff without requiring a manual reset.
- Fuel gauge recalibration on first use: On first use after installation, disable any fast-charge mode and run one complete discharge-to-charge cycle. This lets the fuel gauge IC map its coulomb counter against the new cell's discharge curve before high-current charging is applied to an uncalibrated cell.
Sudden shutdown at 20–30% on the Pantech Burst after a cell swap
The Burst's fuel gauge IC retains the discharge curve from the old, degraded cell. When a new cell is installed, the IC's stored curve no longer matches the actual voltage slope of the fresh cell. Under modem transmit load or screen-on draw, voltage drops faster than the IC predicts, and the phone shuts down well above 0%. One full discharge-to-charge cycle forces the coulomb counter to re-learn the new cell's behaviour and clears the mismatch.
Pantech Burst won't power on after sitting in storage with a flat battery
Li-ion cells that drop below approximately 2.5V trigger a BMS lockout to prevent cell damage. The phone shows no response because the protection circuit blocks current flow until the cell voltage recovers to the recovery threshold. Connect the device to a wall charger — not a PC USB port — and leave it for 15–20 minutes without pressing the power button. Once the cell climbs above the BMS recovery floor, typically around 2.9–3.0V, the phone will resume normal charging and boot.
