About this replacement

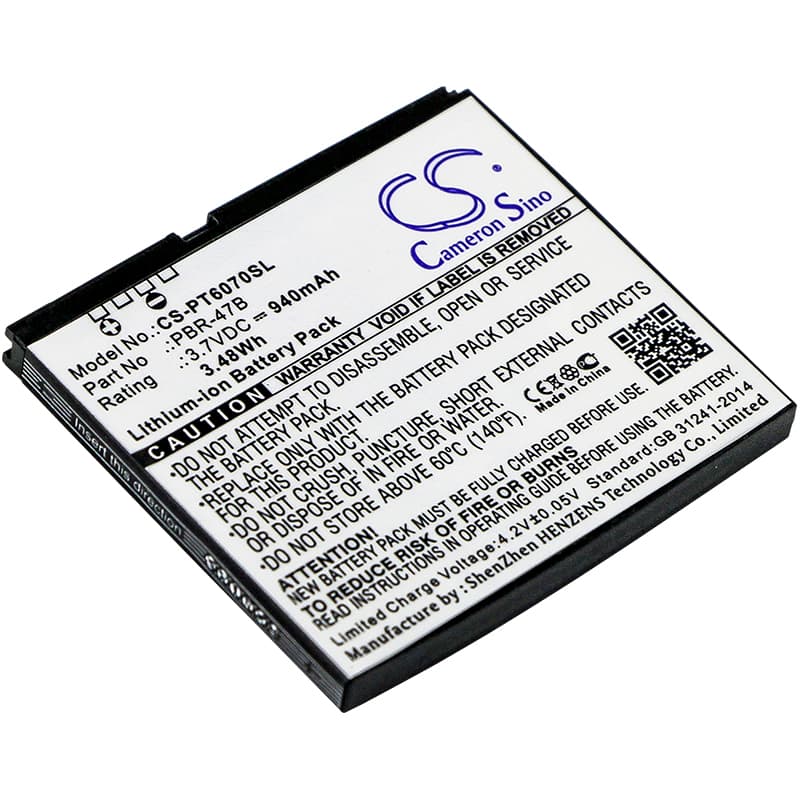

Pantech P6070 / Vybe — 3.7V Li-ion Replacement Battery (PBR-47B)
This is a 3.7V, 940mAh Li-ion battery built to fit the Pantech P6070 and Vybe smartphones. It replaces OEM part number PBR-47B when the original cell degrades and can no longer hold adequate charge. Dimensions are 51.45 × 46.10 × 3.96mm — confirm these against your existing battery before fitting.
- P6070 and Vybe compatibility: Both devices share the same battery bay dimensions, connector pinout, and BMS communication protocol — that is why a single cell covers both models. The PBR-47B form factor locks to the same retention clips on both chassis.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a P6070 unit, confirmed the BMS handshake completed without fault codes, and verified the protection circuit triggered correctly at the low-voltage cutoff threshold.
- Fuel gauge recalibration on first install: After fitting, run one full discharge to auto-off, then charge uninterrupted to 100% before normal use. This gives the phone's fuel gauge IC a clean reference curve against the new cell — skipping this step often causes erratic percentage readings for the first several cycles.
Why the P6070 reports wrong battery percentage after a cell swap
The P6070 uses a coulomb-counter fuel gauge IC that builds its charge model from the previous cell's discharge curve. When you fit a new cell, that stored model no longer matches the actual cell chemistry and capacity. The result is percentage readings that jump, stall, or freeze — most commonly between 40% and 70%. One complete discharge-to-shutdown followed by a full uninterrupted charge resets the IC's reference data and brings percentage accuracy back in line.
Sudden shutdown at 20–30% on the replacement cell
This happens when the modem or display draws a high current spike and the cell voltage collapses below the BMS cutoff threshold — even though the gauge is still showing charge remaining. A new cell straight from storage has slightly elevated internal impedance until it has been through a few cycles. The voltage sag under load hits the cutoff point earlier than the fuel gauge predicts. After two or three full charge-discharge cycles, internal impedance drops and the shutdowns stop; if they continue past five cycles, check that resting cell voltage sits above 3.6V after a full charge.
