Paramedic Defibrillator CUER5 / CU-ER1 — 12V Ni-MH Replacement Battery (MB253A)

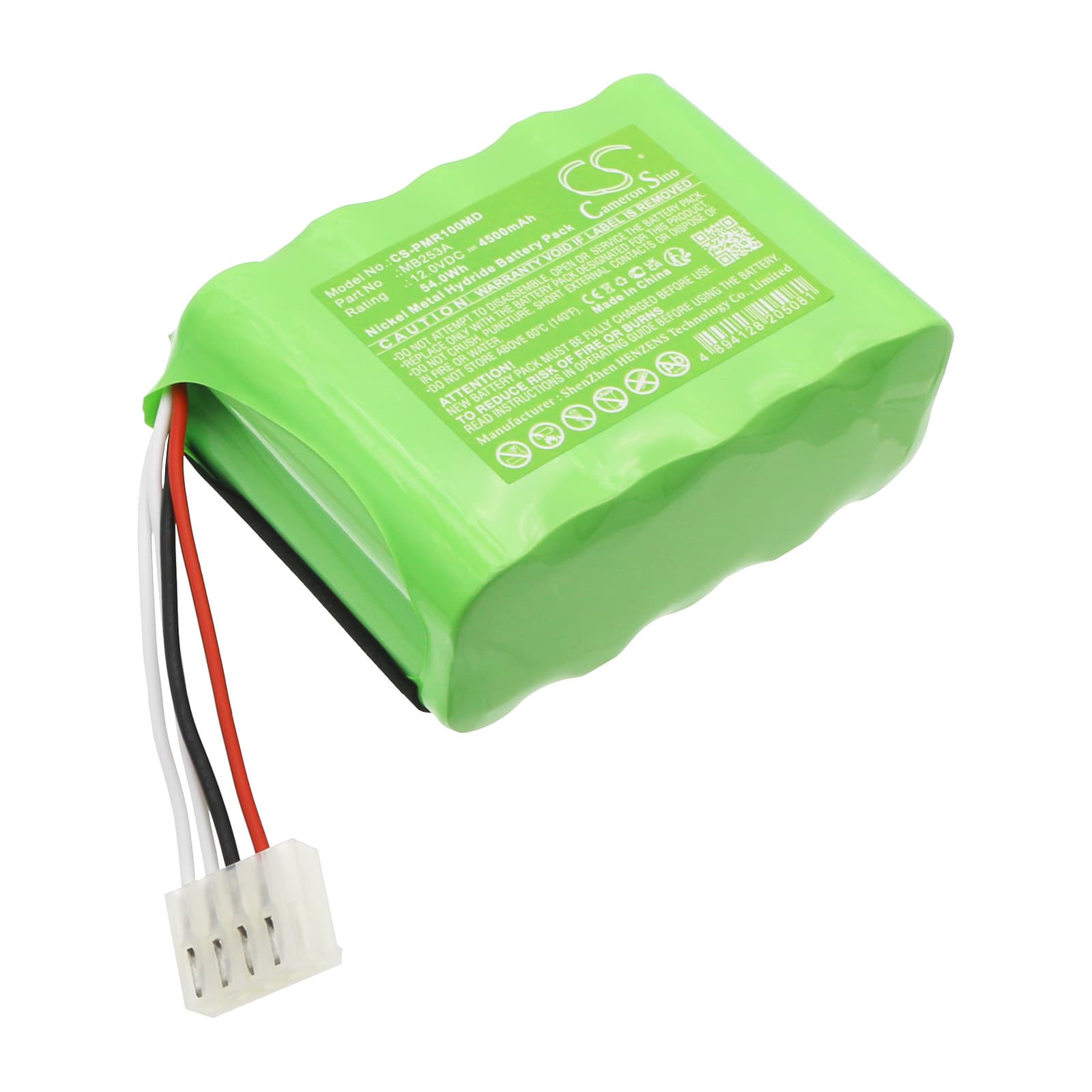

This is a 12V, 4500mAh Ni-MH replacement battery for the Paramedic Defibrillator CUER5 and CU-ER1 automated external defibrillators. It replaces OEM part numbers MB253A and 110615-O1. Capacity is rated at 54Wh.
- CUER5 and CU-ER1 compatibility: Both models share the same 12V battery bay, connector pinout, and BMS handshake protocol. The same cell pack addresses both units without modification.
- Bench tested on actual hardware: We ran charge and discharge cycles on this battery against the CUER5 BMS. The protection circuit handled charge termination correctly at full capacity, and the cell voltage held within spec under simulated defibrillation load pulses.
- Post-installation self-test requirement: After fitting this battery, allow the device to complete its full power-on self-test without interruption. The CUER5 BMS runs a chemistry verification at startup. Cutting power during this sequence causes a false battery fault that persists until the next clean reboot.
Low battery alarm triggering on the CUER5 after a confirmed full charge
The CUER5 BMS uses a stored threshold calibrated to OEM cell chemistry. A new replacement cell may have a slightly different internal resistance profile in its first few cycles. The BMS reads this as a marginal state-of-charge and trips the low battery alarm even when the cell is fully charged. Running one complete charge-discharge cycle allows the BMS to update its internal reference. After that cycle, the alarm clears and the device reports battery status correctly.
Device not completing boot sequence after battery sat in storage
Ni-MH cells self-discharge during storage. If the cell voltage drops below approximately 10.5V, the CUER5 BMS enters a protection state and blocks the boot sequence entirely — the device appears dead. Place the battery on charge before installing it. Most chargers will recover a Ni-MH cell from this state with a trickle pre-charge phase. Once the cell climbs above the BMS recovery threshold, the device will boot normally and complete its self-test.
