About this replacement

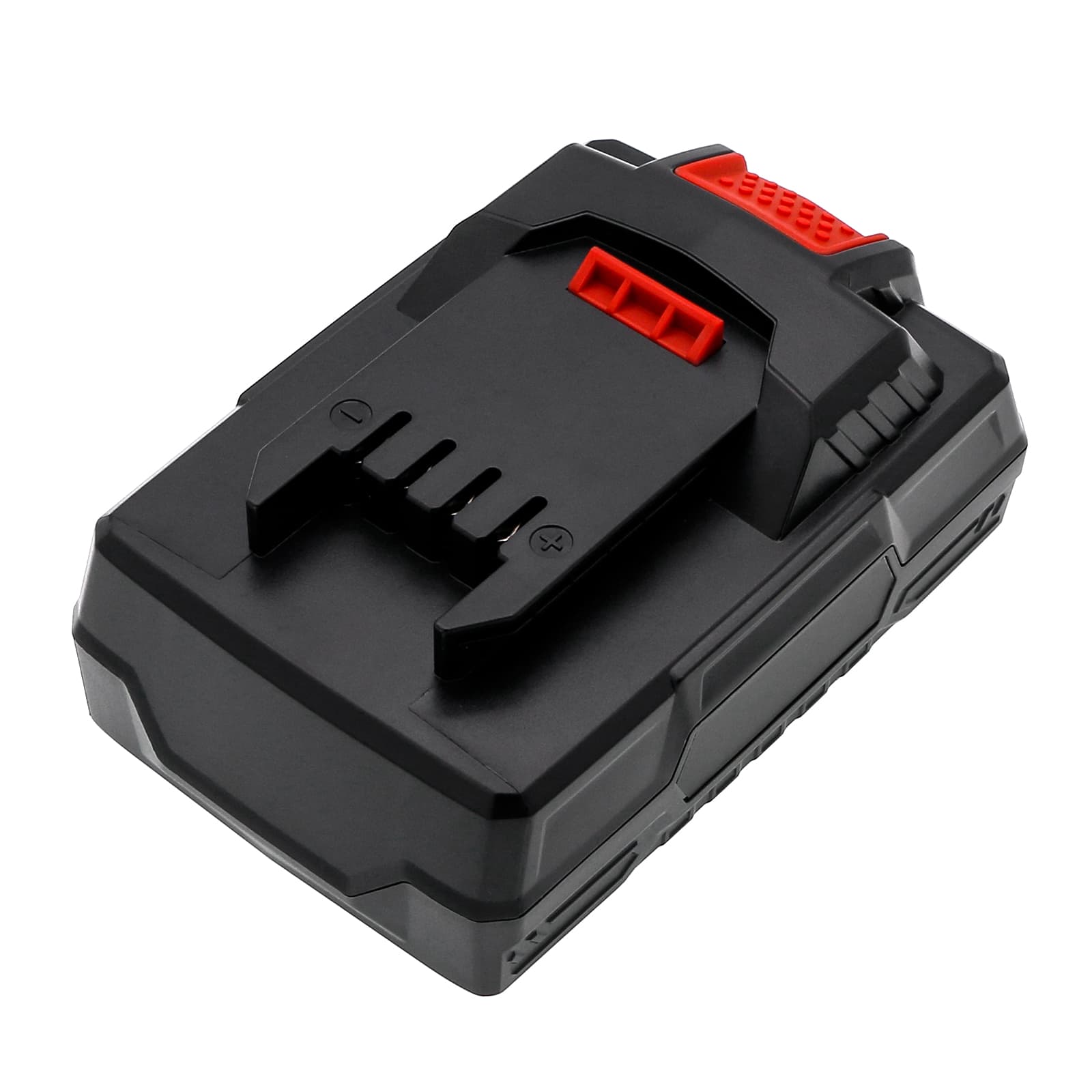

Parkside PSBSA 20-Li-C3 — 20V Li-ion Replacement Battery (PAP 20 A1)
This is a 20V 2000mAh (40Wh) Li-ion replacement battery for the Parkside PSBSA 20-Li-C3 and related 20V cordless tools. It also fits the PSBSA 20-Li A1, PSBSA 20-Li B2, and Parkside 20V 3-in-1 Cordless Impact Drill. OEM part numbers PAP 20 A1 and PAP 20 B3 confirm the match.
- PSBSA 20V platform fit: These models share a common 20V rail, slide-in connector, and BMS handshake protocol. The pack locks and communicates with the charger the same way across the entire PSBSA 20V family, so one battery moves between compatible tools without adjustment.
- Bench tested on actual hardware: We ran this pack through charge cycles on a Parkside 20V charger and monitored BMS response during trigger-pull inrush events. The protection circuit held across repeated motor-start spikes without tripping into fault mode.
- First-use load cycling: On first use, run the tool at half load for two cycles before applying full torque. This lets the BMS profile the motor's inrush current draw and calibrate its overcurrent thresholds before you put the tool under maximum demand.
BMS cutoff on drill motor-start inrush surge
When you pull the trigger hard on a cold or freshly installed battery, the motor draws a sharp current spike — often 3 to 5 times the running current — in the first milliseconds. If the BMS hasn't profiled that motor yet, it may read the spike as a fault and cut power instantly. This is not a dead battery. Let the pack rest for 30 seconds, then re-engage with a light trigger pull. After one or two soft-start cycles, the BMS sets a higher inrush threshold and the problem stops.
Charger blinking red on a new 20V pack after storage
Parkside 20V chargers reject packs where cell voltage has dropped below the acceptance floor — typically around 2.5V per cell. A pack that's been sitting in a warehouse or a cold garage can fall below that threshold without being damaged. The fix is to briefly connect the pack to the charger, remove it after 5 seconds, wait 10 seconds, and reconnect. Repeating this 3 to 4 times wakes the BMS and nudges cell voltage above the charger's acceptance floor. Once the charger sees a voltage it recognises, it enters normal charge mode.
