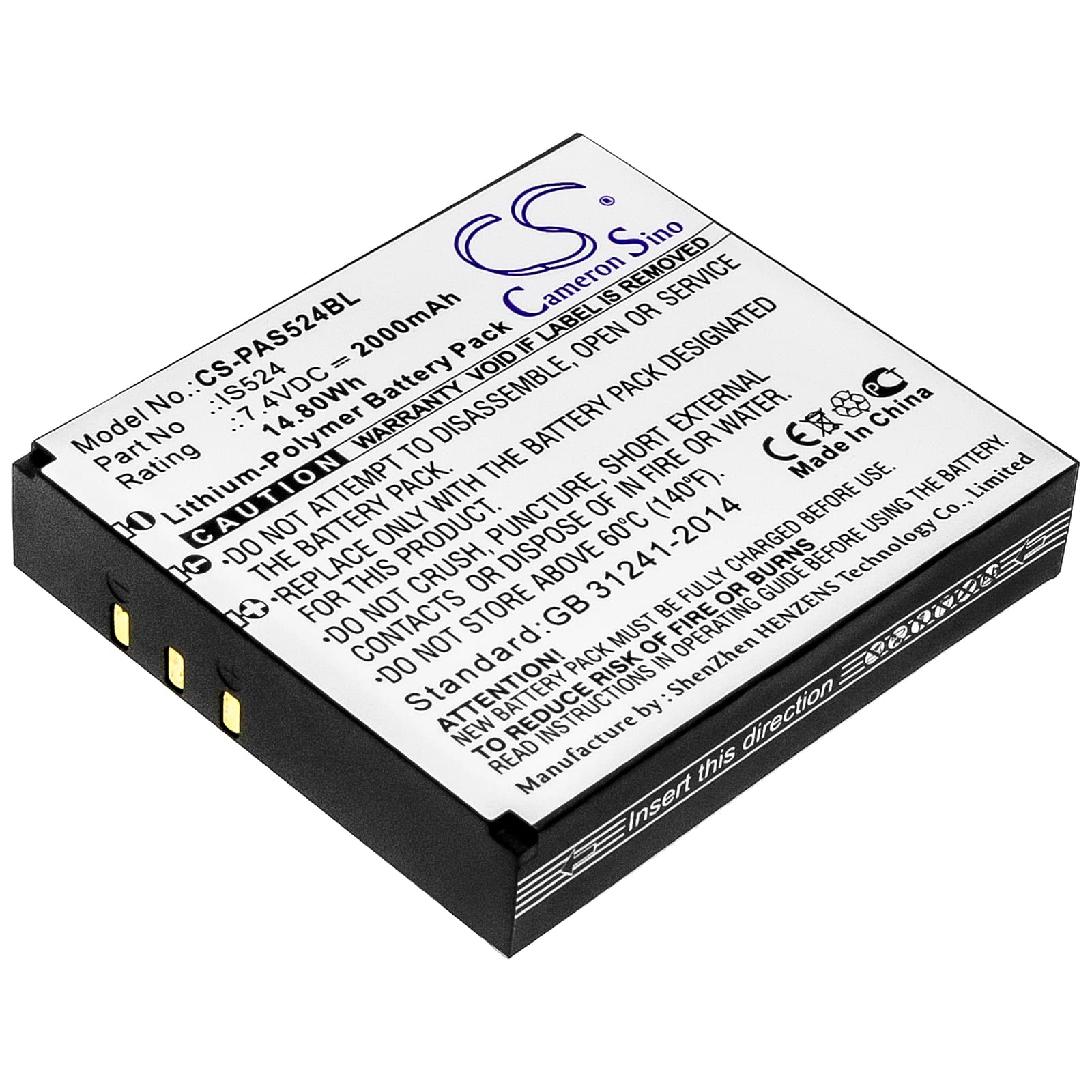

Pax IS524 / D210 — 7.4V Li-Polymer Replacement Battery (IS524)
This 7.4V 2000mAh Li-Polymer battery fits the Pax IS524 and D210 mobile payment terminals. It restores full operating capacity to terminals that no longer hold charge through a standard business shift. Capacity is 14.8Wh, matching the original cell specification.
- IS524 and D210 platform compatibility: Both terminals share the same battery bay, connector pinout, and BMS handshake protocol. The same cell works across both models without modification.
- Bench tested on actual hardware: We ran this battery through a full boot sequence on the IS524 platform. The BMS accepted the handshake on first power-on, charge IC entered standard CC-CV profile, and the protection circuit tripped correctly at the low-voltage cutoff threshold during discharge testing.
- First transaction cycle after install: Complete one full transaction cycle — including a receipt print — before deploying in a live environment. The terminal maps battery capacity during normal operation and requires at least one complete power cycle to calibrate the charge indicator correctly.
Terminal not completing PCI boot sequence after battery swap
The IS524 runs a PCI-compliant boot check that includes a BMS handshake before the OS fully loads. A freshly installed cell may sit at a partial state of charge that causes the terminal to stall or loop at the boot screen. This is not a fault with the battery — it is the terminal refusing to proceed until the BMS reports a stable voltage. Plug into the charging cradle for a full charge cycle before first boot, then power on. The boot sequence completes normally once the cell is above 7.2V.
Terminal reboots mid-transaction during receipt printing
The thermal receipt printer draws a short current spike — often 1.5A or more — at the moment printing begins. If the replacement cell has not completed its first full charge, the BMS may interpret this spike as an overcurrent event and trip the protection circuit, causing an instant reboot. This looks like a software crash but is a hardware-level battery cutoff. Charge the battery fully before the first shift, confirm the terminal shows 100% on the status bar, then retest with a print job.
