About this replacement

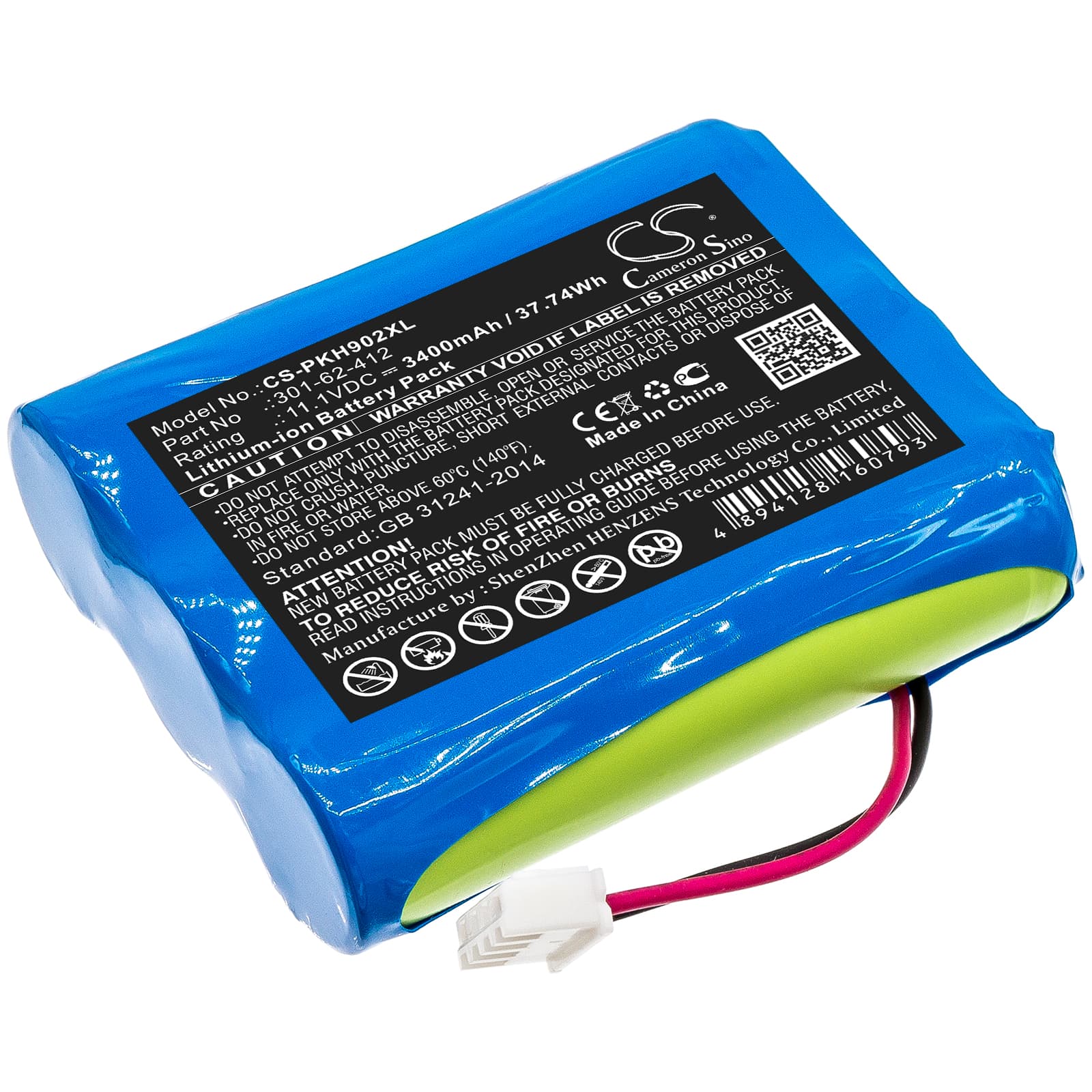

Peaktech P 9020 / P9021 / P9020A — 11.1V Li-ion Replacement Battery (301-62-412)
This 11.1V, 3400mAh Li-ion battery is a direct replacement for the Peaktech P 9020, P9021, and P9020A digital multimeters. It slots into the same battery bay as the factory pack and communicates with the instrument's onboard BMS over the same connector pinout. Capacity is rated at 37.74Wh.
- P 9020 / P9021 / P9020A compatibility: All three models share the same 11.1V three-cell architecture, battery bay dimensions, and connector layout. The BMS handshake protocol is identical across the range, so one pack covers all three without modification.
- Bench tested on actual hardware: We ran this pack on the P 9020 platform and confirmed the BMS accepted the new cells without fault codes. Probe power-up current spikes — which briefly exceed resting draw — did not trip the BMS cutoff threshold during testing.
- First-use calibration step: After installing, run a full calibration cycle through the instrument menu before taking it to the field. The P 9020 maps battery state during calibration; skipping this step causes the low-battery warning to fire early and incorrectly on the first measurement session.
BMS lockout after the P 9020 sat unused in a carry case for months
Li-ion cells self-discharge at roughly 1–2% per month at room temperature. If the instrument sat long enough, the pack can drop below the BMS recovery threshold — typically around 2.5V per cell — and the protection circuit opens, cutting output entirely. The charger then sees an open circuit and refuses to begin a charge cycle. To recover, use a Li-ion charger with a trickle or recovery mode that can push a small current into the pack until cell voltage climbs above the BMS wake threshold, then switch to normal charge.
Readings drifting or resetting mid-session during sustained logging
Sustained sensor and display load draws more current than a single-point measurement, which increases internal resistance losses as the pack ages. This causes a momentary voltage dropout that the instrument interprets as a low-power event, triggering a soft reset or measurement abort. The symptom appears even when the battery indicator shows 40–60%. Check pack terminal voltage under load with a second meter — if it dips below 10.0V during active logging, the pack has degraded and needs replacement.
