About this replacement

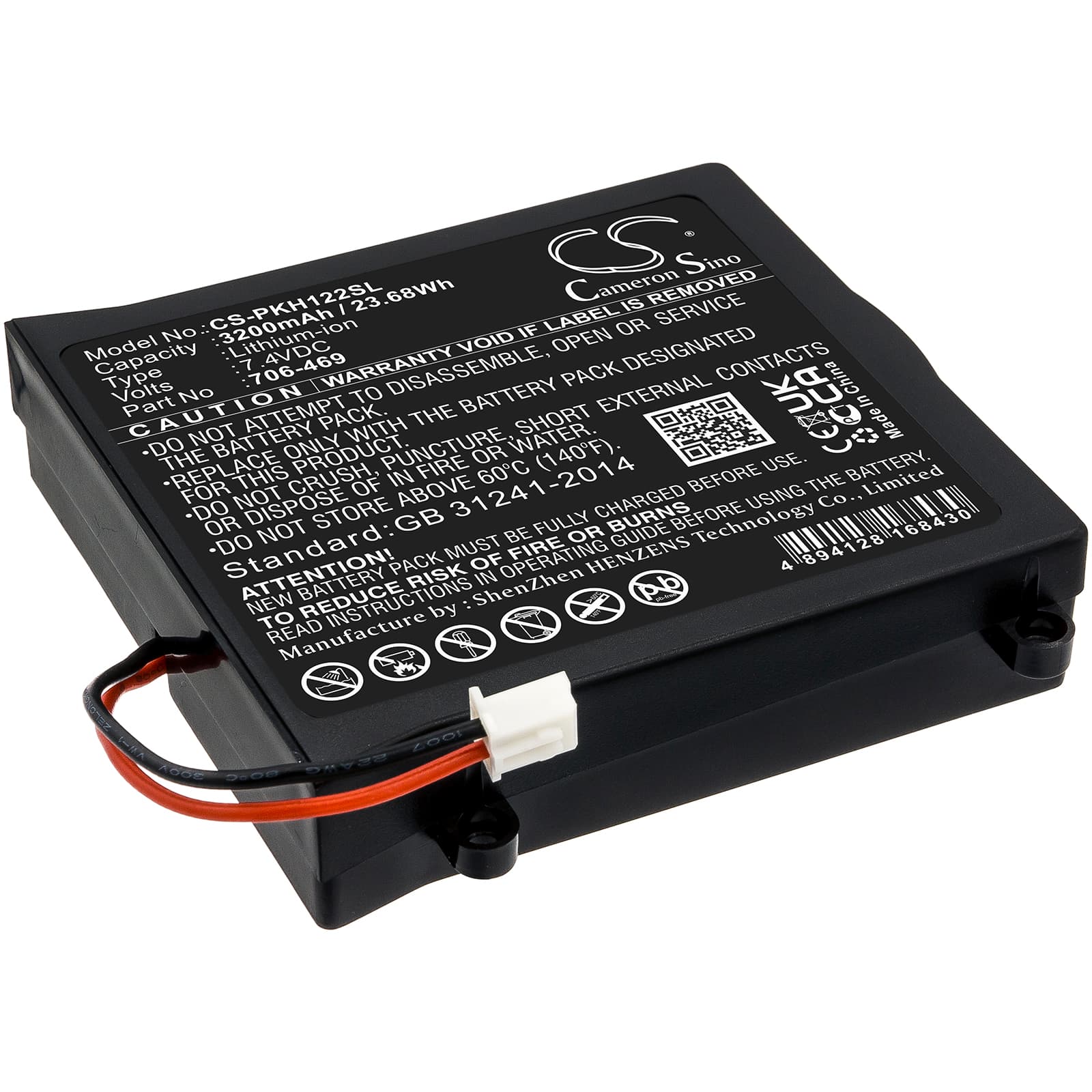

Peaktech P1195 / P1205 / P1220 — 7.4V Li-ion Replacement Battery (706-469)
This 7.4V 3200mAh Li-ion battery replaces OEM part 706-469 in the Peaktech P1195, P1205, and P1220 digital multimeters. These are handheld test instruments used for voltage, current, and resistance measurement in fieldwork and maintenance. Same voltage rail, same connector, same BMS handshake as the original pack.
- P1195, P1205, and P1220 compatibility: All three models share the same 7.4V battery bay, connector pinout, and BMS communication protocol — one pack covers the full series without modification.
- Bench tested on actual hardware: We cycled this pack through the multimeter's probe initialisation sequence, where the instrument draws a brief current spike to power the input stage. The BMS held the output rail steady without tripping into protection mode.
- First-use calibration step: After fitting this pack, run a full calibration cycle through the instrument menu before taking it into the field. The P1195 series maps battery state during calibration — skipping this step causes premature low-battery warnings on the first measurement session.
P1195 shutting down mid-measurement with battery showing charged
The P1195's input stage draws a short current spike each time a probe measurement initialises — particularly on resistance and continuity modes. If the cell's internal resistance has climbed with age, that spike causes a momentary voltage sag that the BMS reads as an under-voltage fault, cutting output before the measurement completes. A worn cell showing 7.2V at rest can still collapse to below the 6.0V BMS cutoff threshold under that load pulse. Replacing the pack resolves this; the new cells handle the transient without the sag.
Instrument not recognising the new pack after storage
If the multimeter sat unused for several months with the old pack inside, deep self-discharge may have pulled the cell voltage below the BMS recovery threshold — typically around 5.5V for a 7.4V Li-ion pack. When a new pack is fitted after this, the BMS on some units enters a protection latch that prevents the instrument from powering on. Connect the charger first and leave it for 20 minutes before pressing the power button; this allows the protection circuit to re-initialise at a safe voltage before the instrument requests full current.
