About this replacement

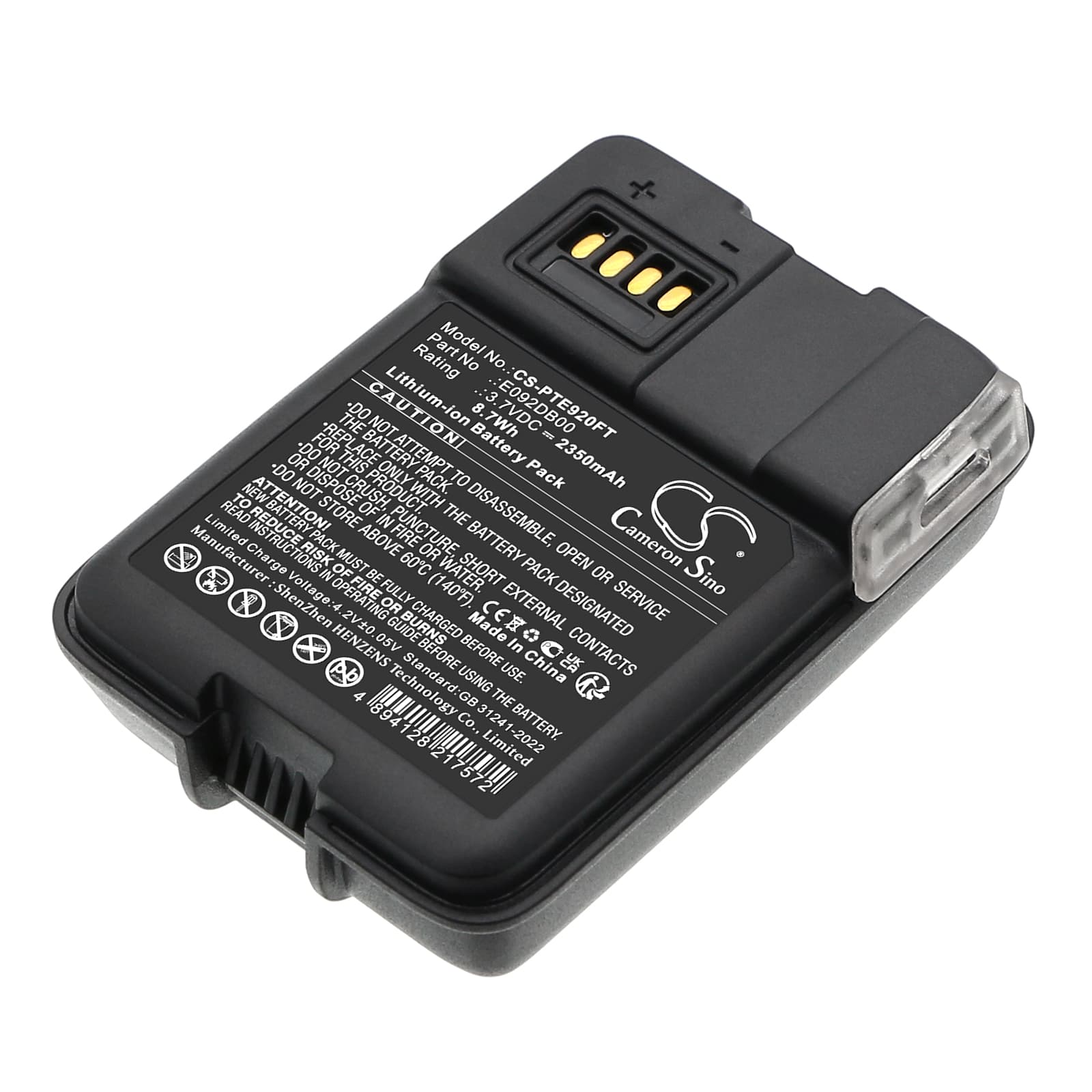

Petzl Swift RL / Swift RL Pro — 3.7V Li-ion Replacement Battery (E092DB00)
This 3.7V, 2350mAh Li-ion battery replaces the OEM E092DB00 cell in the Petzl Swift RL and Swift RL Pro headlamps. It fits the internal battery bay directly, restoring full output across all brightness modes. Capacity is 8.7Wh, matching the original specification.
- Swift RL and Swift RL Pro compatibility: Both headlamp variants share the same battery bay geometry, connector orientation, and BMS handshake protocol — one cell covers both. The driver circuit in each model reads cell voltage and temperature data from the same contact points, so no firmware mismatch occurs.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge passes on the Swift RL driver board. The BMS accepted charge termination cleanly at 4.2V, and the protection circuit tripped correctly at the low-voltage cutoff without allowing the cell to drop below safe levels.
- Reactive lighting mode and cell voltage: The Swift RL's reactive lighting sensor adjusts output based on ambient light — in low-ambient environments it holds maximum output longer, drawing harder on the cell. Keep the headlamp set to reactive mode only when needed; sustained max output accelerates voltage sag faster than manual mode at the same nominal brightness.
Swift RL stepping down brightness before the battery indicator reads low
The Swift RL driver uses brownout protection that monitors cell voltage in real time, not just state-of-charge percentage. When the cell voltage sags under high-current draw — even briefly — the driver steps output down to protect the circuit before the LED indicator registers low battery. A degraded or partially discharged cell hits this sag threshold earlier in its discharge curve. If your headlamp dims unexpectedly during sustained max output, the cell is likely no longer holding voltage above the driver's protection threshold under load — typically around 3.4–3.5V.
Swift RL flickering or cycling through modes at the end of a charge cycle
Mode-cycling at low charge is the driver's brownout protection triggering repeatedly — the cell voltage drops below threshold, the driver cuts power, the load drops, voltage briefly recovers, and the cycle repeats. This is distinct from a normal step-down and usually means the cell can no longer sustain the current draw at that output level. Switching to a lower manual brightness mode stops the cycling immediately because the current draw falls within what the weakened cell can still deliver. If cycling begins well before the indicator shows empty, replace the cell — a healthy E092DB00 should hold stable output until the driver performs a single clean step-down near 3.3V under load.
