About this replacement

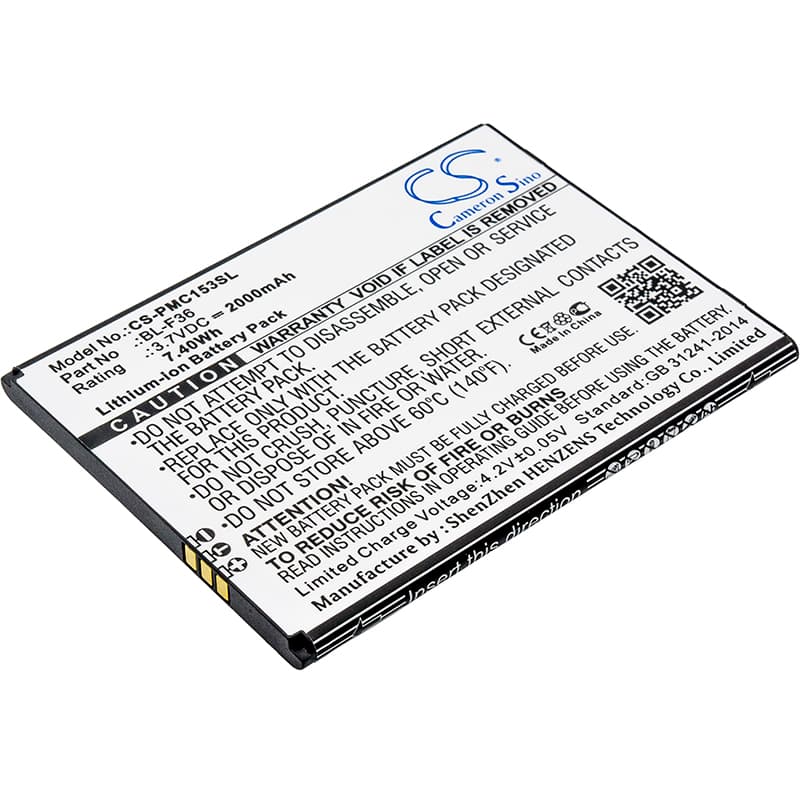

PHICOMM C1530L — 3.7V Li-ion Replacement Battery (BL-F36)
This is a 3.7V, 2000mAh Li-ion replacement battery for the PHICOMM C1530L smartphone. It uses OEM part number BL-F36 and fits directly into the C1530L rear-access battery bay. Capacity matches the original cell at 2000mAh (7.4Wh).
- C1530L fit confirmation: The BL-F36 battery format is specific to the C1530L's compact chassis — 75.56 x 58.00 x 4.44mm. The connector tab alignment and cell thickness are matched to the original bay geometry. No adapter or modification is needed.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the C1530L platform. The BMS handshake completed without error on the first connection, and charge termination triggered correctly at 4.2V. The fuel gauge IC accepted the new cell without tripping a fault state.
- First-cycle calibration tip: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated cell. Skip this step and percentage readings will drift until the gauge self-corrects.
Why the C1530L reports wrong battery percentage after a cell swap
The C1530L uses a fuel gauge IC that tracks charge state against a learned discharge curve from the previous cell. When a new cell goes in, the stored curve no longer matches the actual cell chemistry — so reported percentage drifts from real charge state. This shows up as the phone jumping from 40% to 15% in minutes, or showing 100% when the cell is not fully charged. One full discharge-to-shutdown followed by a slow charge to 100% forces the gauge IC to relearn the curve. After that cycle, percentage accuracy returns to normal.
Sudden shutdown at 20–30% on the replacement cell
This is a voltage cliff failure — not a capacity issue. Under peak modem or display load, the cell voltage drops sharply below the BMS cutoff threshold before the gauge reaches 0%. The C1530L's protection circuit trips the cell offline to prevent over-discharge damage, which the OS reads as a sudden shutdown. It happens more often in the first few cycles before the fuel gauge IC recalibrates to the new cell. Run two full discharge-charge cycles to let the gauge IC align its cutoff prediction with the actual cell voltage behaviour.
