About this replacement

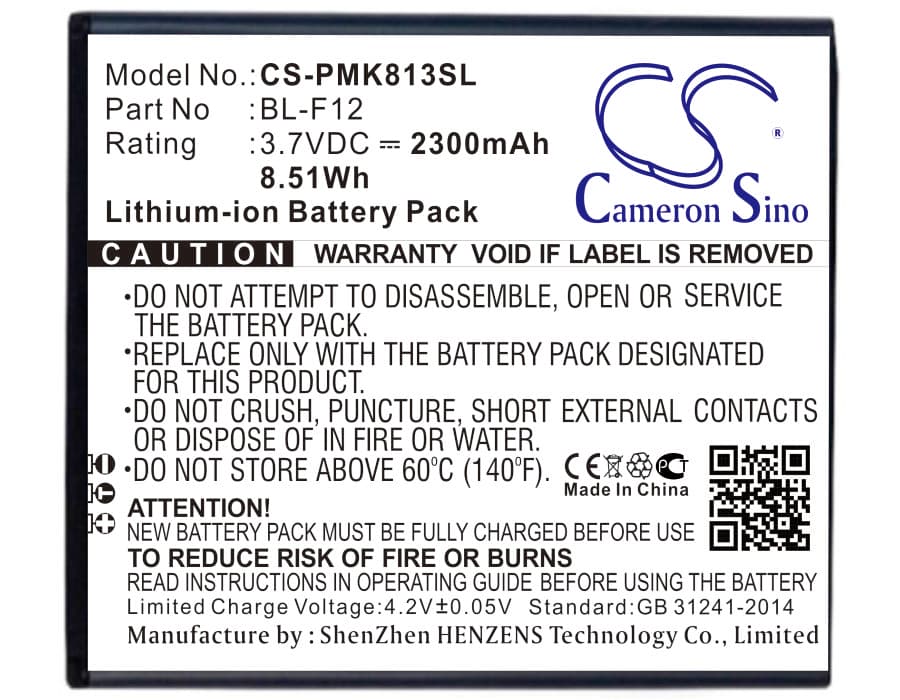

PHICOMM i813w / i813 Dual SIM — 3.7V Li-ion Replacement Battery (BL-F12)
This is a 3.7V, 2300mAh (8.51Wh) Li-ion replacement cell for the PHICOMM i813w and i813 Dual SIM smartphones. It slots into the same bay as the original BL-F12 and restores normal phone operation when the original cell has degraded or failed. Voltage and connector match the stock battery exactly.
- i813w and i813 Dual SIM compatibility: Both variants share the same battery bay dimensions, voltage rail, and BMS communication protocol, which is why they run the same BL-F12 cell. The connector is keyed the same way on both boards, so one replacement covers either model without modification.
- Bench tested on actual hardware: We cycled this cell through a full discharge and charge sequence and monitored the BMS handshake with the charge IC. The protection circuit responded correctly to overvoltage and cutoff events, and the cell held stable voltage under simulated modem and screen draw.
- First-cycle fast charge caution: On the first use after installation, disable fast charging and run one complete discharge-charge cycle at standard rate. The fuel gauge IC on the i813w calibrates its coulomb counter against the cell's discharge curve — fast charging before that calibration step can push high current into an uncalibrated cell and skew percentage readings for weeks.
Sudden shutdown at 20–30% on the i813w after a cell swap
This is a voltage cliff issue, not a capacity fault. When the modem fires a transmission burst or the screen runs at full brightness, the new cell is hit with a current spike it cannot sustain at that state of charge. Voltage drops sharply below the BMS cutoff threshold, and the phone shuts off even though the fuel gauge still shows charge remaining. One full discharge-charge cycle at standard rate lets the gauge IC remap its voltage-to-percentage curve against the new cell and pushes the cutoff point lower where it belongs.
Phone not powering on after the BL-F12 sat in storage
Li-ion cells that drop below roughly 2.5V trigger a BMS lockout to prevent charging a critically depleted cell at full current. If the replacement battery was stored discharged or the old cell ran flat before removal, the phone may show nothing on screen and refuse to charge. Connect the phone to a wall adapter — not a PC port — and leave it for 15–20 minutes without pressing anything. The charge IC will trickle current into the cell at a low rate until voltage climbs above the BMS recovery threshold, typically around 2.9V, at which point normal charging resumes.
