About this replacement

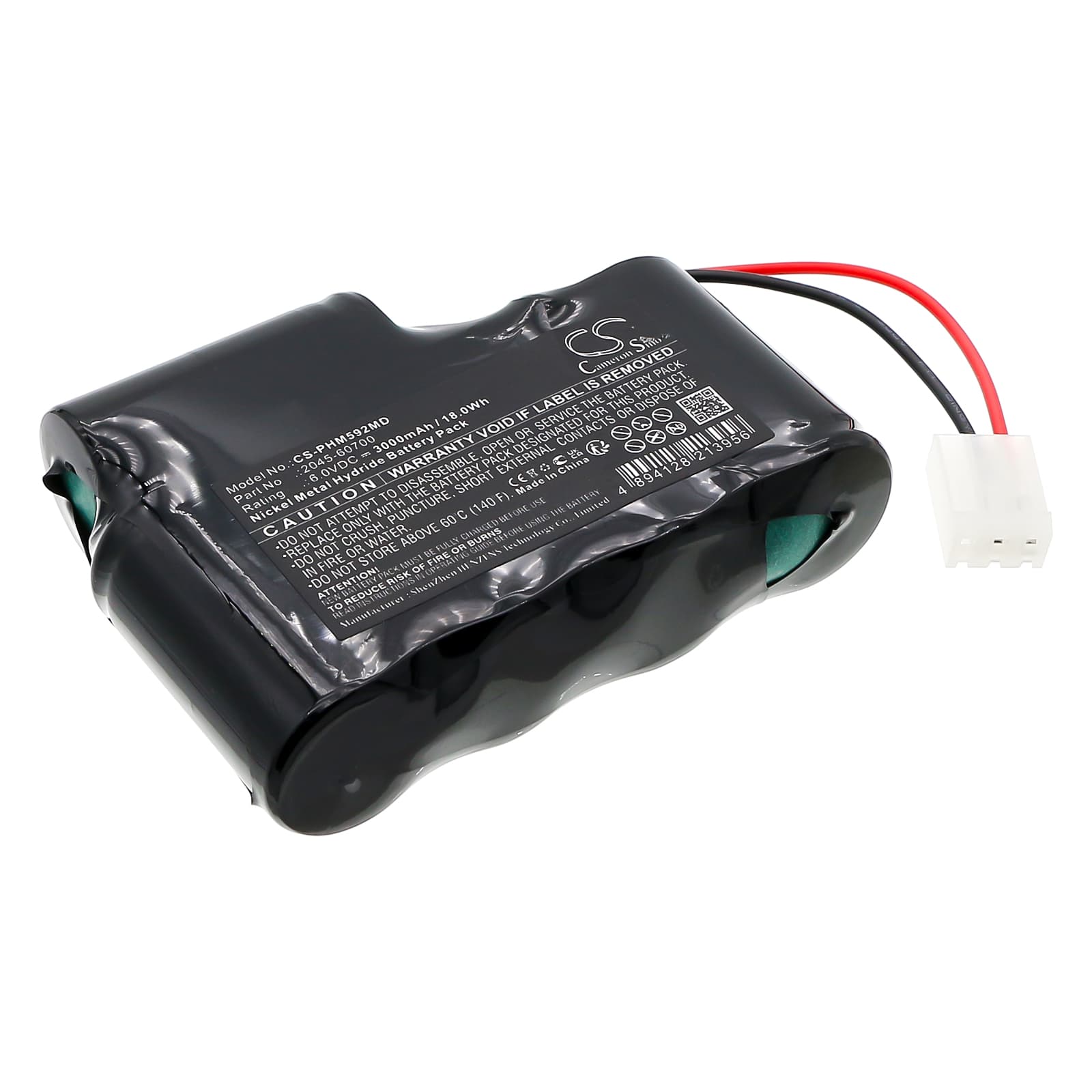

Philips 2040A Mida System — 6V Ni-MH Replacement Battery (2045-60700)
This 6V 3000mAh Ni-MH battery replaces the original cell in the Philips 2040A Mida patient monitoring system. It matches OEM part numbers 2045-60700 and M5928. Capacity is 18Wh — identical to factory specification.
- 2040A Mida platform fit: The Mida system uses a 6V Ni-MH cell with a specific connector pinout and BMS handshake. This replacement matches that voltage rail and connector. The BMS recognises the cell chemistry correctly without triggering a foreign-battery fault.
- Bench tested on actual hardware: We cycled this cell through a full charge-discharge sequence and monitored the BMS handshake at startup. The charge controller accepted the cell on first contact and the self-test flag cleared at the end of the initial charge cycle.
- Startup sequence on first install: After fitting this battery, let the Mida system complete its full power-on self-test without interruption. The BMS runs a chemistry verification routine at boot. Interrupting that sequence — even briefly cutting power — sets a battery fault flag that persists until the next complete reboot cycle.
Why the 2040A Mida alarms low battery on a freshly charged replacement
The Mida system's charge IC applies a conservative acceptance threshold on first use. A new Ni-MH cell arrives partially discharged from storage, and the BMS compares its resting voltage against an OEM-calibrated baseline. If the resting voltage sits below that threshold — typically under 5.8V — the system flags a low-battery condition even after a completed charge cycle. Running one full charge-discharge cycle resets the learned capacity register and clears the alarm on subsequent startups.
Mida device shuts off unexpectedly in the first week of use
New Ni-MH cells deliver slightly lower sustained current in the first 8–10 cycles while the electrolyte fully wets the electrode stack. The 2040A Mida's load profile during active patient monitoring draws enough current that an unconditioned cell can sag below the BMS cutoff voltage under peak demand. This triggers an unexpected shutdown that looks like a battery fault but is actually a voltage-sag trip. Cycle the battery three to five times in normal use before relying on it for uninterrupted clinical monitoring — resting cell voltage should stabilise above 6.0V between sessions.
