About this replacement

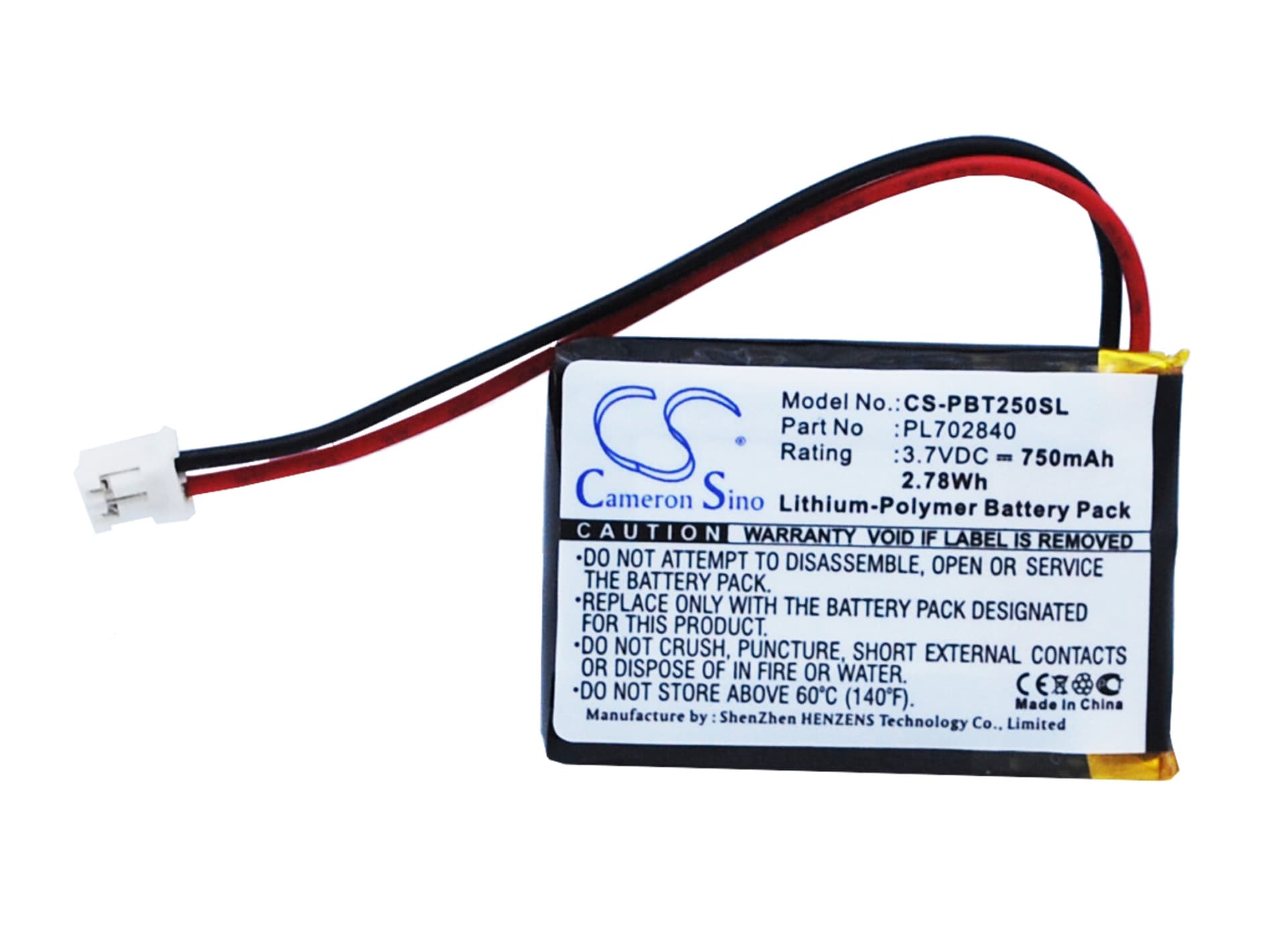

Philips BT2500 Series — 3.7V Li-Polymer Replacement Battery (PL702840)
This is a 3.7V, 750mAh Li-Polymer replacement battery for the Philips BT2500 portable Bluetooth speaker range, including the BT2500, BT2500W, BT2500B, and BT2500W/00. It fits directly into the speaker's battery bay and restores cordless audio playback when the original cell has degraded or failed. Voltage and capacity match the OEM spec exactly.
- BT2500 series compatibility: The BT2500, BT2500W, BT2500B, and BT2500W/00 all share the same 3.7V Li-Polymer cell format and the same PL702840 part number. The battery dimensions are 40.40 × 27.30 × 7.00mm — the connector orientation and BMS handshake are consistent across the range, so one cell covers all listed variants.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the BT2500 platform. The BMS accepted the pack without error, voltage rose cleanly from rest to 4.2V at full charge, and the protection circuit tripped correctly at the low-voltage cutoff threshold under load.
- Monthly discharge cycle for the BT2500: This speaker is typically used at a desk or bedside and gets topped off constantly without ever fully discharging. Let the cell drop below 20% at least once a month before recharging. Skipping this causes fuel gauge drift on the Li-Polymer cell, so the speaker reports full charge but cuts out earlier than expected.
Audio distorting before the battery indicator reaches empty on the BT2500
The BT2500's amplifier draws a sharp current spike when reproducing bass frequencies at mid-to-high volume. As the Li-Polymer cell ages and internal resistance climbs, that spike causes momentary voltage sag below what the amp needs to operate cleanly. The result is distortion or clipping — even though the battery indicator still shows charge remaining. Replacing the cell restores the low internal resistance that keeps voltage stable under those transient loads. After fitting the new battery, run a full charge to 4.2V before the first use to baseline the fuel gauge.
BT2500 not waking from USB charge after sitting unused for weeks
A Li-Polymer cell left in a discharged speaker for an extended period can drop below the USB charge controller's minimum acceptance voltage — typically around 2.5V. At that point, the controller sees the pack as outside safe charging range and refuses to begin a charge cycle, so the speaker appears completely dead on USB. Some BT2500 units will recover with a 30-to-60-second hold of the power button while the USB cable is connected, which forces the controller to attempt a trickle pre-charge. If that fails, the cell has self-discharged past the point of recovery and needs replacement. Check cell voltage directly — anything below 2.5V on a Li-Polymer cell means it will not accept a standard charge.
