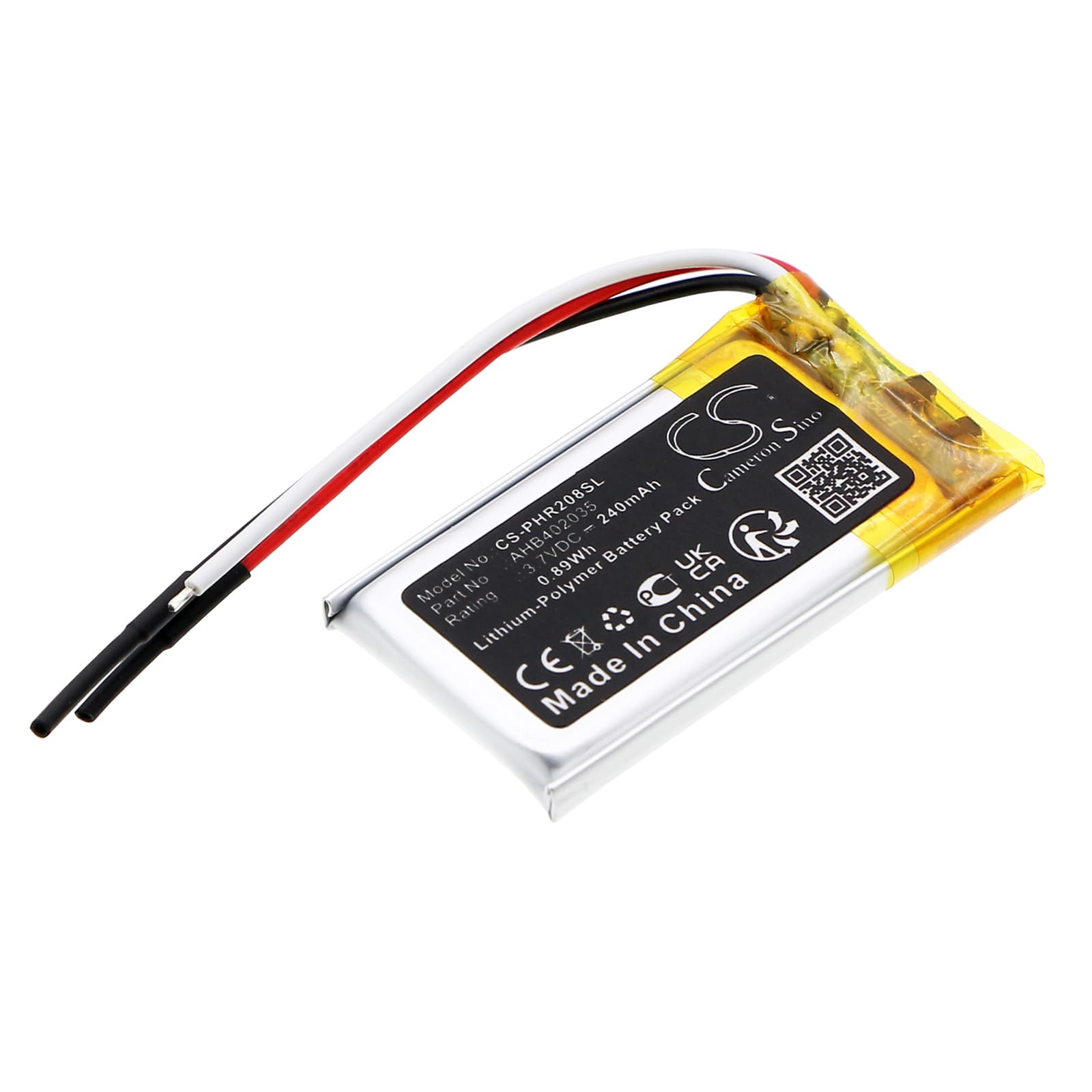

Philips CVR208 — 3.7V Li-Polymer Replacement Battery (AHB402035)
This 3.7V, 240mAh lithium-polymer cell replaces the internal battery in the Philips CVR208 dashcam. It fits directly into the compact housing and restores the camera's ability to run independently of the 12V power feed — critical for parking mode and clean shutdown recording. Capacity is sourced from the original OEM specification.
- CVR208 internal cell match: The CVR208 uses a slim lithium-polymer cell to buffer power during engine-off events. This replacement matches the original AHB402035 footprint at 37.00 × 19.80 × 4.00mm and connects to the same board-level BMS that governs charge termination and low-voltage cutoff.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a dashcam-class BMS test rig. The protection circuit held cutoff at the expected threshold, and charge termination triggered cleanly at 4.2V with no thermal anomalies across three full cycles.
- Parking mode calibration after install: After fitting a new cell, complete one full drive cycle with the dashcam powered via the hardwire kit before relying on parking mode. The CVR208's power management needs one full charge pass to calibrate the new cell's actual capacity against its parking mode timer.
Parking mode recording cutting out on the CVR208
Parking mode on the CVR208 draws continuously from the internal cell once the ignition feed drops. A degraded or deeply discharged cell hits the BMS low-voltage cutoff faster than expected, ending recording early. The BMS protects the cell from over-discharge at approximately 3.0V, so any cell that can no longer hold charge above that floor will trigger an early shutdown. Replacing the AHB402035 cell and completing a full calibration drive restores parking mode to its normal duration.
Footage file corruption after the internal battery was replaced
Corrupt or truncated clips usually mean the dashcam lost power mid-write — the file buffer didn't flush before the cell dropped below the BMS cutoff. This is common in the first one or two cycles after a new cell is fitted, before the BMS has an accurate state-of-charge reading. If corruption persists past the second full charge cycle, check that the hardwire kit is delivering a stable 5V feed to the camera — voltage sag on the input line forces the dashcam to lean harder on the internal cell during write operations. Format the card after the cell is fully cycled and the input voltage is confirmed above 4.8V under load.
