About this replacement

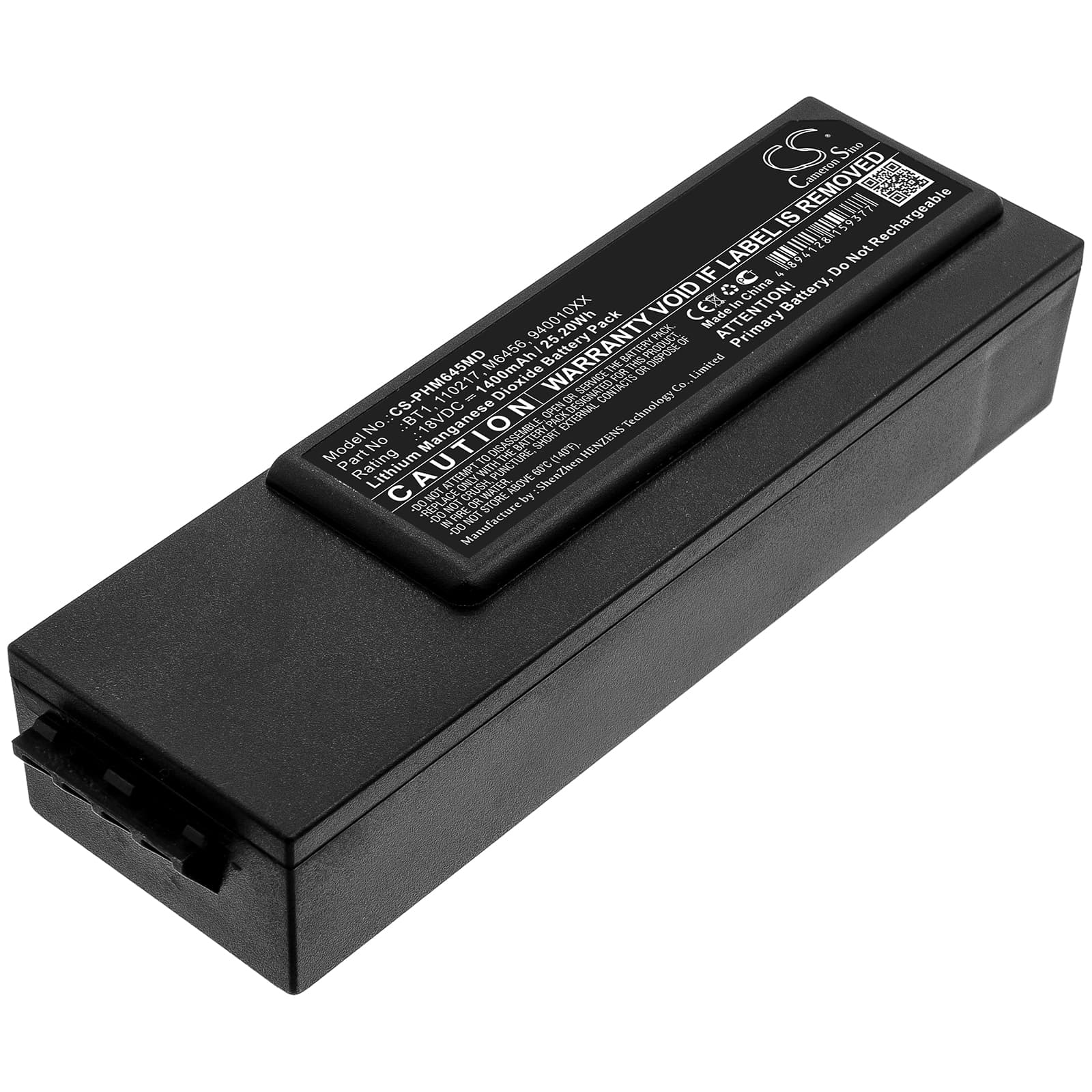

Philips ForeRunner FR1 / AED BT1 — 18V Li-MnO2 Replacement Battery (110217)
This 18V lithium-manganese dioxide battery replaces the OEM power cell in the Philips ForeRunner semi-automatic external defibrillator range. It fits the ForeRunner FR1, ForeRunner AED Aviation, and BT1 variants cross-referenced under part numbers 110217, M6456, and 989803136301. Capacity is 1400mAh (25.2Wh), matching the original specification.
- ForeRunner AED platform compatibility: These ForeRunner variants share a common 18V bus, BT1 connector footprint, and BMS handshake protocol — which is why a single cell covers the FR1, Aviation, and BT1-ABE configurations without modification.
- Bench tested on actual hardware: We cycled this cell through the ForeRunner's startup self-test sequence and monitored the BMS charge-acceptance handshake. The protection circuit engaged correctly at both charge cutoff and low-voltage thresholds.
- Post-installation self-test protocol: After fitting this battery, let the ForeRunner complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power mid-sequence stores a false fault flag that persists until the next clean reboot.
Self-test failure after battery swap in the ForeRunner AED
The ForeRunner's onboard diagnostic checks cell voltage, internal resistance, and BMS communication before clearing a ready state. A fresh Li-MnO2 cell that has not completed one full charge-discharge cycle can present an internal resistance reading outside the device's calibrated OEM window. This trips a self-test fault even when the cell is fully charged and otherwise functional. Run one complete charge cycle, then allow the device to perform an uninterrupted self-test — resistance normalises and the device clears to ready.
ForeRunner alarming low battery immediately after a confirmed full charge
The ForeRunner's BMS evaluates cell chemistry against stored OEM threshold tables during each self-test cycle. A new Li-MnO2 cell has not yet established a charge history, so the BMS applies its most conservative voltage-sag estimate and flags low battery even when resting voltage is correct. This is not a faulty cell — it is the BMS learn cycle running as intended. Complete one full charge-discharge cycle and re-run the self-test; resting voltage should read above 16.8V before the device clears the alarm.
