About this replacement

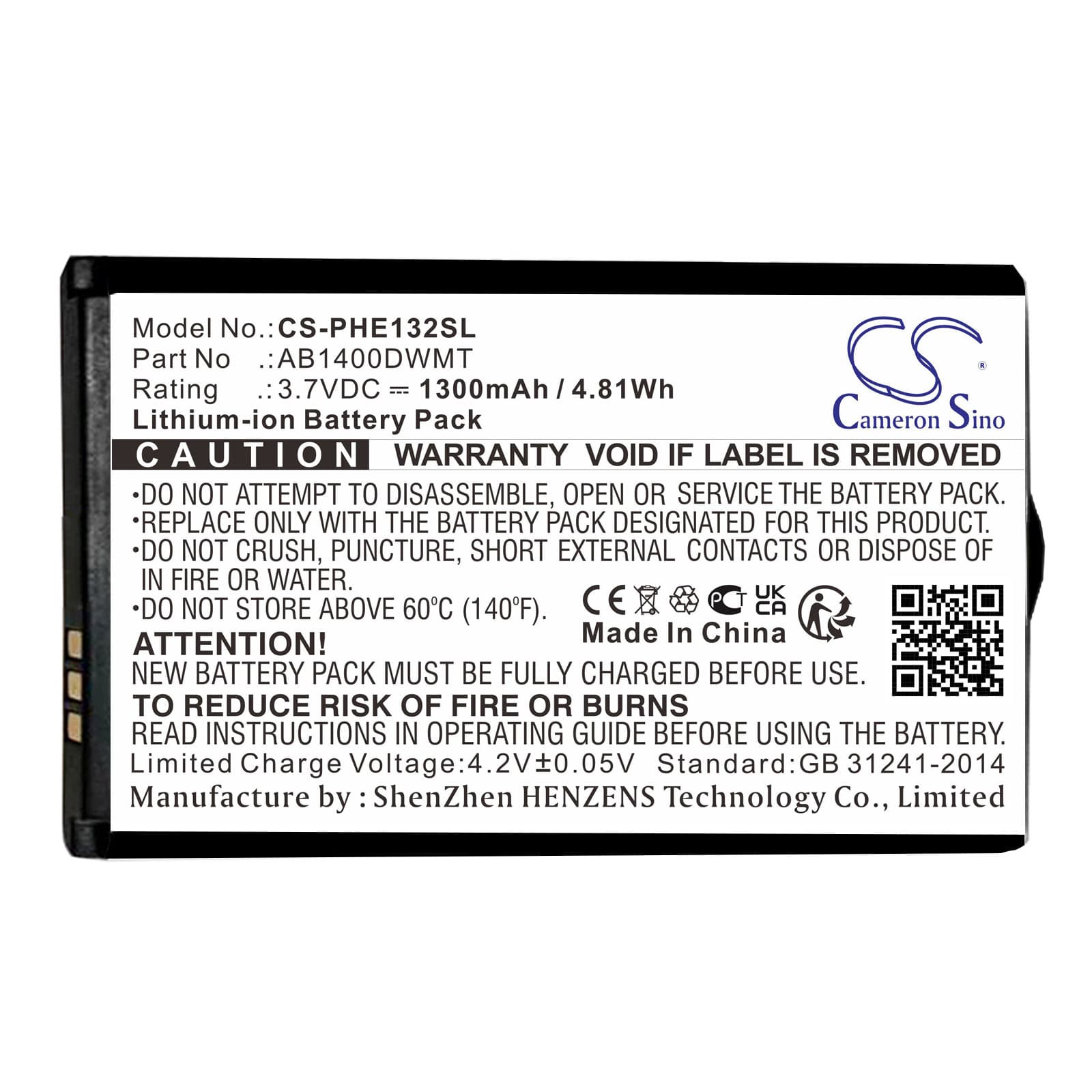

Philips Xenium E132 / E132X — 3.7V Li-ion Replacement Battery (AB1400DWMT)
This is a 3.7V, 1300mAh Li-ion cell that replaces part number AB1400DWMT in the Philips E132, E132X, Xenium E132, and Xenium E132X. It fits directly into the battery bay and connects to the same three-contact strip the original uses. Capacity is 1300mAh — 4.81Wh — matching the factory specification.
- E132 and E132X compatibility: Both variants share the same PCB layout, battery bay dimensions, and contact pinout. The BMS handshake runs on the same thermistor line, so the charge IC accepts this cell without flag errors on either model.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the E132 platform. The BMS cleared charge-complete at 4.2V and set the low-voltage cutoff correctly. No thermal events at the charge IC during the first cycle on a fresh high-impedance cell.
- First-cycle fuel gauge reset: After fitting this cell, disable fast charging and run one full discharge-to-charge cycle before resuming normal use. The fuel gauge IC on the E132 is calibrated to the old cell's discharge curve. One full cycle lets the coulomb counter recalibrate against the new cell before high-current charging is applied to an uncalibrated state.
Sudden shutdown at 20–30% on the Philips E132 after a cell swap
This is a voltage cliff issue, not a capacity defect. When the modem transmits or the screen runs at full brightness, current draw spikes sharply. A new cell with an uncalibrated fuel gauge IC can report 25% remaining while the actual terminal voltage drops below the BMS cutoff threshold under that load. The phone shuts off because the BMS correctly trips — it just doesn't know where the cliff is yet. One full discharge-charge cycle resets the coulomb counter and moves the reported percentage back in line with actual cell voltage.
Phone won't power on after the replacement battery sat in storage
Li-ion cells ship at a reduced state of charge — typically around 3.0V — to slow self-discharge during transit. If the cell drops below approximately 2.5V before installation, the BMS enters a lockout state and blocks normal charging to prevent damage. The phone shows nothing when you press the power button and may not respond to a charger at all. Connect the phone to a wall adapter — not USB from a PC — and leave it for 15–20 minutes without pressing anything; most Philips charge ICs apply a low trickle current that recovers the cell to a voltage where the BMS will re-initialise and allow a normal charge to begin.
