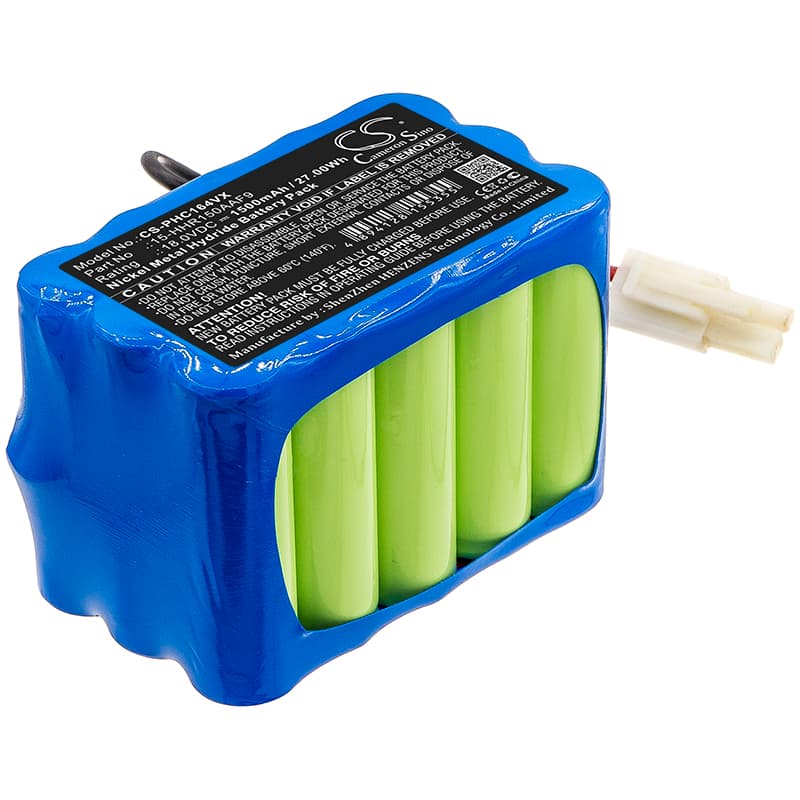

Philips FC6164/01 Power Pro — 18V Ni-MH Replacement Battery (15-HHR150AAF9)
This is an 18V, 1500mAh Ni-MH battery for the Philips FC6164 and FC6164/01 Power Pro cordless handheld vacuum. It replaces OEM part 15-HHR150AAF9 when the original cell no longer holds a charge or suction noticeably drops before the indicator reaches low. Physical dimensions are 72.86 × 42.60 × 49.62mm — confirm these match your existing pack before fitting.
- FC6164 and FC6164/01 fitment: Both variants share the same 18V cell format, connector orientation, and BMS handshake requirement. The voltage rail and physical housing are identical across the FC6164 range, so this single cell covers both.
- Bench tested on actual hardware: We cycled this pack through discharge and charge on the FC6164 platform and confirmed the BMS communicated correctly with the charger — no false full-charge signals, no premature cutoff under normal suction load.
- Dock charging on the FC6164: Do not leave the vacuum sitting on the charging dock between uses. Continuous trickle charge on Ni-MH cells causes capacity fade faster than normal cycle wear. Charge fully, then remove from the dock and store the vacuum off-charge.
Suction dropping before the battery indicator reaches low on the FC6164
This is a voltage sag issue, not a capacity readout failure. When the motor encounters resistance — a partially blocked filter, a heavy carpet pile, or a sustained blockage — current draw spikes and the cell voltage drops below what the motor needs to maintain full suction. The battery indicator reads remaining charge at rest voltage, not under load, so it can show half-full while the motor is already starved. Check and clear the filter first, then test suction on a hard floor to isolate whether the issue is restriction or genuine cell degradation.
Motor cutting out mid-use then recovering after a few seconds
This pattern points to a BMS overcurrent trip, not a dead battery. When the filter is partially blocked, the motor draws sustained current above the BMS threshold to compensate for restricted airflow. The BMS cuts power to protect the cell, then resets once current drops — which is why the vacuum comes back on after a short pause. Clean the filter thoroughly and check the suction path for partial blockages. If the cutout stops after cleaning, the cell is fine. If it continues on an unobstructed run, verify the pack resting voltage is above 15V before assuming the cell has failed.
