About this replacement

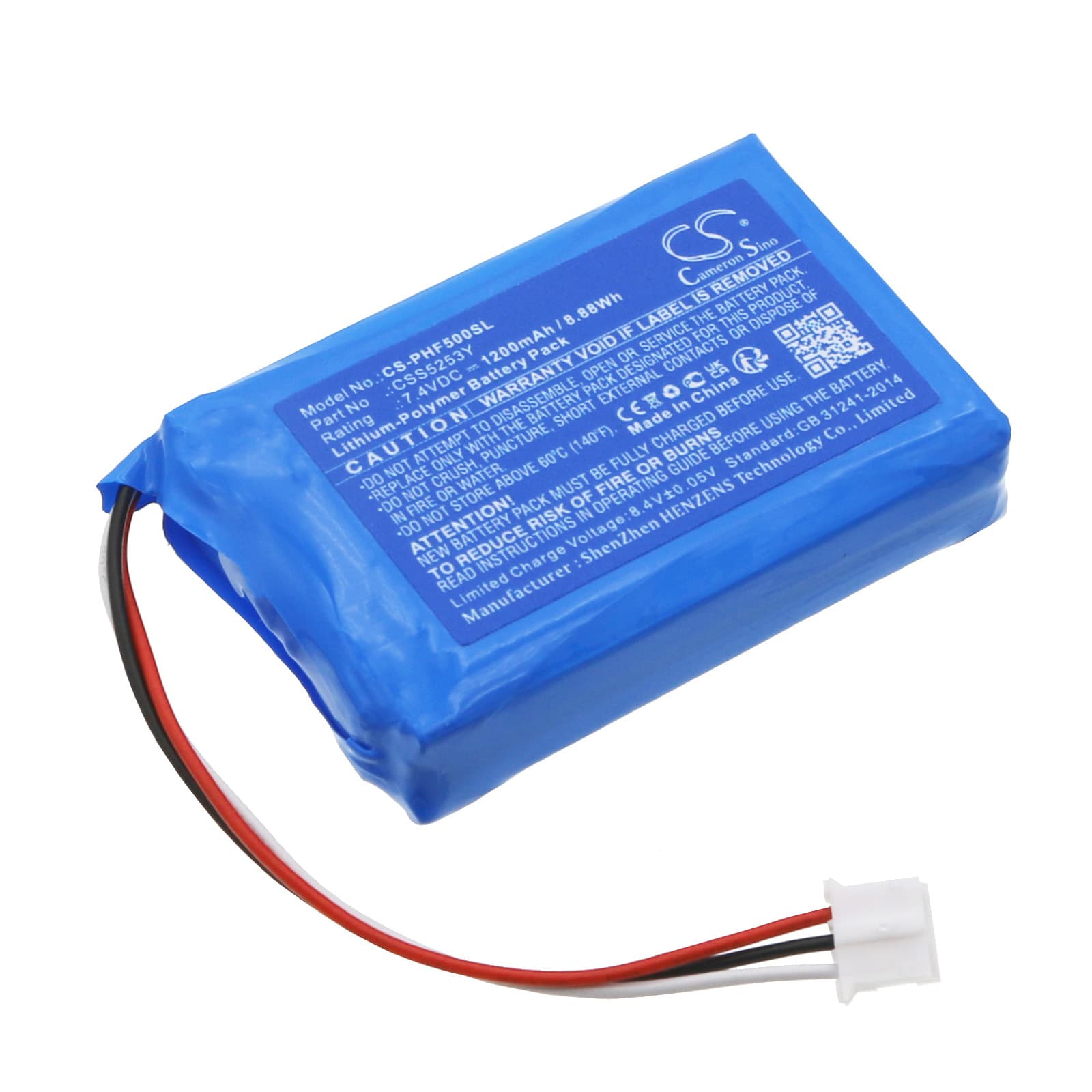

Philips Fidelio F5 / E5 Series — 7.4V Li-Polymer Replacement Battery (CSS5253Y)
This is a 7.4V, 1200mAh lithium-polymer replacement battery for the Philips Fidelio F5 and Fidelio E5 portable Bluetooth speakers, also covering CSS5235Y and CSS5235Y/93 units. It replaces OEM part CSS5253Y and restores cordless playback when the original cell no longer holds charge. Physical dimensions are 51.60 × 34.10 × 12.50mm — confirm fit against your existing pack before ordering.
- Fidelio F5 and E5 platform fit: Both the F5 and E5 share the same battery bay geometry, connector pinout, and BMS communication protocol, which is why a single cell covers the full range. The CSS5235Y unit variants use the same voltage rail at 7.4V nominal, so no firmware or hardware modification is needed.
- Bench tested on actual hardware: We ran this cell on the F5 chassis and confirmed the BMS handshake completes cleanly — no fault codes triggered, charge acceptance started within seconds of connection, and the protection circuit engaged correctly at the low-voltage cutoff threshold.
- Monthly full-discharge cycle on the Fidelio F5: The F5 is typically left on a desk and topped off before it drops below 50%. Do this long enough and the fuel gauge drifts — the speaker reports full charge but audio cuts earlier than expected. Run the speaker down past 20% at least once a month before recharging to keep cell calibration accurate.
Bluetooth dropping at high volume on the Fidelio F5
At high volume, the amplifier and Bluetooth radio draw current simultaneously, creating a combined load spike the aging cell cannot sustain without voltage sag. When cell voltage dips below the BMS protection floor, the radio module loses power momentarily before the amplifier does — which is why audio cuts rather than just gets quieter. A fresh cell with lower internal resistance handles the combined current draw without the sag. If dropouts continue after fitting a new battery, test at 80% volume first; persistent drops above that point to an amplifier or antenna issue, not the cell.
Audio distorting before the battery indicator reaches empty
Distortion before the gauge reads low is a voltage sag symptom, not a speaker driver fault. As the cell ages, internal resistance rises — under amplifier load, terminal voltage drops faster than the fuel gauge registers, starving the amp of clean voltage while the indicator still shows capacity remaining. The amplifier clips under that reduced voltage, producing the distortion. Fitting a replacement cell with lower internal resistance restores stable voltage delivery under load; if distortion persists on a new cell, check that cell voltage under load stays above 6.8V.
