About this replacement

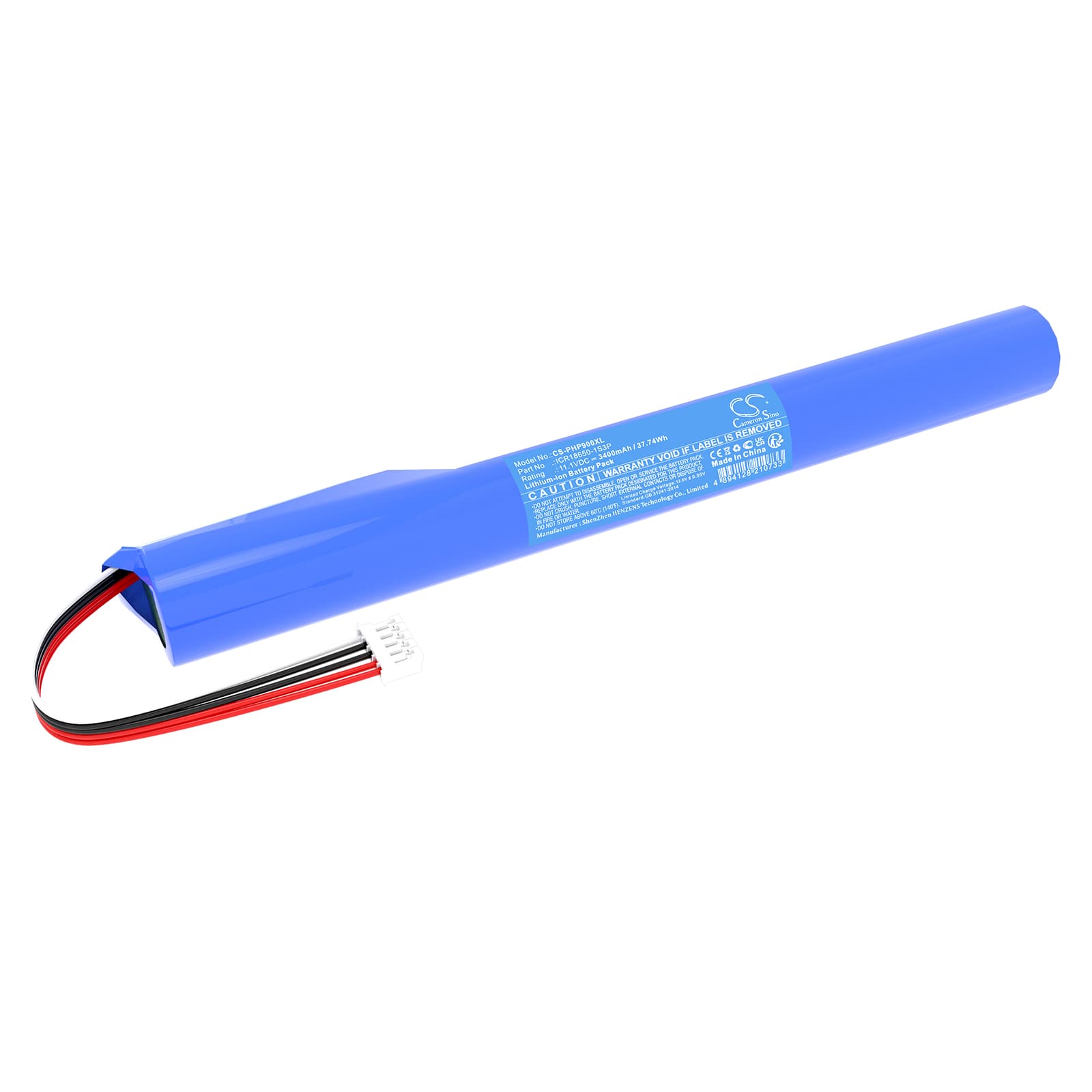

Philips Fidelio P9 Series — 11.1V Li-ion Replacement Battery (ICR18650-1S3P)
This 11.1V, 3400mAh Li-ion battery pack replaces the original ICR18650-1S3P cell assembly inside the Philips Fidelio P9 wireless speaker. It fits the P9, P9BLK/98, P9SLV/98, and P9WHT/10 variants. Swap it when the original pack no longer holds a charge or the speaker fails to power on from the charging port.
- P9 variant compatibility: The P9BLK/98, P9SLV/98, and P9WHT/10 are colour variants of the same platform — same internal chassis, same battery bay dimensions, same BMS communication protocol. One battery fits all three without modification.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the P9 platform and confirmed BMS handshake, stable cell voltage under combined amplifier and Bluetooth radio draw, and correct fuel gauge reporting across the discharge curve.
- Monthly full-discharge cycle: The P9 sits on a desk or shelf and gets topped off constantly. That shallow cycling drifts the fuel gauge and accelerates cell degradation. Run the speaker down below 20% at least once a month before recharging to keep the gauge accurate and slow capacity fade.
Bluetooth dropping at high volume on the P9
At high volume, the P9's Class D amplifier pulls a sharp current spike on each bass transient. An aged or low-capacity cell cannot sustain the combined draw from the amplifier and the Bluetooth radio simultaneously. Voltage sags below the radio's operating threshold, and the Bluetooth stack drops the connection. A fresh cell at full capacity eliminates the sag — the radio stays connected through loud passages because the cell delivers current without sagging below 10.8V.
Speaker won't wake from USB when the battery is deeply discharged
If the P9 sat unused for several weeks, the cell may have self-discharged below the USB-C PD minimum acceptance voltage — typically around 2.5V per cell, or roughly 7.5V for this 3S pack. The charger sees the pack as a fault condition and refuses to initiate a charge cycle. Connect the speaker to a USB port and leave it undisturbed for 15–20 minutes — the BMS trickle-charges the cell back above the acceptance threshold before switching to normal charge mode. If the charging indicator never lights after 30 minutes, the original cell is likely below recovery voltage and replacement is the correct next step.
