About this replacement

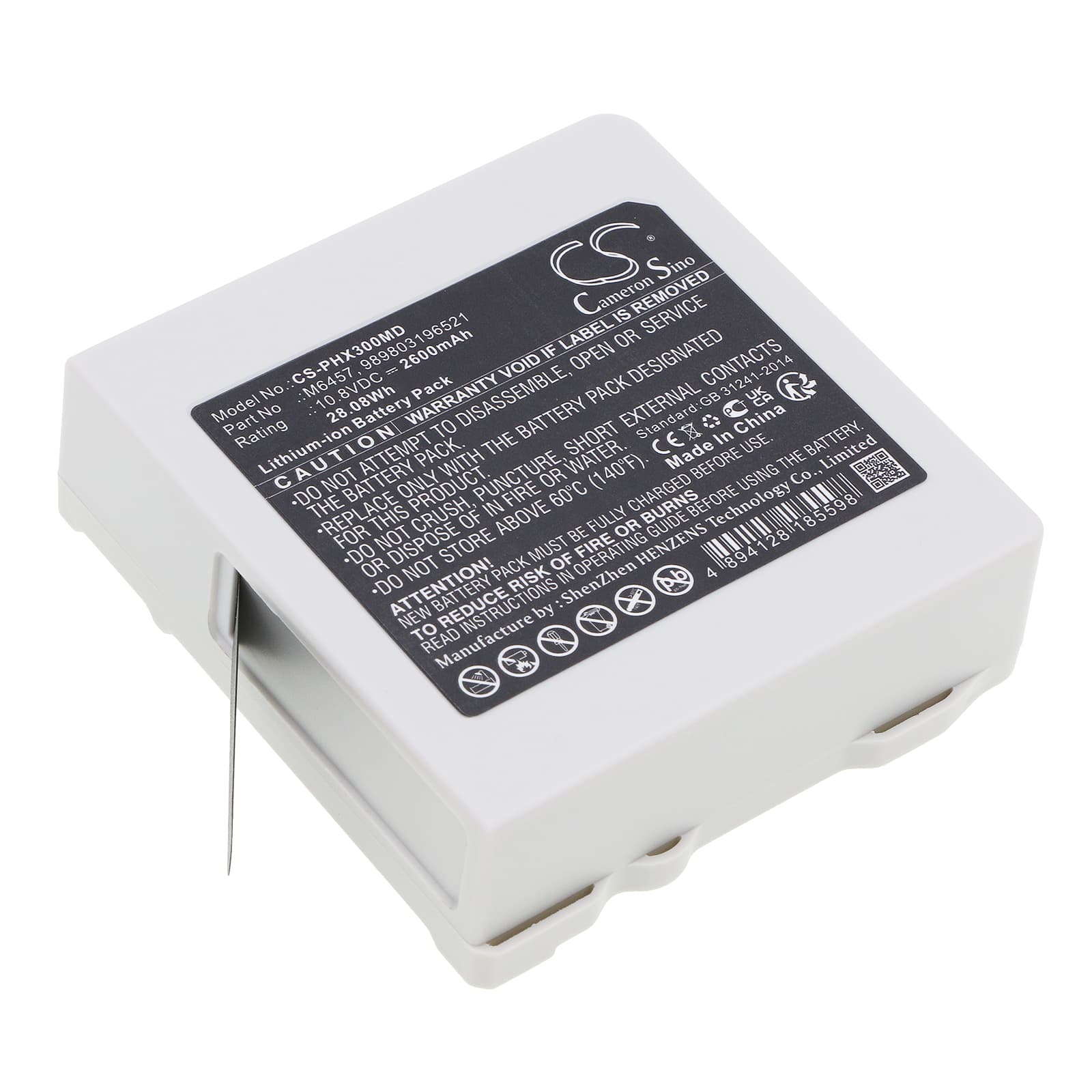

Philips Intellivue X3 / MX100 — 10.8V Li-ion Replacement Battery (M6457)
This is a 10.8V, 2600mAh (28.08Wh) lithium-ion replacement battery for the Philips Intellivue X3 and MX100 portable patient monitors. It replaces OEM part numbers M6457 and 989803196521. The battery also fits models 867030 and 867033 within the same platform series.
- Intellivue X3 and MX100 platform fit: These monitors share the same 10.8V battery architecture, connector pinout, and BMS handshake protocol, which is why a single cell covers both platforms. Swapping between units in a fleet does not require a different cell.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Intellivue X3 platform. The BMS accepted the cell, completed capacity verification, and cleared the battery status register without fault codes.
- Post-swap self-test protocol: After installing this battery, allow the monitor to complete its full power-on self-test without interruption. The Intellivue platform runs a BMS verification sequence at startup — cutting power mid-sequence triggers a false battery fault that persists until the next clean reboot.
Why the Intellivue X3 alarms low battery immediately after a confirmed full charge
The Intellivue BMS compares incoming cell capacity data against a stored OEM chemistry profile. A new replacement cell has not yet completed a learn cycle, so the BMS reads the state-of-charge conservatively and triggers a low battery alarm even when the cell is fully charged. This is not a fault with the cell — it is the BMS applying its threshold before calibration. Run one complete charge-discharge cycle, then allow the monitor to recharge to 10.8V before returning to clinical use.
Intellivue X3 will not power on after battery sat in storage
Lithium-ion cells self-discharge during storage. If the cell voltage drops below the Intellivue BMS recovery threshold — typically around 9V for a 10.8V nominal pack — the BMS locks out the discharge path and the monitor will not boot. Place the battery on charge for a minimum of 30 minutes before attempting to power on the device. If the charge indicator does not respond within that window, check charger contact and retry. The BMS re-enables the discharge path once the cell recovers above its reinitialisation threshold.
