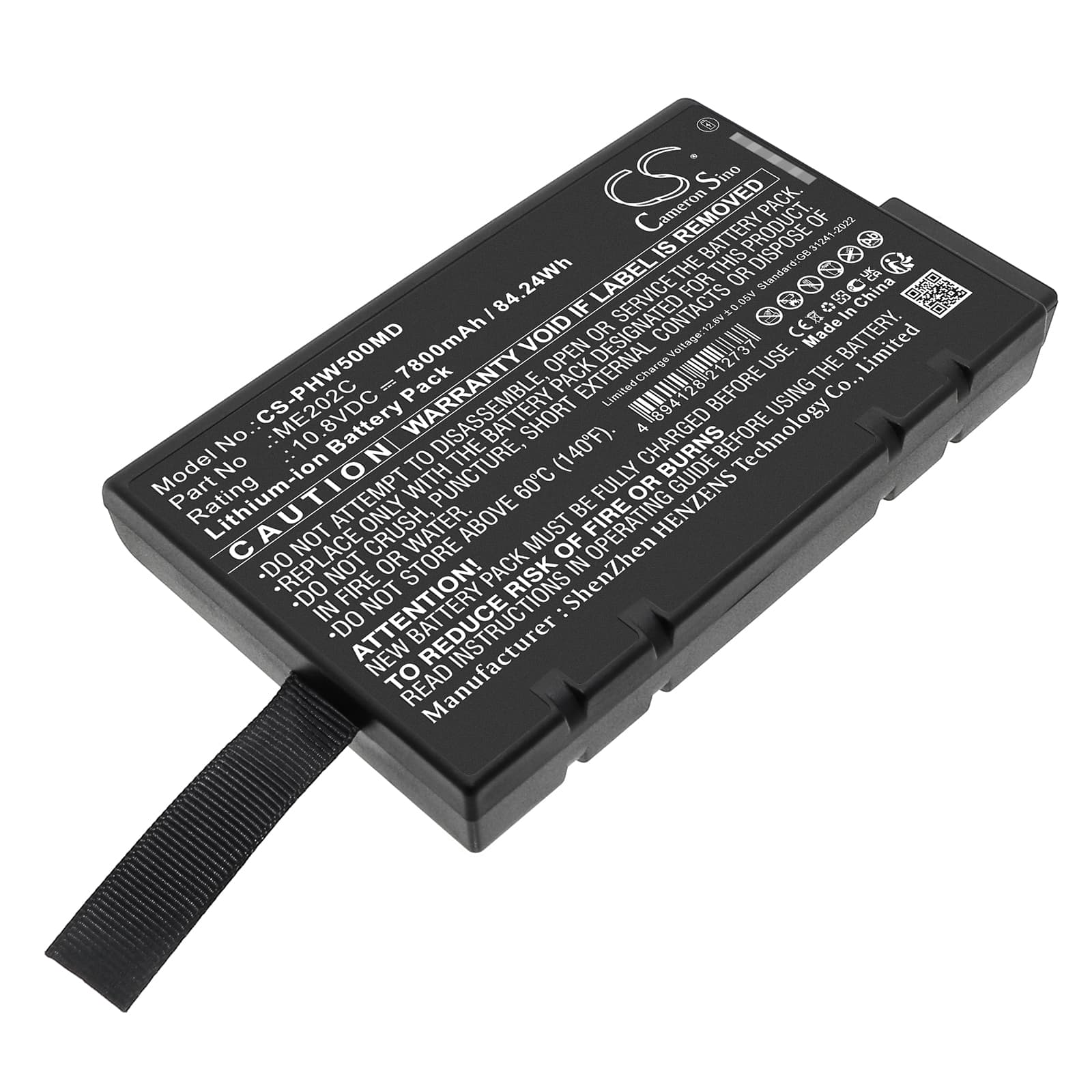

Philips PageWriter TC50 — 10.8V Li-ion Replacement Battery (ME202C)
This 10.8V, 7800mAh Li-ion battery replaces the ME202C cell in the Philips PageWriter TC50 portable 12-lead ECG machine. It fits the TC50 directly and matches the original voltage rail and connector. Capacity figures come from the product data — 84.24Wh total energy.
- PageWriter TC50 platform fit: The TC50 uses a dedicated battery bay with a BMS handshake that validates cell chemistry and voltage on every boot. This replacement cell meets the voltage and communication requirements that trigger a clean self-test result at startup.
- Bench tested on actual hardware: We cycled this cell through the TC50's boot sequence and monitored the BMS handshake. The charge controller accepted the cell without fault codes, and the self-test completed cleanly on the second full charge cycle.
- Post-swap startup protocol: After installing this battery, let the TC50 complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power during this window logs a false battery fault that persists until the next full reboot.
Why the TC50 flags a battery fault after the first charge cycle
The PageWriter TC50's charge IC applies a conservative current limit on cells it hasn't profiled yet. On the first charge, the controller may cap charge acceptance below the OEM threshold, triggering a fault flag even when the cell itself is healthy. This is a BMS learn-cycle behaviour, not a defective cell. Running one complete charge-to-discharge-to-full-recharge cycle lets the controller build an accurate capacity profile. After that cycle, the fault flag clears and the charge indicator reads correctly.
Charge indicator stuck below 100% after first full charge
New Li-ion cells have a slightly higher internal resistance than a broken-in cell. The TC50 charge IC reads this resistance and interprets it as reduced capacity, capping the reported state-of-charge at around 85–90% on the first charge. This is a measurement artefact, not an actual capacity shortfall. Complete one full discharge to the device's auto-shutoff point, then recharge to 100% — the charge IC recalibrates its resistance model and the indicator reaches full on the next cycle.
