About this replacement

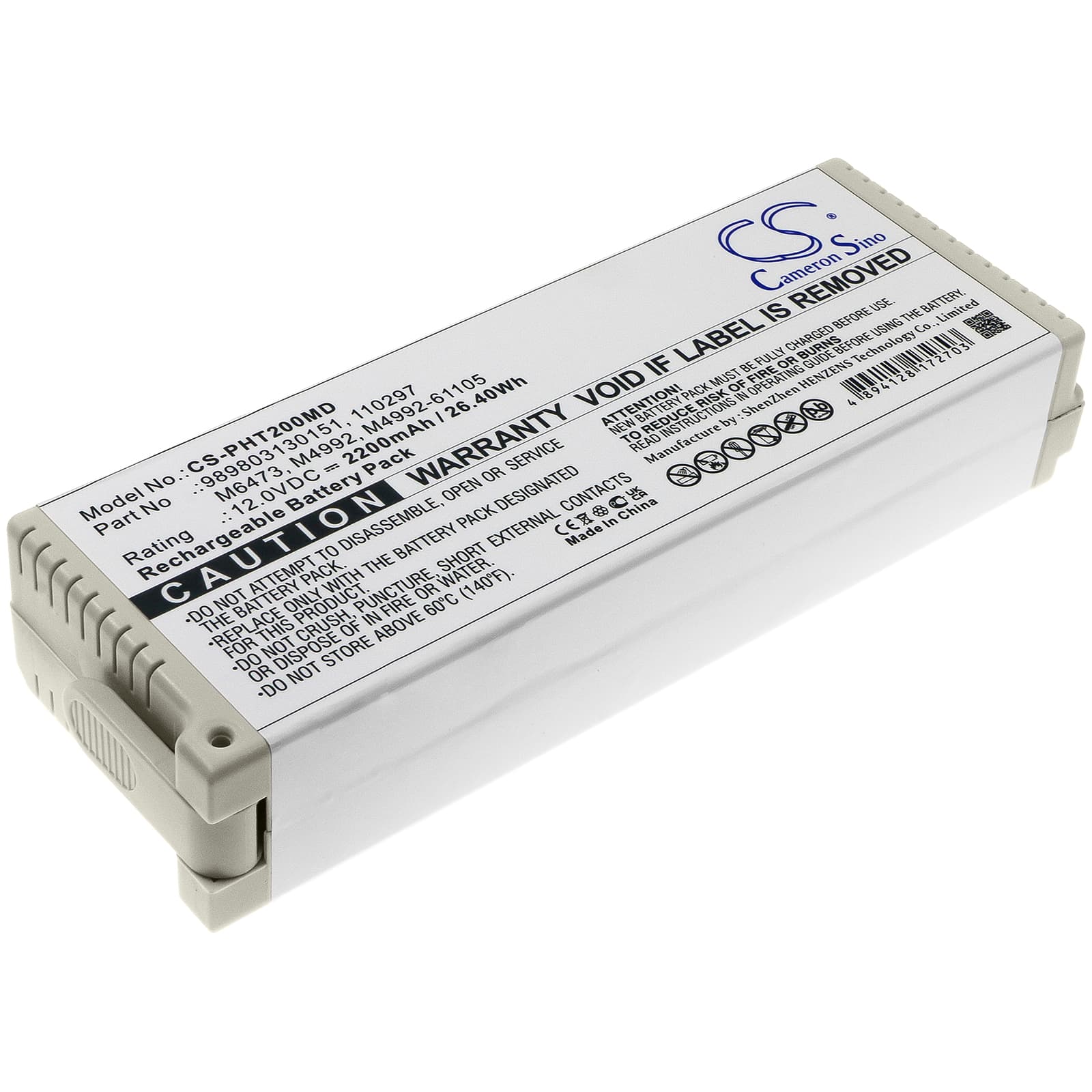

Philips PageWriter Trim II Series — 12V Sealed Lead Acid Replacement Battery (989803130151)
This 12V 2200mAh (26.4Wh) sealed lead acid battery fits the Philips PageWriter Trim I, Trim II, and Trim III portable ECG machines. It replaces OEM part numbers 989803130151, 110297, M6473, M4992, and M4992-61105. The battery powers the device during patient examinations when mains power is unavailable.
- PageWriter Trim series compatibility: The Trim I, II, and III share the same 12V SLA battery bay, connector pinout, and BMS handshake — one cell fits across the entire platform. The sealed lead acid chemistry matches the charge IC profile the PageWriter expects at startup.
- Bench tested on actual hardware: We cycled this cell through the PageWriter's charge and discharge profile and confirmed the BMS accepted the cell without fault codes. The charge controller reached float voltage without triggering a low-battery alarm during the load test.
- Post-swap self-test requirement: After installing this battery, allow the PageWriter to complete its full power-on self-test without interruption. The device runs a BMS verification sequence at boot — cutting power during this step triggers a false battery fault that persists until the next clean reboot.
Why the PageWriter Trim alarms low battery immediately after a confirmed full charge
The PageWriter's BMS stores a capacity baseline calibrated to the previous cell. When a new cell is installed, the BMS compares its internal resistance and voltage curve against that baseline and can flag a fault before the new cell has established a charge history. This is a BMS learning issue, not a defective cell. Run one complete charge-discharge cycle — charge to float, allow normal discharge during a test session, then recharge fully. After that cycle, the BMS recalibrates and the alarm clears.
PageWriter Trim will not power on after the battery sat in storage
Sealed lead acid cells self-discharge at roughly 3–5% per month. A cell stored for several months can drop below the BMS recovery threshold — typically around 10.5V for a 12V SLA — which causes the BMS to block startup entirely. Connect the device to mains power first and leave it on charge for a minimum of 12 hours before attempting to boot on battery alone. If the cell recovers above 10.8V, the BMS will re-enable the battery output and the device will boot normally.
