About this replacement

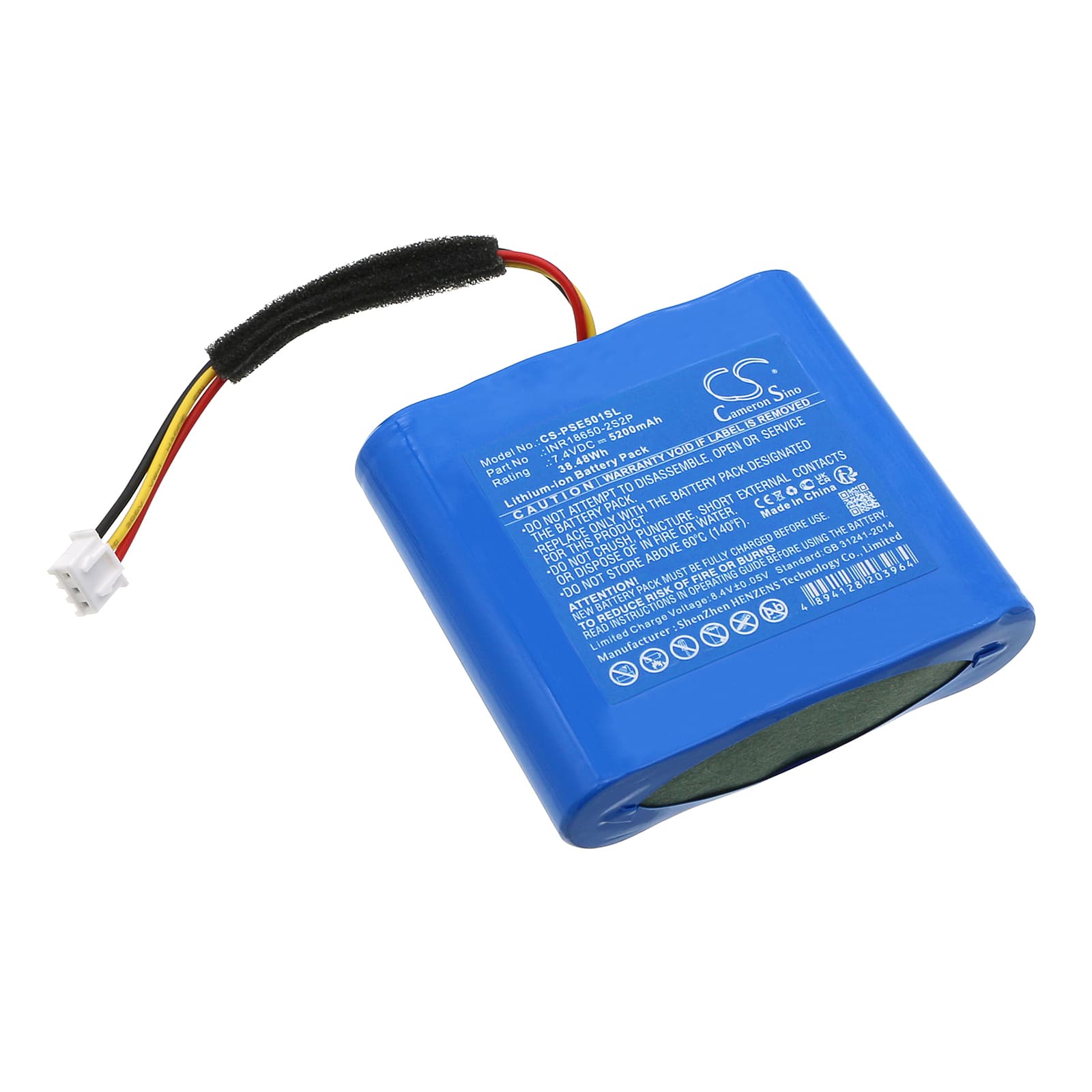

Philips PSE0501 Smartmeeting — 7.4V Li-ion Replacement Battery (INR18650-2S2P)
This 7.4V, 5200mAh Li-ion battery replaces the original INR18650-2S2P pack in the Philips PSE0501 and PSE0501/00 Smartmeeting portable speaker. The 2S2P cell configuration delivers the voltage and current headroom the speaker's amplifier and Bluetooth radio draw simultaneously. Fit this when the original pack no longer holds charge or causes audio interruptions during playback.
- PSE0501 and PSE0501/00 fitment: Both model variants use the same 7.4V rail and connector pinout. The BMS on this pack matches the charge acceptance handshake the Philips charging circuit expects, so the fuel gauge reads correctly from the first charge.
- Bench tested on actual hardware: We ran this pack under combined Bluetooth transmission and full-range audio load. The BMS held the output rail stable through repeated high-draw transients without triggering a protective cutoff.
- Fuel gauge calibration tip: If the speaker is charged at a desk daily and rarely discharged below 50%, the fuel gauge drifts over time. Run the speaker down below 20% at least once a month before recharging — this recalibrates the gauge and slows capacity fade on the Li-ion cells.
Audio distortion before the battery indicator reaches empty
As the pack ages, internal resistance rises. Under amplifier load, voltage sags faster than the indicator tracks. The amplifier hits its lower operating voltage and clips the output signal before the battery gauge shows critical. The indicator lags because it measures state-of-charge, not instantaneous voltage under load. If distortion starts early, check resting voltage — a healthy pack at 40% charge should read above 7.2V at rest.
Speaker fails to wake from USB charging after a deep discharge
If the PSE0501 sits unused for several weeks, the cells can drop below the USB-C PD minimum acceptance threshold — typically around 6V for a 2S pack. At that point the charging circuit sees a dead load and refuses to negotiate power delivery. Connect to a 5V USB-A source first, not USB-C PD, and hold the power button for ten seconds to force the BMS into recovery mode. Once cell voltage climbs back above 6.4V, standard USB-C charging resumes normally.
