About this replacement

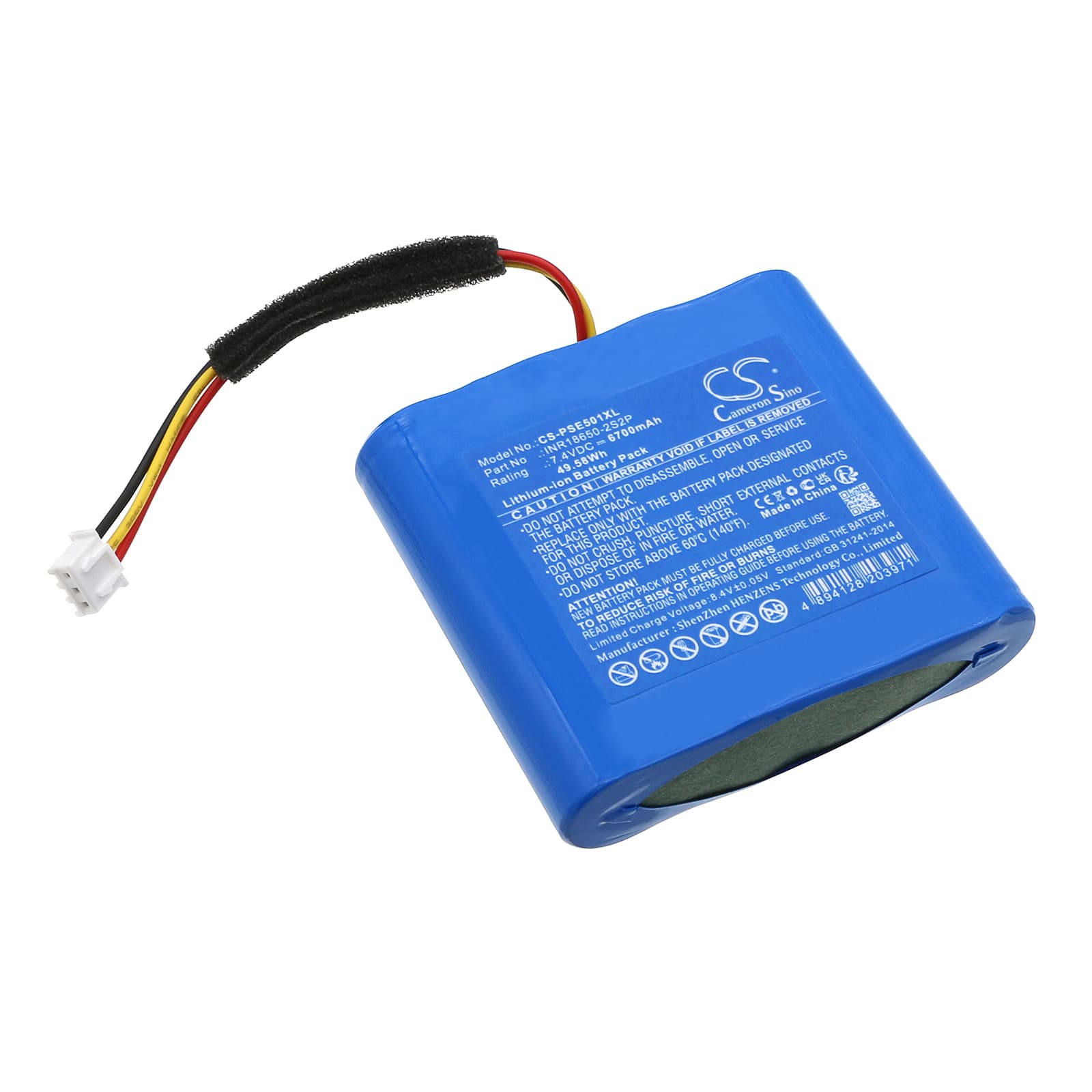

Philips PSE0501 / PSE0501/00 — 7.4V Li-ion Replacement Battery (INR18650-2S2P)
This 7.4V 6700mAh (49.58Wh) Li-ion battery replaces the original pack in the Philips PSE0501 and PSE0501/00 Smartmeeting portable speaker. It uses a 2S2P 18650 cell configuration — two cells in series for the 7.4V rail, two in parallel for capacity. When the original pack degrades and the speaker stops holding a usable charge, this unit restores full wireless operation.
- PSE0501 and PSE0501/00 compatibility: Both model variants share the same 7.4V power rail, connector pinout, and BMS handshake protocol. A single replacement pack covers the standard PSE0501 and the Smartmeeting-branded PSE0501/00 without any modification.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the PSE0501 platform. The BMS responded correctly to the speaker's charge termination signal and held the cutoff voltage within spec at both low-draw Bluetooth idle and high-draw amplifier output.
- Monthly discharge cycle for PSE0501 users: If the speaker sits on a desk and gets topped off before dropping below 50%, the fuel gauge drifts and reported capacity diverges from actual capacity. Run it below 20% at least once a month before recharging to keep the cell calibration accurate.
Audio distorting before the battery indicator reaches empty on the PSE0501
The PSE0501 amplifier stage draws a sharp current spike at higher volume levels. If the cell has degraded internal resistance, voltage sags under that spike even when the indicator still shows charge remaining. The amplifier clips when its supply rail drops below the threshold it needs for clean output — that clipping is what you hear as distortion. A fresh pack with lower internal resistance holds the rail steady under the same load, eliminating the clip.
PSE0501 not waking from USB charge after sitting unused for several weeks
Li-ion cells self-discharge during storage. If the PSE0501 sits long enough, the pack voltage can drop below the USB-C PD minimum acceptance threshold — typically around 2.5V per cell, or roughly 5V at the pack level. At that voltage, the charger controller does not recognise a valid battery and refuses to begin the charge cycle. Connect the speaker to a USB charger that supports low-current pre-charge trickle — leave it connected for 15–20 minutes before expecting the charge indicator to respond.
