About this replacement

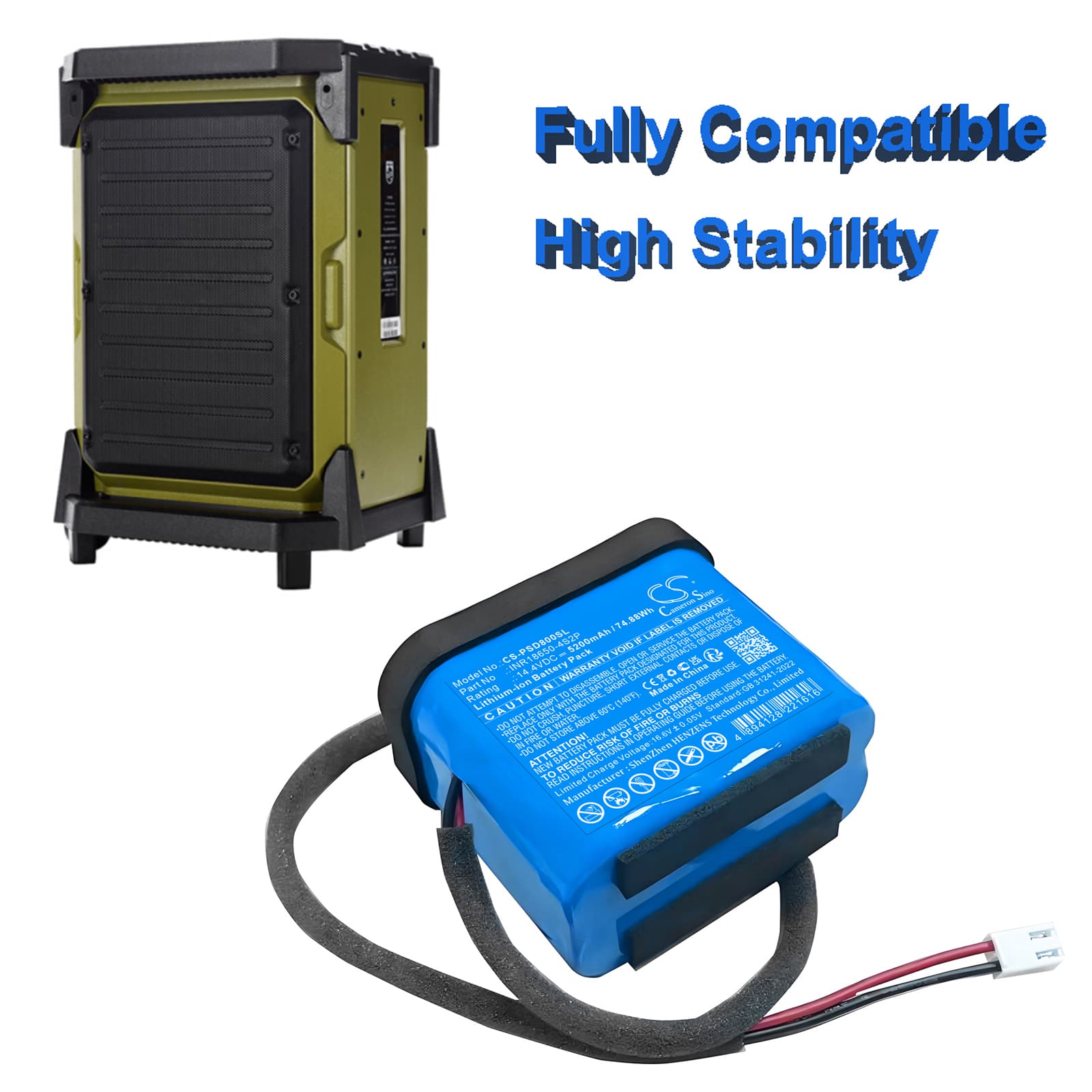

Philips SD80 Outdoor Speaker — 14.4V Li-ion Replacement Battery (INR18650-4S2P)
This 14.4V 5200mAh Li-ion battery replaces the original pack in the Philips SD80 and SD80/93 Outdoor Speaker. It uses the same INR18650-4S2P cell configuration as the factory battery. When the original pack degrades, the speaker loses portability — this battery restores it.
- SD80 and SD80/93 compatibility: Both the standard SD80 and the SD80/93 Outdoor variant share the same 14.4V battery bay, connector pinout, and BMS handshake protocol. One battery fits both. No adapter required.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the SD80. The BMS balanced cells correctly across both charge and audio-draw phases, and the protection circuit tripped as expected at low-cell voltage cutoff with no false shutdowns at high amplifier draw.
- Monthly discharge cycle for the SD80: Let the speaker run down below 20% at least once a month before recharging. The SD80 is commonly left on its dock between uses, which causes shallow-cycle degradation and fuel gauge drift over time — a full discharge resets the gauge and slows capacity fade.
Audio distortion before the battery indicator reaches empty on the SD80
As the cell voltage drops toward the lower end of its discharge curve, the amplifier stage in the SD80 starts clipping before the battery indicator triggers a low-battery warning. The indicator reads off a voltage threshold, but the amplifier reacts to instantaneous current sag under loud audio. A worn or deeply cycled pack has higher internal resistance, which worsens voltage sag under load. Replacing the pack eliminates the resistance gap — the amplifier receives stable voltage through more of the discharge cycle.
SD80 warm to the touch during extended outdoor play
Heat buildup in the SD80 during long sessions comes from two sources running simultaneously: amplifier dissipation and battery discharge heat. In the fabric-wrapped outdoor housing, that heat has limited airflow to escape. A degraded original pack runs at higher internal resistance, generating more heat per discharge cycle. If the housing feels uncomfortably warm, check the battery first — a fresh pack with lower internal resistance reduces one of the two heat sources directly.
