About this replacement

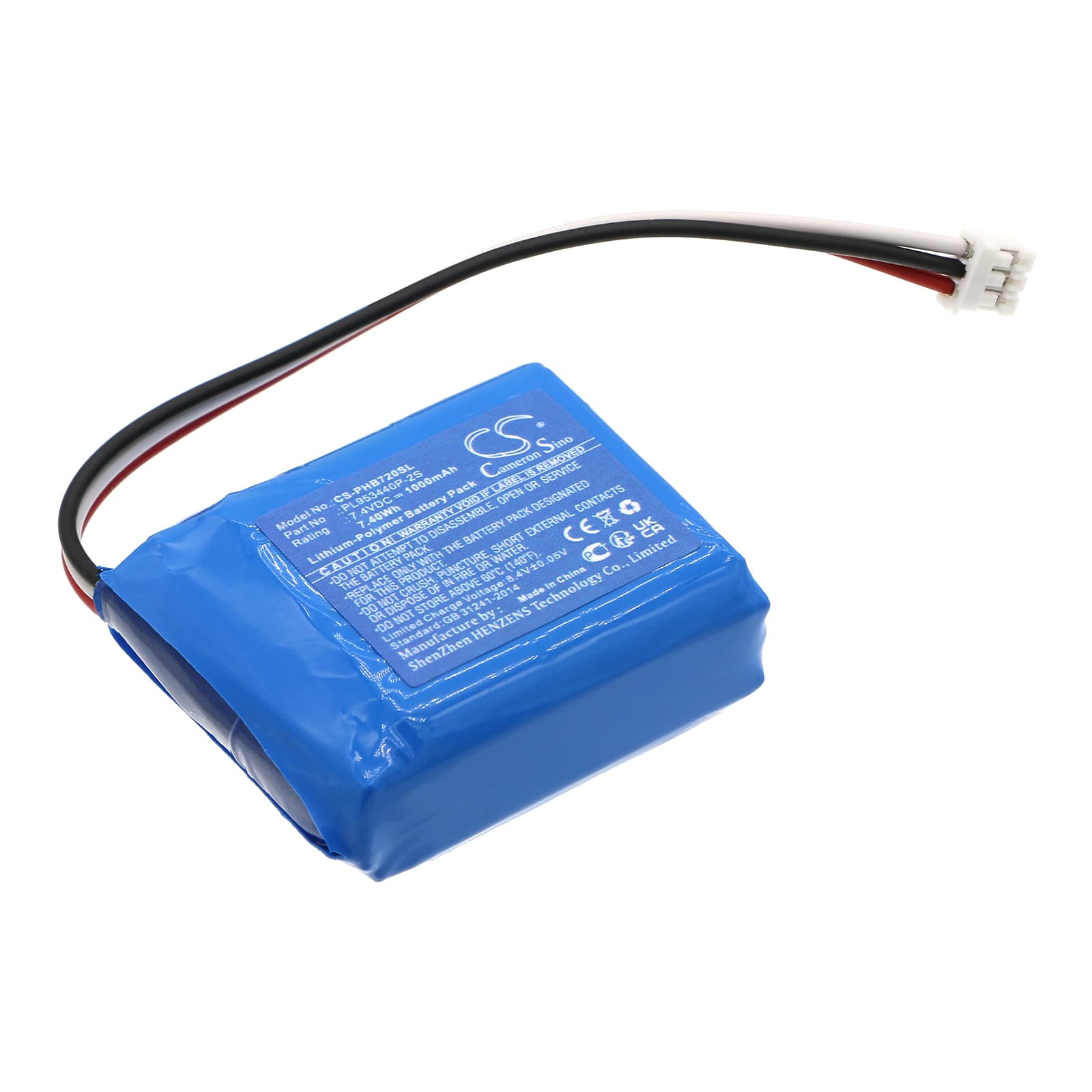

Philips SHOQBOX SB7200 — 7.4V Li-Polymer Replacement Battery (PL953440P-2S)
This 7.4V, 1000mAh Li-Polymer battery replaces the OEM pack in the Philips SHOQBOX SB7200 portable Bluetooth speaker. It matches the original cell format at 42.30 × 34.50 × 18.00mm and connects to the same BMS circuit inside the housing. When the original pack degrades after repeated charge cycles, this replacement restores the speaker's wireless playback capacity.
- SB7200 fit: The SB7200 runs a dual-cell 7.4V Li-Polymer configuration managed by an onboard BMS that monitors cell balance and cutoff. This pack uses the same PL953440P-2S cell arrangement, so the BMS recognises charge state correctly on first power-up.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the SB7200 circuit. The BMS accepted the cell without a handshake fault, and both protection thresholds — overcharge cutoff and low-voltage cutoff — triggered at expected voltages.
- Fuel gauge recalibration after install: After fitting this pack, run the SB7200 down to the low-battery warning before recharging. Skipping this step leaves the fuel gauge reading the old cell's calibration curve, which causes the indicator to show empty well before the actual cutoff voltage.
Capacity fade from constant top-off charging on the SB7200
The SB7200 is often left on a USB charger between uses — plugged in on a desk, charged to 100%, unplugged for a short session, then topped off again. This shallow-cycle pattern keeps the Li-Polymer cells in the upper voltage range for long periods, which accelerates electrolyte oxidation at the cathode. Over 200–300 cycles of this pattern, usable capacity drops noticeably even though the charge indicator still reads full. Discharging below 20% at least once a month before a full recharge slows this degradation.
Audio distorting before the battery indicator reaches empty
As the Li-Polymer pack ages, internal resistance rises. At high volume, the amplifier draws a short current spike that causes the cell voltage to sag momentarily below what the amp needs for clean output — the result is audible clipping or crackling even though the indicator still shows charge remaining. This is a voltage-sag symptom, not a speaker driver fault. Fitting a fresh pack with lower internal resistance removes the sag. If distortion returns on the new pack within a few months, the charging pattern is likely causing early resistance build-up — run a full discharge cycle to recalibrate and reduce shallow-cycle wear.
