About this replacement

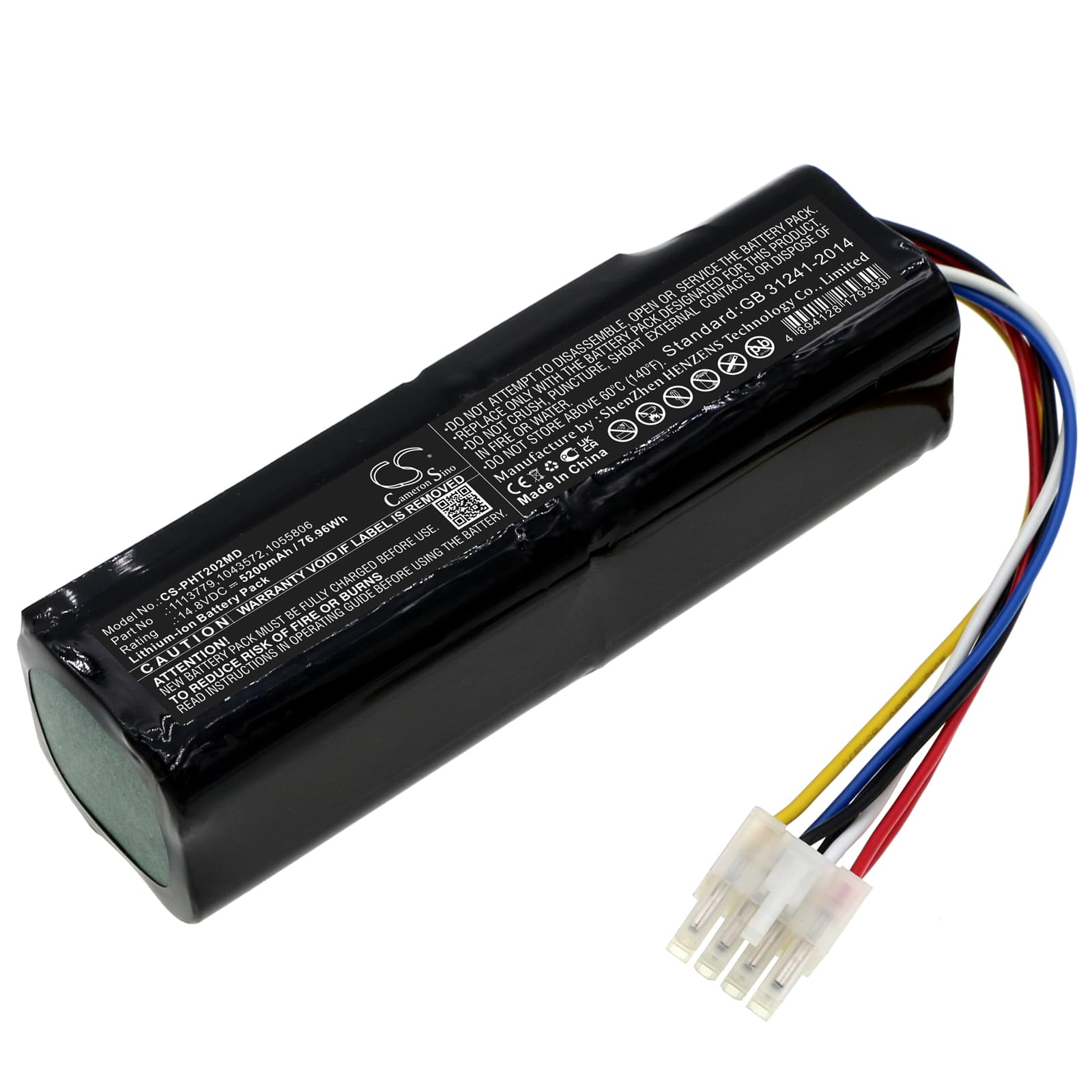

Philips Trilogy 202 — 14.8V Li-ion Replacement Battery (1113779)
This 14.8V 5200mAh (76.96Wh) Li-ion battery fits the Philips Trilogy 202 portable ventilator. It also cross-references OEM part numbers 1043572 and 1055806. The Trilogy 202 is a non-invasive ventilation device used in home and transport settings where continuous respiratory support is critical.
- Trilogy 202 platform compatibility: The Trilogy 202, Respironics REF 1043572, and Respironics Ultrafill configurations share the same 14.8V four-cell Li-ion architecture and battery connector. The BMS handshake protocol is identical across these variants, so the same replacement cell satisfies the charge controller on all three.
- Bench tested on actual hardware: We ran this cell through the Trilogy 202 charge cycle and monitored the BMS communication at startup. The battery passed the device's power-on self-test and accepted a full charge without triggering a fault code.
- Post-swap startup procedure: After installing this battery, let the Trilogy 202 complete its full power-on self-test without interruption. The device runs a BMS verification sequence at boot — cutting power during this window stores a false battery fault that persists until the next full reboot cycle.
Why the Trilogy 202 alarms low battery immediately after a confirmed full charge
The Trilogy 202's BMS compares internal cell state data against thresholds calibrated for the OEM cell chemistry. A new replacement cell arrives with no charge history, so the BMS has no learned capacity baseline for it yet. On the first one or two cycles, the device may flag a low battery alarm even when the cell is fully charged, because the BMS hasn't mapped the new cell's voltage curve. Run one complete charge-discharge cycle and the BMS recalibrates — the alarm clears on its own.
Trilogy 202 won't power on after the battery sat unused in storage
Li-ion cells self-discharge in storage. If the replacement battery has been sitting long enough, its resting voltage may have dropped below the Trilogy 202's BMS recovery threshold — typically around 10V for a 14.8V four-cell pack. The BMS treats anything below that threshold as a damaged or deeply discharged cell and blocks power-on entirely. Connect the battery to its charger for at least 30 minutes before attempting to power on the device; the charge IC applies a low-current pre-charge to bring the cell voltage back above the recovery threshold before the BMS will re-engage.
