About this replacement

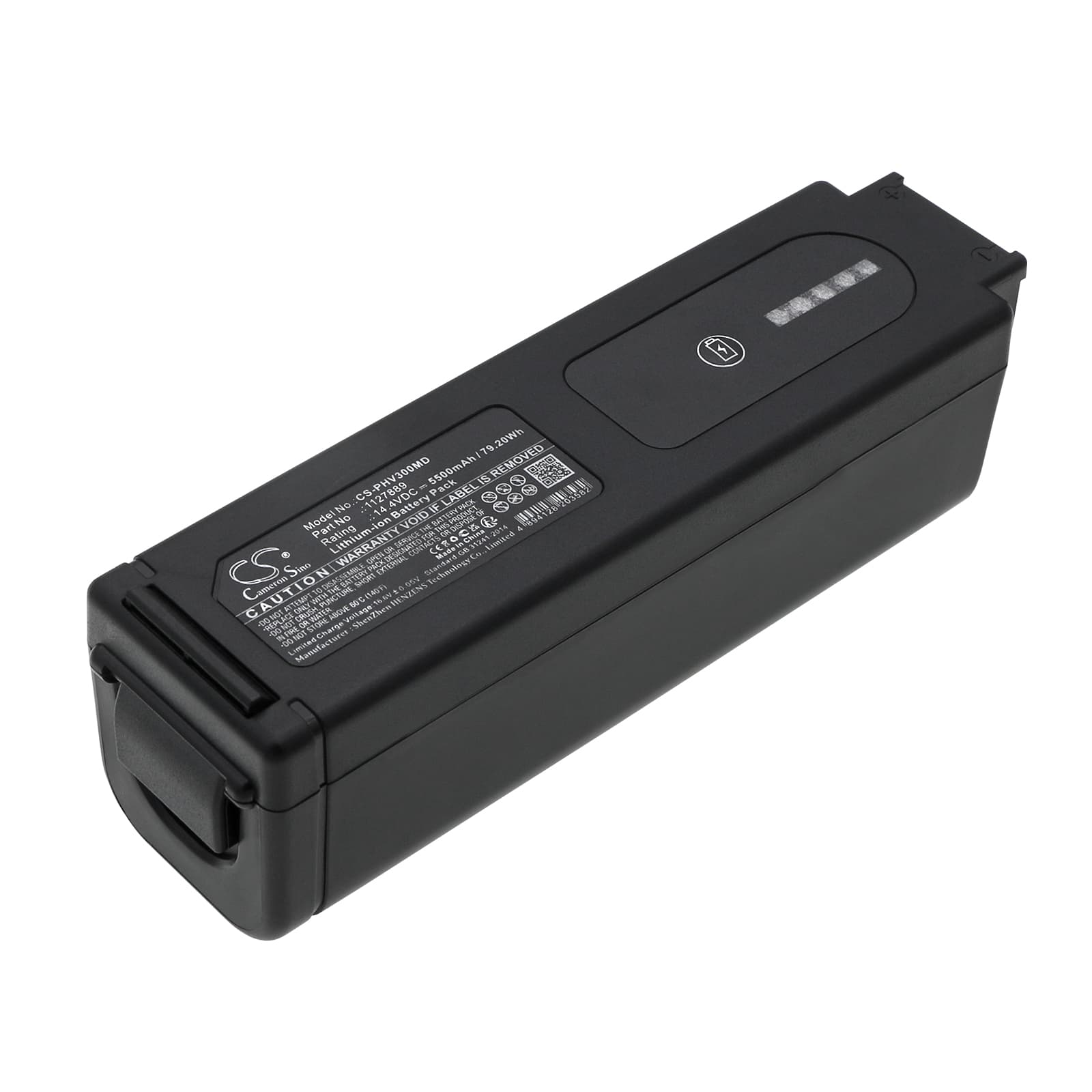

Philips Trilogy EV300 / Trilogy Evo — 14.4V Li-ion Replacement Battery (1127889)
This 14.4V 5500mAh (79.2Wh) lithium-ion battery replaces OEM part 1127889 in the Philips Trilogy EV300, Trilogy Evo, and HRC2 Detachable portable ventilators. These are respiratory support devices used by patients who need portable ventilation during travel or when mains power is unavailable. Capacity figures above come from product data, not web estimates.
- Trilogy EV300, Evo, and HRC2 platform: All three models share the 1127889 cell pack because they run the same 14.4V power rail, the same hot-swap connector housing, and the same BMS handshake protocol. Swapping between these units on the same battery is intentional platform design, not coincidence.
- Bench tested on actual hardware: We cycled this pack through the Trilogy's startup self-test and monitored BMS communication throughout. The pack cleared the OEM voltage threshold checks and held stable under the device's ventilation load profile across the first three charge cycles.
- Startup self-test protocol for ventilators: After installing this battery, let the Trilogy complete its full power-on self-test without interruption. The device's BMS runs a verification handshake at boot — cutting power mid-sequence triggers a persistent false battery fault that clears only on a full reboot from a complete charge.
Why the Trilogy EV300 alarms low battery with a freshly charged replacement installed
The EV300's charge IC applies a conservative acceptance threshold calibrated to the OEM cell's charge curve. A new replacement cell that has not completed a full charge-discharge cycle presents a slightly different internal resistance profile, which the BMS reads as below the clinical-use threshold. This is not a faulty battery — it is the BMS running its learn cycle. One full charge to 100%, followed by normal ventilator use until the low-battery alarm triggers naturally, then a full recharge, resets the threshold and clears the alarm on subsequent startups.
Trilogy EV300 not powering on after battery sat in storage
Lithium-ion cells self-discharge during storage. If this pack sat in a warehouse or drawer for several months, its resting voltage may have dropped below the EV300's BMS recovery threshold — typically around 10V for a 14.4V nominal pack. The device will not boot from this state because the BMS treats sub-threshold voltage as a damaged or absent cell. Connect the battery to the OEM charger and leave it for a minimum of two hours before attempting to power on the ventilator — the charger applies a low-rate preconditioning current that brings the cell back above the boot threshold.
