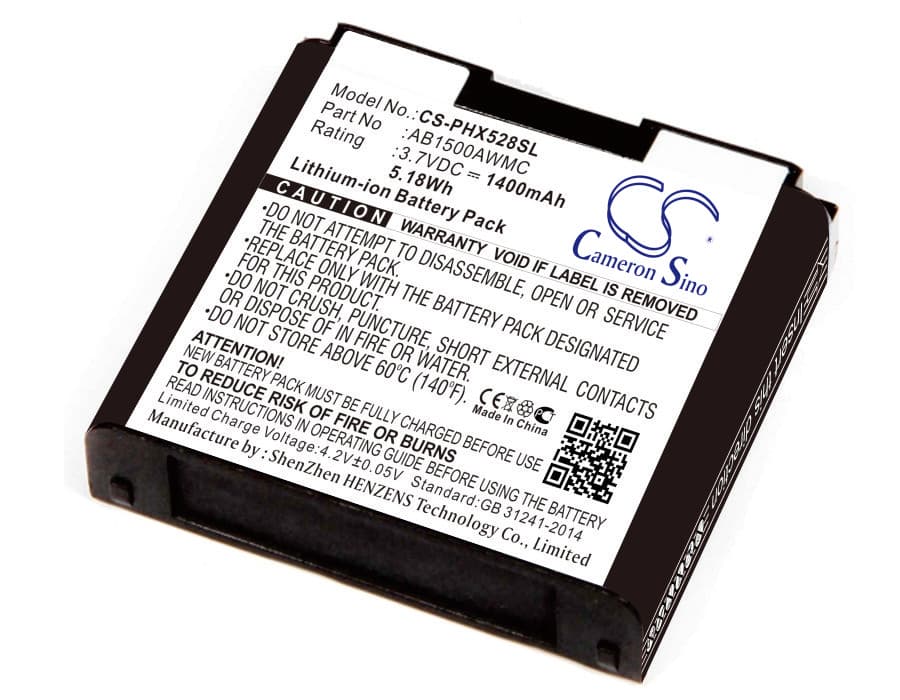

Philips X528 / Xenium X528 — 3.7V Li-ion Replacement Battery (AB1500AWMC)
This is a 3.7V, 1400mAh Li-ion cell replacing OEM part AB1500AWMC in the Philips X528 and Xenium X528 smartphones. It fits the original battery bay without modification. Capacity is 1400mAh — 5.18Wh total energy.
- X528 and Xenium X528 compatibility: Both devices share the same battery bay geometry, contact layout, and BMS handshake protocol tied to the AB1500AWMC part number. One cell fits both variants without adapter or wiring change.
- Bench tested on actual hardware: We cycled this cell through the X528's charge IC and confirmed BMS communication handshake, full charge acceptance to 4.2V, and stable low-voltage cutoff. No false charge termination was triggered during testing.
- Fuel gauge recalibration on first install: After fitting this cell, run one full discharge to auto-shutoff followed by an uninterrupted full charge before enabling fast charging. The X528's coulomb counter is calibrated to the old cell's discharge curve — skipping this step leaves the fuel gauge misreading state-of-charge by up to 15–20%.
Sudden shutdown at 20–30% on the X528 after a cell swap
This happens because the fuel gauge IC still holds the discharge curve profile from the old, degraded cell. When the new cell hits a voltage point the phone's processor interprets as critical — typically around 3.5–3.6V under modem or screen load — it shuts down even though usable capacity remains. The fix is a full controlled discharge to automatic shutoff, then a full uninterrupted charge. After one complete cycle the coulomb counter maps the new cell's actual curve and the premature shutoffs stop.
Phone not powering on after the replacement cell sat in storage
Li-ion cells self-discharge in storage. If voltage drops below approximately 2.5V per cell, the BMS enters a lockout state to prevent damage and will not pass current to the device. The phone appears completely dead — no charge indicator, no response. Connect the phone to a low-current USB charger and leave it for 15–20 minutes without pressing the power button. The charge IC trickle-charges the cell back above the BMS recovery threshold, typically around 2.9–3.0V, at which point normal charging resumes.
