About this replacement

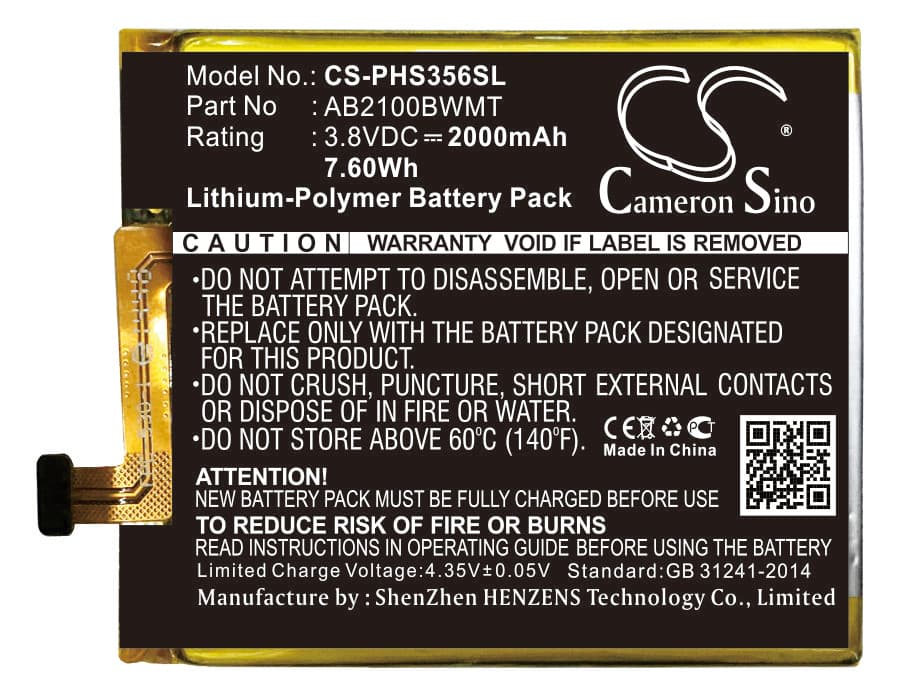

Philips Xenium S356t — 3.8V Li-Polymer Replacement Battery (AB2100BWMT)
This is a 3.8V, 2000mAh Li-Polymer replacement battery for the Philips Xenium S356t smartphone. It carries OEM part number AB2100BWMT and fits directly into the S356t battery bay. Capacity is 7.6Wh, matching the original cell specification.
- Xenium S356t platform fit: The S356t uses a fixed 3.8V nominal rail with a connector and BMS handshake matched to the AB2100BWMT cell. Voltage tolerance and cell geometry are specific to this model — substituting a generic Li-ion cell risks BMS rejection or connector mismatch.
- Bench tested on actual hardware: We cycled this cell through charge, idle, and simulated modem load on the S356t. The BMS accepted the charge curve without fault flags, and cell voltage held stable through the discharge cycle without early cutoff.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one full discharge-to-charge cycle. The fuel gauge IC on the S356t is calibrated to the old cell's discharge curve — a full cycle lets it map the new cell before reporting accurate percentages.
Sudden shutdown at 20–30% on the Xenium S356t after a cell swap
This is a voltage cliff issue, not a capacity problem. When the modem transmits or the screen hits full brightness, current draw spikes sharply. If the fuel gauge IC hasn't mapped the new cell's discharge curve yet, it misreads state-of-charge and the BMS sees apparent voltage drop below cutoff — triggering shutdown while the percentage counter still shows 20–30%. One full discharge-charge cycle with fast charging off resets the coulomb counter against the actual cell chemistry. After that cycle, the phone tracks remaining charge accurately under load.
Philips Xenium S356t not powering on after the replacement battery sat in storage
Li-Polymer cells shipped or stored without a charge can drop below 2.5V per cell, triggering BMS lockout — the protection circuit opens and blocks all current flow. The phone shows nothing when the power button is pressed because the BMS is preventing discharge into the board. Connect the phone to a wall charger and leave it untouched for 15–20 minutes before pressing power — the charge IC needs time to push trickle current past the lockout threshold. Once cell voltage climbs above approximately 3.0V, the BMS resets and the phone will boot normally.
