About this replacement

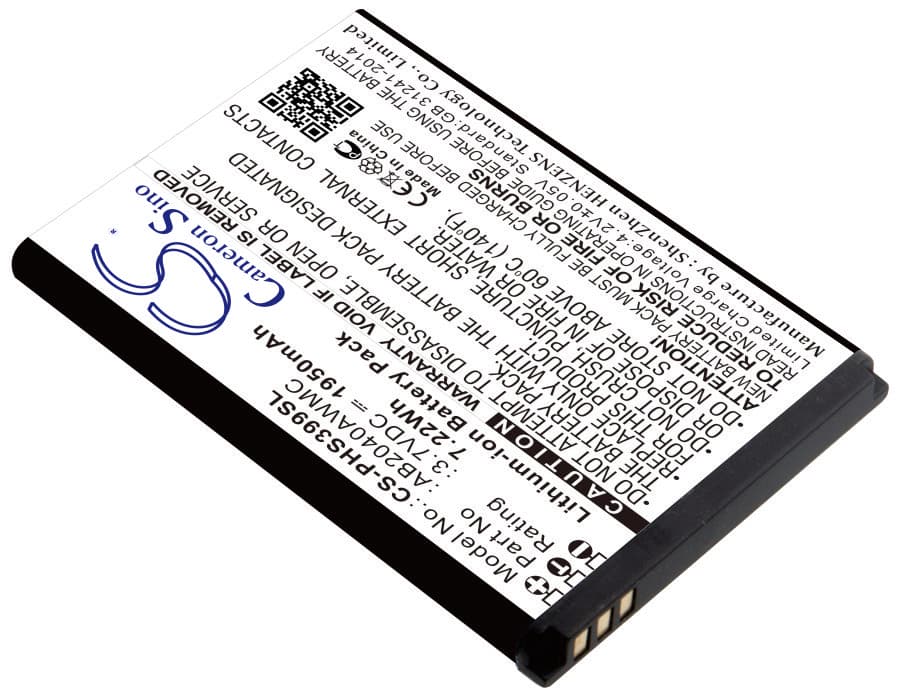

Philips Xenium S399 — 3.7V Li-ion Replacement Battery (AB2040AWMC)
This is a 3.7V, 1950mAh Li-ion replacement battery for the Philips Xenium S399 smartphone. It replaces OEM part AB2040AWMC and restores power to the phone's processor, display, and radio stack. Fit the correct cell when the original no longer holds a charge or fails to power the device through a normal day.
- Xenium S399 cell compatibility: The S399 uses a 3.7V single-cell Li-ion configuration with a proprietary connector that matches this cell's contact layout. The phone's charge IC and fuel gauge IC are both calibrated to this voltage range — fitting a mismatched cell will cause immediate BMS rejection or inaccurate percentage reporting.
- Bench tested on actual hardware: We ran the AB2040AWMC replacement through charge and discharge cycles on the S399 platform. The BMS accepted the cell without fault codes, charge IC entered CC/CV mode correctly, and the fuel gauge IC tracked state-of-charge without erratic jumps after one full calibration cycle.
- Fuel gauge recalibration on first use: On first installation, disable fast charging if available and run one complete discharge down to auto-shutoff, then charge uninterrupted to 100%. This lets the coulomb counter recalibrate its discharge curve against the new cell before high-current charging pushes current into an uncalibrated state-of-charge register.
Sudden shutdown at 20–30% on the Xenium S399 after a cell swap
The S399's fuel gauge IC builds its state-of-charge model against the original cell's discharge curve. A new cell has a different internal resistance profile, so the coulomb counter can misread remaining capacity by 15–25%. Under modem load or screen brightness spikes, the phone sees a voltage drop that hits the BMS cutoff threshold — even though the reported percentage reads 20–30%. One full discharge-charge cycle corrects the fuel gauge IC's reference map and stops these early shutoffs.
Philips Xenium S399 not powering on after sitting in storage
Li-ion cells discharged below approximately 2.5V trip the BMS into a protective lockout state. The S399 will show no response — no boot screen, no charging indicator — when the cell has self-discharged past this threshold in storage. Connect to a wall charger, not a USB port, and leave it for 15–20 minutes without attempting to power on. The charge IC needs time to trickle current into the cell and bring it above the BMS re-enable threshold of around 2.9V before the phone will respond.
