About this replacement

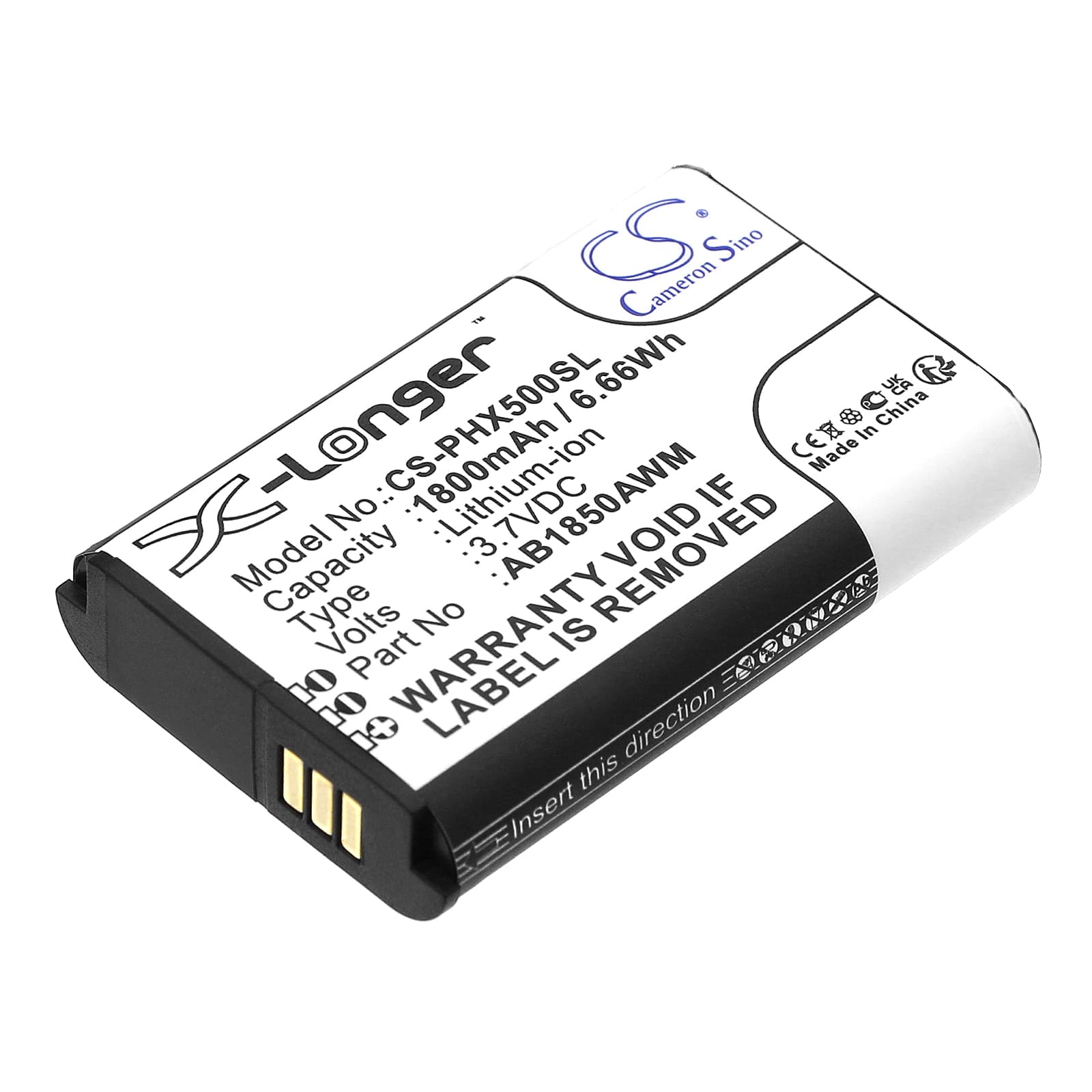

Philips Xenium X500 / Xenium 9@9K — 3.7V Li-ion Replacement Battery (AB1850AWM)
This is a 3.7V 1800mAh Li-ion cell for the Philips Xenium X500, Xenium 9@9K, and Xenium 9A9K smartphones. It replaces OEM part AB1850AWM when the original cell no longer holds a usable charge. Capacity is 6.66Wh at the rated 3.7V nominal voltage.
- Xenium X-Longer series fit: The X500 and 9@9K share the same battery bay dimensions and connector pinout — 52.02 × 34.36 × 10.22 mm with a matched BMS handshake. Both phones draw from the same 3.7V rail, so a single cell covers the full fit list without modification.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on a Xenium X500 unit. The BMS accepted charge without flagging an incompatible cell, and protection cutoffs triggered correctly at the low-voltage threshold without false trips mid-session.
- First-cycle fuel gauge calibration: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle. The fuel gauge IC carries calibration data from the old cell curve. One full cycle at standard current lets it remap to the new cell before any high-current charging begins.
Why the Xenium X500 reports wrong battery percentage after a cell swap
The Xenium X500 uses a fuel gauge IC that tracks charge state using a coulomb counter calibrated to the original cell's discharge curve. When you swap in a new cell, that stored curve no longer matches the actual cell chemistry and impedance. The IC will report inaccurate percentages — often reading high early and then dropping suddenly — until it recalibrates. One full discharge from 100% to auto-off, followed by a full charge, resets the coulomb counter against the new cell.
Sudden shutdown at 20–30% on the replacement cell
This is a voltage cliff issue, not a capacity fault. Under modem transmission load or screen-on draw, the cell voltage sags below the BMS protection threshold before the fuel gauge reads zero. On a freshly installed cell, this happens more often because the fuel gauge IC is still using an old discharge curve with a miscalibrated low-voltage endpoint. The fix is the same calibration cycle — discharge fully until the phone shuts itself off, then charge uninterrupted to 100%. After that cycle, the gauge maps the actual voltage floor of the new cell, and the shutdown threshold aligns correctly around 3.4–3.5V.
