About this replacement

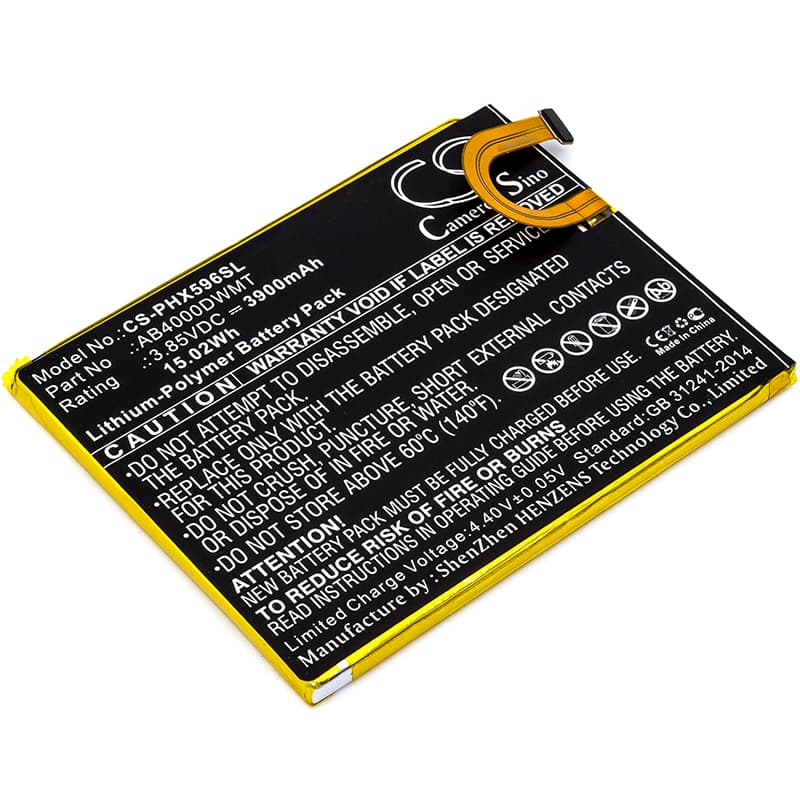

Philips Xenium X596 / CTX596 — 3.85V Li-Polymer Replacement Battery (AB4000DWMT)
This is a 3.85V, 3900mAh (15.02Wh) Li-Polymer cell for the Philips Xenium X596 and Xenium CTX596 dual-SIM smartphones. It replaces OEM part numbers AB4000DWMT and AB4000DWMV. Fit this when the original cell no longer holds a usable charge or the phone shuts down unexpectedly under load.
- X596 and CTX596 shared platform: Both handsets run the same 3.85V battery rail and use identical connector geometry and BMS handshake logic — one cell covers both variants without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the X596 platform. The BMS accepted the full charge cycle without cutoff errors, and the protection circuit responded correctly to load spikes from the dual-SIM modem stack.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-charge cycle at standard rate. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging begins on an uncalibrated cell.
Sudden shutdown at 20–30% on the Xenium X596
This is a voltage cliff failure. The cell voltage drops sharply under combined modem and display load before the percentage reading catches up. The phone's PMIC interprets the voltage drop as a critically low state and triggers an emergency shutdown — even though the OS still shows 20–30% remaining. It happens most often when both SIM slots are active simultaneously and the screen is on at full brightness. Run one full discharge cycle to let the coulomb counter re-anchor its zero-voltage reference point against the new cell.
Phone won't power on after sitting in storage with a flat battery
Li-Polymer cells that drop below approximately 2.5V trigger a BMS protection lockout — the circuit opens to prevent damage and the phone will not respond to a normal charge connection. Plug in via USB and leave for 15–20 minutes without attempting to power on; the charge IC trickle-charges the cell back above the lockout threshold at a low current rate. Once voltage recovers to around 3.0V, the BMS re-initialises and the phone should respond normally. If the cell remains unresponsive after 30 minutes on charge, the cell has likely suffered irreversible over-discharge.
