About this replacement

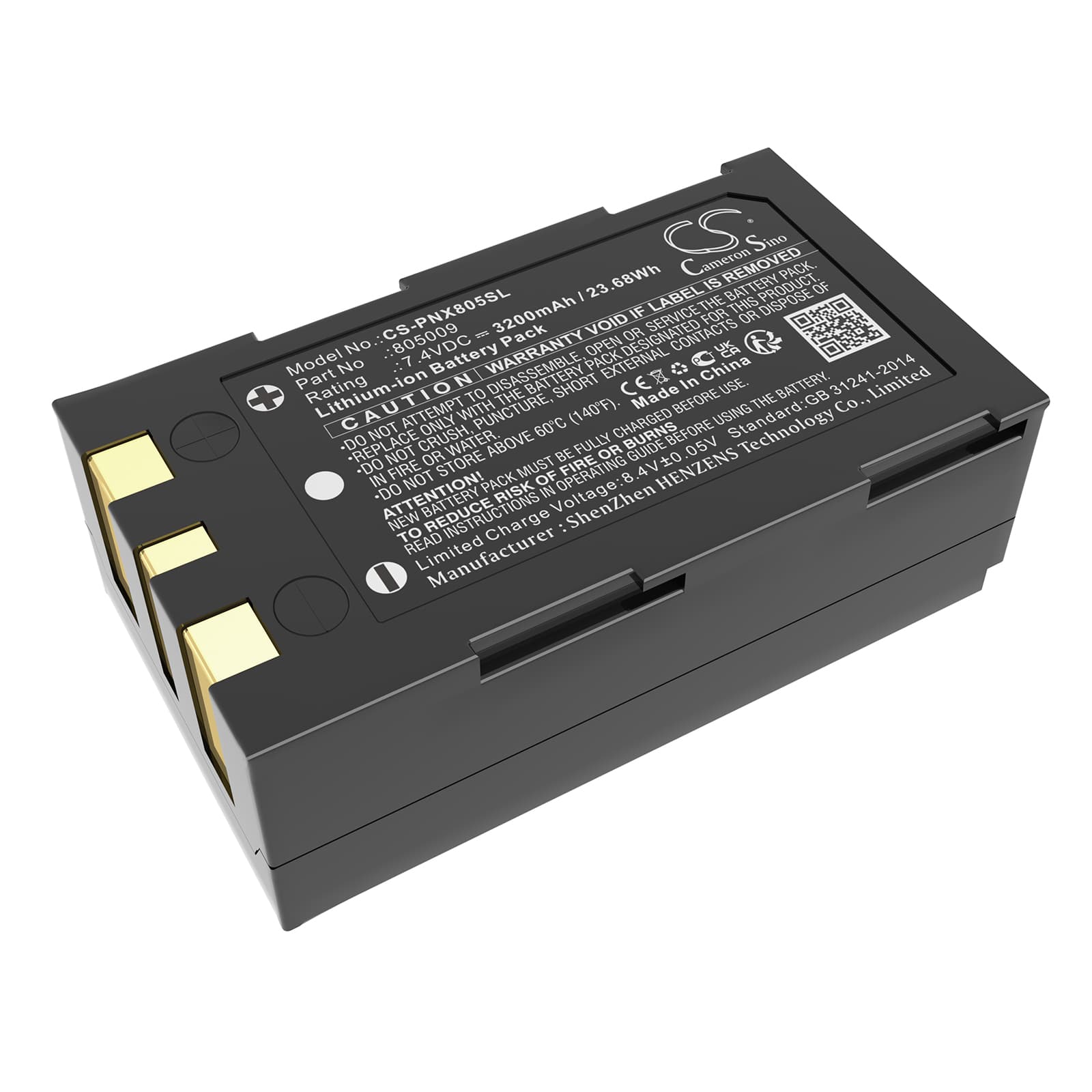

Phoenix Contact ThermoFOX / Thermomark GO — 7.4V Li-ion Replacement Battery (805009)
This 7.4V, 3200mAh Li-ion battery replaces the original pack in the Phoenix Contact ThermoFOX, Thermomark GO, and Thermomark GO.K portable label printers. These are industrial handheld thermal printers used for on-site labeling, cable marking, and field documentation. OEM part numbers 805009, S828021, and VBK100 all cross to this cell configuration.
- ThermoFOX, Thermomark GO, and GO.K compatibility: All three models share the same 7.4V nominal rail, physical form factor (71.30 × 41.00 × 23.60mm), and BMS handshake protocol — one battery pack covers the full platform without modification.
- Bench tested on actual hardware: We cycled this pack through repeated print jobs on the Thermomark GO, monitoring BMS current limiting during thermal head warm-up and paper feed motor engagement. The BMS held stable across both high-draw phases without tripping into protection mode.
- First-deploy print sequence: After installing this pack, charge it fully, then run five consecutive print jobs before field deployment. The ThermoFOX and Thermomark GO both use the initial print cycles to establish the BMS current profile for the thermal head — skipping this step can cause inconsistent head temperature on the first real job.
Why the Thermomark GO disconnects from Bluetooth mid-job
The Thermomark GO's Bluetooth radio and thermal head draw current simultaneously during a print job. When battery voltage sags below roughly 6.8V under combined load, the radio module loses enough power to drop its connection — even if the printer still appears to be on. This is a voltage sag issue, not a firmware or pairing issue. A degraded original battery that reads "charged" at idle will still sag under the combined draw. A fresh pack at full charge maintains the voltage headroom needed to keep both subsystems stable throughout the job.
Paper feed jamming on a battery that still shows charge
The paper feed motor in the ThermoFOX requires a minimum torque threshold to advance label stock cleanly through the mechanism. As a Li-ion cell ages and internal resistance rises, voltage under motor-start load drops sharply — even if the resting voltage looks acceptable. The result is a feed motor that stalls or stutters, which the printer reports as a paper jam rather than a power fault. If clearing the paper path doesn't fix the jam, check resting voltage with a multimeter: anything below 7.2V at rest on a "fully charged" pack points to a degraded cell that needs replacing.
