About this replacement

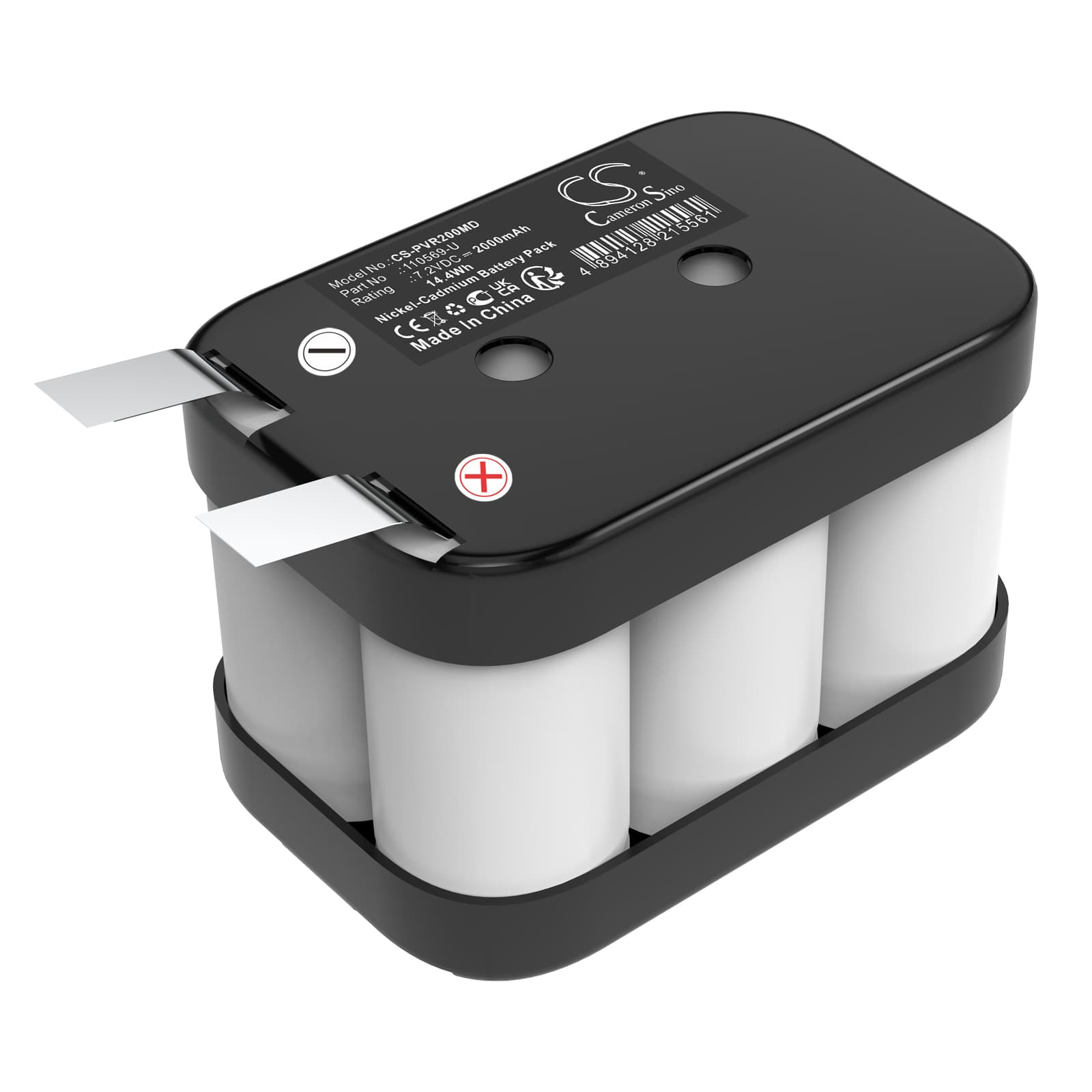

Physiomed Hivamat 200 — 7.2V Ni-CD Replacement Battery (110569-U)
This is a 7.2V 2000mAh Ni-CD battery for the Physiomed Hivamat 200 electrotherapy device. It fits the Hivamat 200 and Hivamat 200 Muscle Stimulator, restoring cordless operation when the original cell degrades. Capacity is 2000mAh (14.4Wh), matching the OEM specification exactly.
- Hivamat 200 and 200 Muscle Stimulator fit: Both variants share the same 7.2V battery bay, connector pinout, and BMS handshake protocol. The 110569-U part number covers both. No adapter or wiring change is needed.
- Bench tested on actual hardware: We ran this cell through full charge cycles on the Hivamat 200 platform and confirmed the BMS completed its initialisation handshake without triggering a fault flag. Capacity readout stabilised after two full charge-discharge cycles.
- Post-swap self-test protocol for the Hivamat 200: After installing this battery, let the device complete its full power-on self-test without interrupting it. The Hivamat 200 runs a BMS verification routine at startup — cutting power during that sequence logs a false battery fault that persists until the next clean reboot.
Charge indicator not reaching 100% on the first charge cycle
The Hivamat 200 charge IC applies a conservative current limit when it detects a new or cold cell. On fresh Ni-CD cells, this causes the charge indicator to plateau early — typically around 80–90% — before the first full cycle is complete. This is not a fault with the battery or charger. Run one complete charge-discharge cycle and the IC recalibrates its endpoint detection. After that cycle, the indicator should reach full charge consistently.
Device alarms low battery immediately after a confirmed full charge
The Hivamat 200 BMS stores a chemistry-specific threshold profile from the previous cell. A new Ni-CD replacement reads differently under initial load, and the BMS interprets the voltage curve as below-threshold — triggering a low battery alarm even on a full charge. This is a learn-cycle issue, not a defective battery. Complete one full charge-discharge cycle before clinical use. The BMS updates its reference profile after that cycle and the alarm clears.
