About this replacement

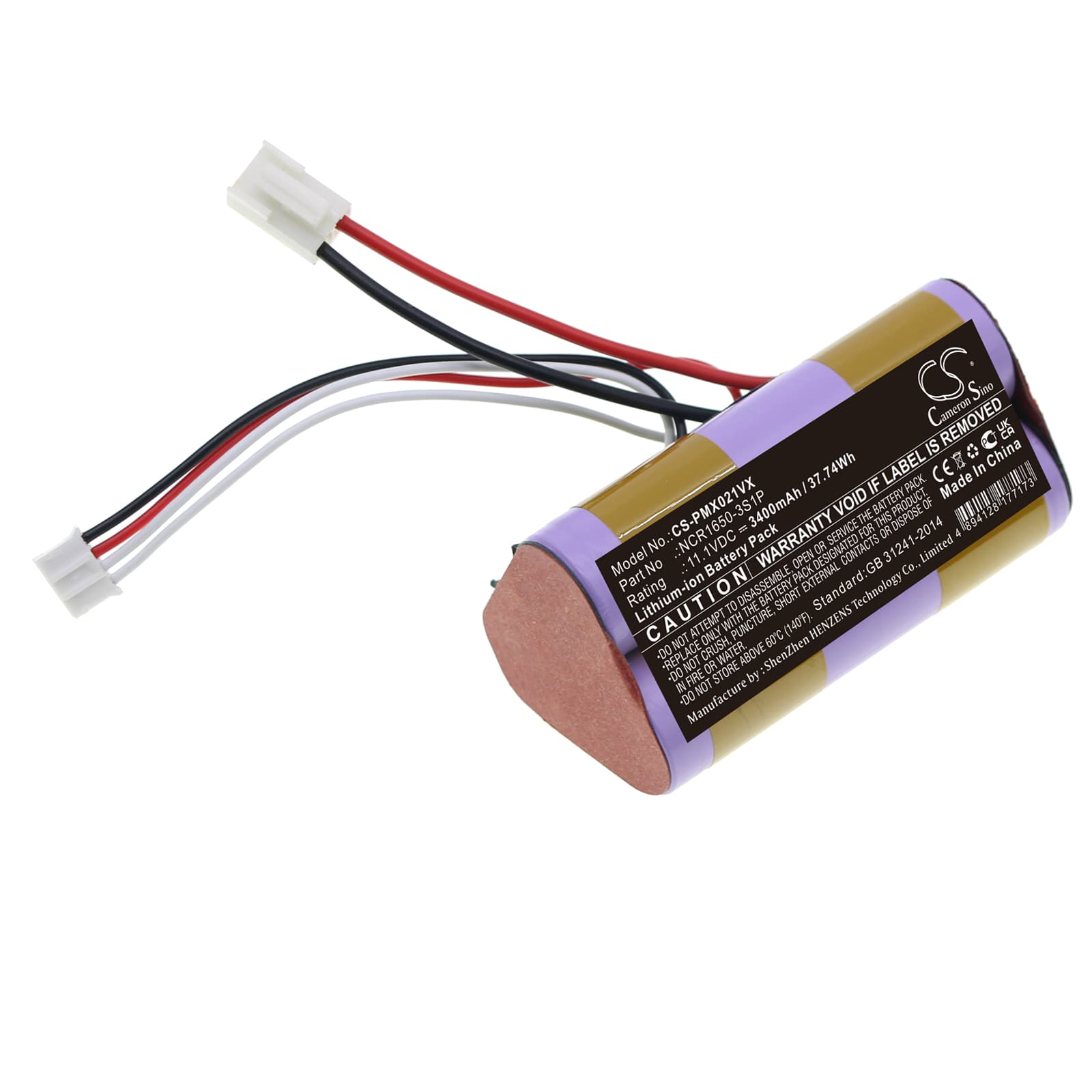

Plus Minus Zero XJC-Y010 / XJB-B021 — 11.1V Li-ion Replacement Battery (NCR1650-3S1P)
This 11.1V 3400mAh Li-ion battery replaces the original NCR1650-3S1P pack in the Plus Minus Zero XJC-Y010 and XJB-B021 cordless vacuum cleaners. It fits directly into both models and restores full motor voltage to the cleaning head. Capacity matches the factory spec at 3400mAh (37.74Wh).
- XJC-Y010 and XJB-B021 compatibility: Both models run the same 11.1V three-cell series configuration and share the NCR1650-3S1P pack format, connector orientation, and BMS communication protocol — so one battery covers both platforms without modification.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the XJC-Y010 motor assembly. The BMS handled start-up current draw without tripping, and cell balance stayed within spec across repeated cycles.
- Dock charging habit on the XJC-Y010: These vacuums are often left sitting on the charging cradle between uses. The BMS does not fully interrupt charge current when the pack reaches capacity — continuous trickle input accelerates cell degradation faster than normal cycle wear. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
The XJC-Y010 motor draws higher current when the filter is partially blocked — the fan has to work harder to pull the same airflow. This elevated draw causes voltage to sag across the cells before the indicator registers a low charge state. The vacuum feels like it's losing power early, but the battery isn't the only factor. Clean or replace the filter first, then test under normal load — if suction holds steady, the pack was compensating for a restriction, not failing on its own.
Motor cuts out mid-use then recovers after a short pause
This is a BMS overcurrent trip, not a motor fault. When sustained suction is restricted — blocked filter, clogged nozzle, or dense carpet — current draw spikes past the BMS threshold and the pack disconnects to protect the cells. The battery recovers once temperature and load drop, which is why the vacuum restarts after a pause. Clear the blockage, check the filter is seated correctly, and confirm the pack rests at 12.4V or above before the next use — a low starting voltage tightens the margin before the BMS trips again.
