About this replacement

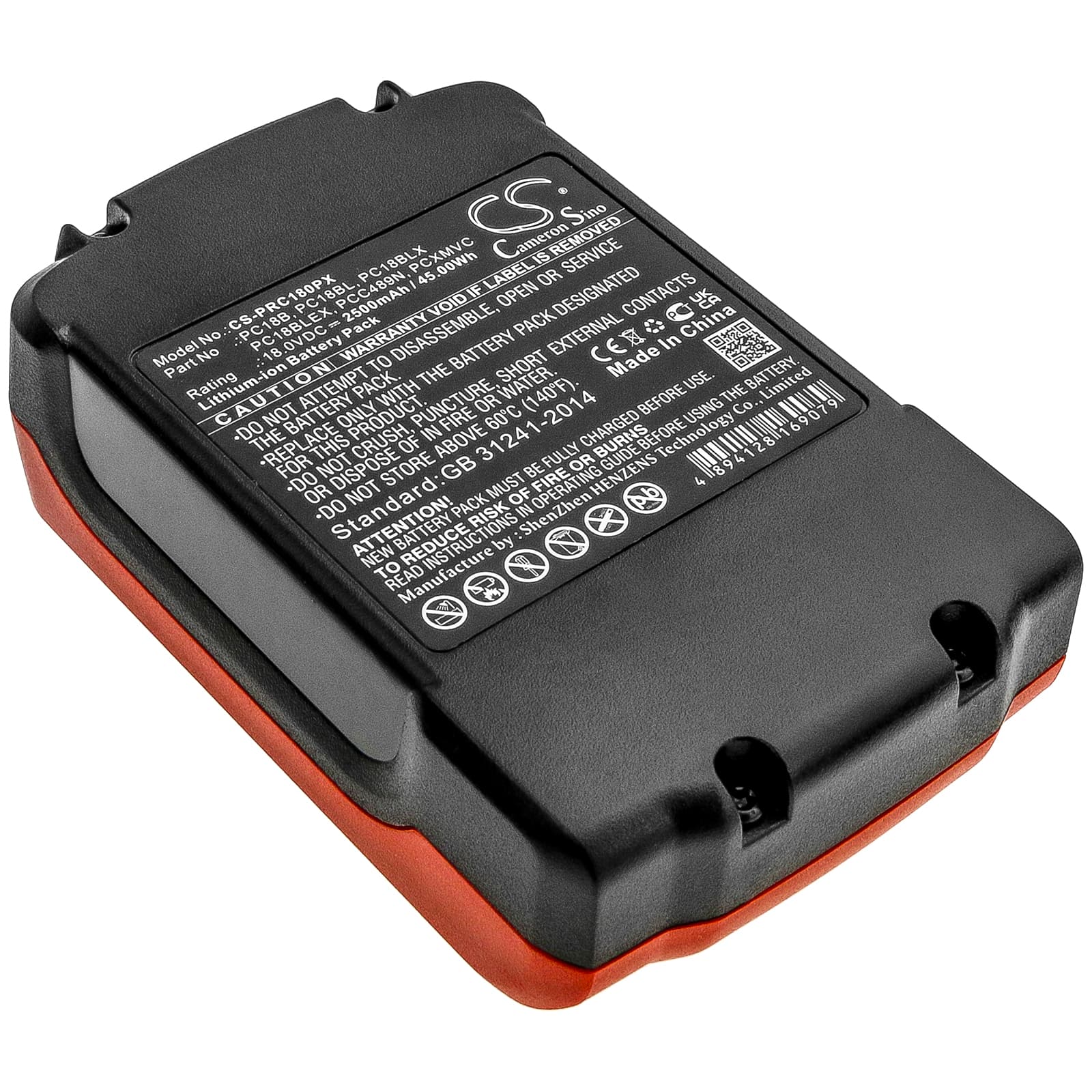

Porter Cable PC18CS Series — 18V Li-ion Replacement Battery (PC18B / PC18BLX)
This is an 18V Li-ion replacement battery rated at 2500mAh (45Wh) for Porter Cable cordless power tools. It fits the PC18CS, PC1800RS, PC1800D, PC1801D, and related 18V platform models. The cell pack matches the original voltage rail and connector footprint used across these tools.
- PC18CS platform compatibility: Every model in this fit list runs the same 18V rail with the same battery connector and BMS handshake protocol. Swapping between a drill, circular saw, or impact driver on this platform works because the electrical interface is identical across the series — not just the physical housing.
- Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on a PC18CS drill and a circular saw from the same platform. The BMS handled motor-start inrush current without tripping on either tool, and cell voltage recovery after load matched expected Li-ion behaviour at 18V nominal.
- Break-in load for saw applications: On first use in a circular saw, run two cuts at half depth before full-load ripping. This lets the BMS log the higher inrush current from the saw motor before it sets its overcurrent threshold — reduces false cutoffs during the first full-load session.
BMS cutoff on motor-start inrush surge with PC18CS tools
Li-ion BMS circuits protect cells by cutting current if the draw exceeds a set threshold. On trigger pull, drill and saw motors spike well above their running current — this inrush lasts only milliseconds, but a cold or storage-discharged pack has higher internal resistance, which amplifies the voltage drop the BMS reads as an overcurrent event. The BMS interprets that drop as a fault and cuts the output. Fully charging the pack before first use, and warming it to room temperature, lowers internal resistance enough that the BMS threshold is no longer triggered on start.
Tool bogs under load and loses torque mid-cut
This is voltage sag — distinct from a BMS cutoff because the tool keeps running but loses power under sustained draw. The cause is usually oxidised or loose battery terminal contacts, which add resistance to the circuit and cause the rail voltage to drop under load. Clean the battery terminals and the tool's contact plate with a dry cloth or fine abrasive, then seat the pack firmly until it clicks. If sag continues after cleaning, check cell voltage with a multimeter — a healthy 18V Li-ion pack should read between 19.8V and 20.5V on a full charge.
