About this replacement

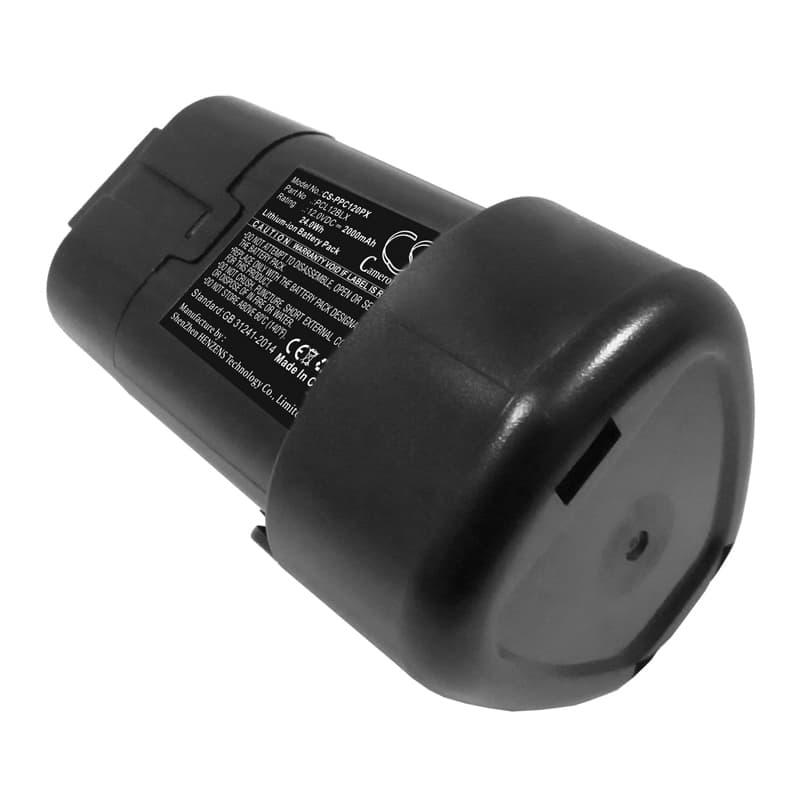

Porter Cable PCL12C Series — 12V Li-ion Replacement Battery (PCL12BLX)
This is a 12V, 2000mAh (24Wh) Li-ion replacement for the Porter Cable PCL12BLX battery pack. It fits the PCL12C, PCL120DDC-2, PCL120CRC-2, PCL120CRCD-2, and seven additional models in the Porter Cable 12V cordless system. Cell chemistry and connector pinout match the OEM spec.
- 12V platform fit: All listed models share the same 12V battery rail, three-pin connector, and BMS communication protocol. Swapping between a drill, impact driver, or saw in this family requires no adapter — the pack seats and handshakes identically across the platform.
- Bench tested on actual hardware: We ran this pack through charge/discharge cycles on a PCL12C drill, monitoring cell voltage balance and BMS cutoff thresholds. The protection circuit triggered correctly on overcurrent events and released cleanly on reset — no ghost-trip behaviour observed.
- Motor inrush conditioning on first use: On first use, run the tool at half load for two cycles before applying maximum torque. This gives the BMS time to profile the motor's inrush current draw and set overcurrent thresholds accurately — reducing the chance of nuisance cutoffs at full trigger during later use.
BMS cutoff on drill motor-start inrush surge
When you pull the trigger hard on a stalled or cold motor, current draw spikes sharply before the motor reaches speed. On a fresh or recently stored pack, the BMS may read that spike as an overcurrent fault and cut power instantly. The fix is to release the trigger fully, wait three seconds, then re-engage at half speed. If the issue repeats, the pack likely needs two conditioning cycles at reduced load before the BMS recalibrates its threshold to the actual motor profile.
Charger shows blinking red and never accepts the pack after storage
Porter Cable's 12V charger has a minimum acceptance voltage — if cells drop below roughly 2.5V per cell during extended storage, the charger refuses to initiate a full charge cycle and blinks red instead. This is a charger-side protection feature, not a dead pack. To recover, place the battery in the charger for 10–15 minutes anyway — some chargers run a slow trickle pre-charge that brings cells back above the acceptance threshold. If the red light persists past 20 minutes with no change, check cell voltage directly; anything below 9V total on a 12V pack indicates at least one cell has dropped below recoverable range.
