About this replacement

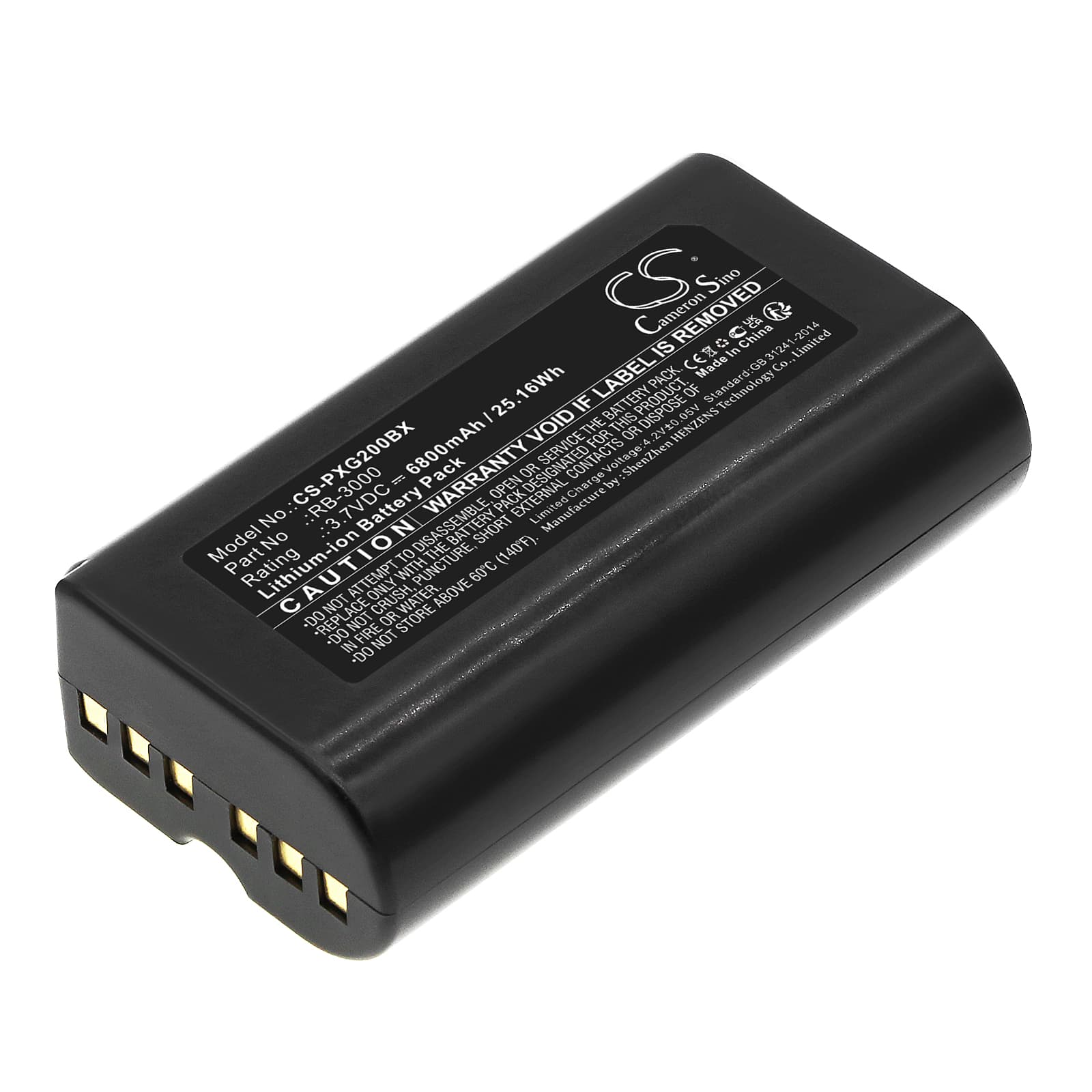

Posiflex PG-200 — 3.7V Li-ion Replacement Battery (RB-3000)
This 3.7V, 6800mAh Li-ion battery replaces the OEM RB-3000 pack in the Posiflex PG-200 handheld barcode scanner. The PG-200 is used in retail and warehouse environments for point-of-sale scanning and stock inventory tracking. A degraded original pack cuts scanning shifts short — this replacement restores full operating capacity.
- PG-200 platform fit: The RB-3000 form factor is specific to the PG-200 housing — the cell stack dimensions (73.00 × 41.70 × 21.80mm) and connector orientation match the OEM bay directly. The BMS voltage thresholds also align with the PG-200's charge circuit, so the cradle recognises the pack without fault codes.
- Bench tested on actual hardware: We cycled this pack through scan-trigger and wireless radio simultaneous draw — the BMS held stable across burst sequences without tripping. Charge acceptance from the PG-200 cradle was clean on both a standard dock and a multi-bay charging station.
- First-shift preparation: After installing, seat the scanner in its cradle and run a full charge cycle before use. Scan trigger inrush current is highest when the cell sits near minimum voltage — a fully charged pack prevents false BMS trips on the first pick-and-pack shift.
Cradle showing a charging error on a new RB-3000 pack
A charging error on a freshly installed pack almost always comes down to contact resistance at the dock interface, not a faulty cell. Dust, oxidation, or residue on the battery's gold contacts blocks the charge handshake between the pack and the PG-200 cradle. Wipe the contacts on both the battery and the dock with a dry lint-free cloth, then reseat the scanner firmly until the cradle LED changes state. If the error persists, check the dock contacts for physical damage — the charge pin voltage at the dock should read 4.2V under no-load conditions.
Scanner losing wireless connection during rapid scan bursts
During a fast scan burst, the PG-200 draws simultaneously from the imager and the wireless radio — combined inrush can cause a momentary voltage sag on a partially discharged pack. When cell voltage dips below the BMS protection threshold during that combined draw, the scanner drops its wireless link before the BMS fully trips. This is more common mid-shift when the pack is below 30% charge. Keep the pack above that level during high-frequency scanning runs, or rotate to a charged spare at the cradle before the drop occurs.
