About this replacement
Pyle PPBCM6 — 3.8V Li-Polymer Replacement Battery (1044436)

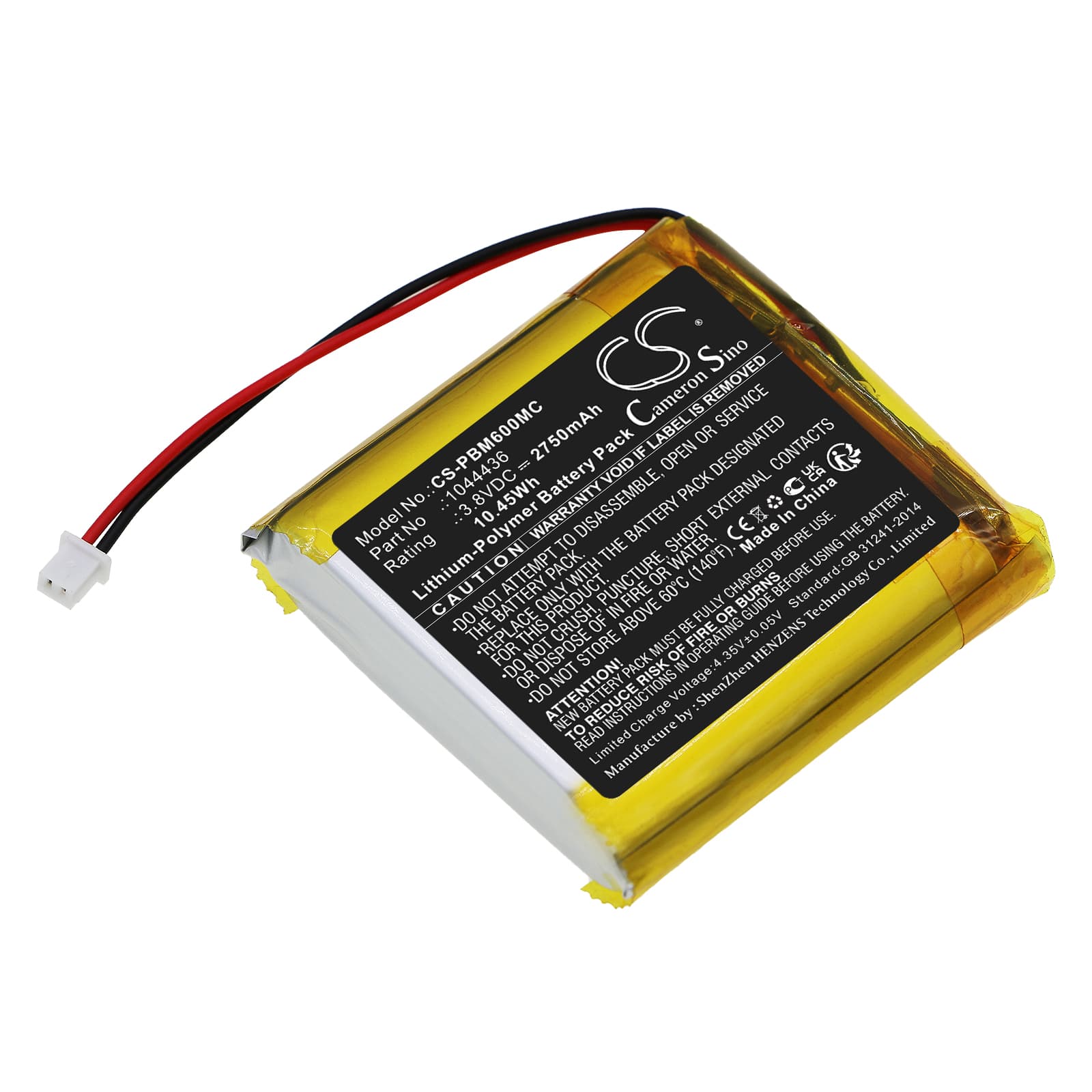

This 3.8V, 2750mAh lithium-polymer battery replaces the original cell in the Pyle PPBCM6 body-worn camera. The PPBCM6 is a compact wearable recording unit used in law enforcement, security, and personal safety roles. Swap this in when the original pack can no longer hold charge through a full shift.
- PPBCM6 platform fit: The PPBCM6 uses a slim Li-Polymer cell with a 3.8V nominal rail to feed both the image sensor and the onboard storage controller simultaneously. This replacement matches that voltage, the physical footprint (44.50 × 41.80 × 10.80mm), and the OEM part reference 1044436.
- Bench tested on actual hardware: We cycled this cell under a combined video-record and WiFi-upload load profile — the two highest draw states the PPBCM6 runs concurrently. The BMS held protection thresholds correctly and did not trip under that sustained draw.
- Post-swap power-up check: After fitting this battery, power the camera on and wait for its self-check to complete before mounting it for a shift. The PPBCM6 runs a boot-state verification on startup — if it does not reach ready status, remove and reseat the battery rather than assuming a fault with the cell.
Why the PPBCM6 runs warm during extended recording sessions
The PPBCM6 generates heat from two concurrent loads: continuous video encoding and the cellular or WiFi radio transmitting footage in real time. That combined draw pulls sustained current from the Li-Polymer cell, and the heat generated is partly from internal cell resistance, not just the camera's processor. At 3.8V nominal, the cell is working near the top of its charge window during the first portion of a shift, which is also when heat output is highest. If the body gets uncomfortably warm, check that the camera's wireless upload function is not active when not needed — disabling it cuts the sustained draw significantly.
Battery indicator showing low after only a short recording session
A new Li-Polymer cell sometimes reports an inaccurate state-of-charge on the first one or two cycles because the camera's fuel gauge has calibrated itself to the degraded curve of the old battery. The indicator reads low early because the camera expects voltage to sag faster than the new cell actually does. Run the battery down to automatic shutdown once, then charge it fully to 4.2V — the camera's gauge recalibrates against the real discharge curve after that cycle. If the indicator still reads low immediately after a full charge, check the charging source is delivering the correct voltage rather than swapping the battery again.
