About this replacement

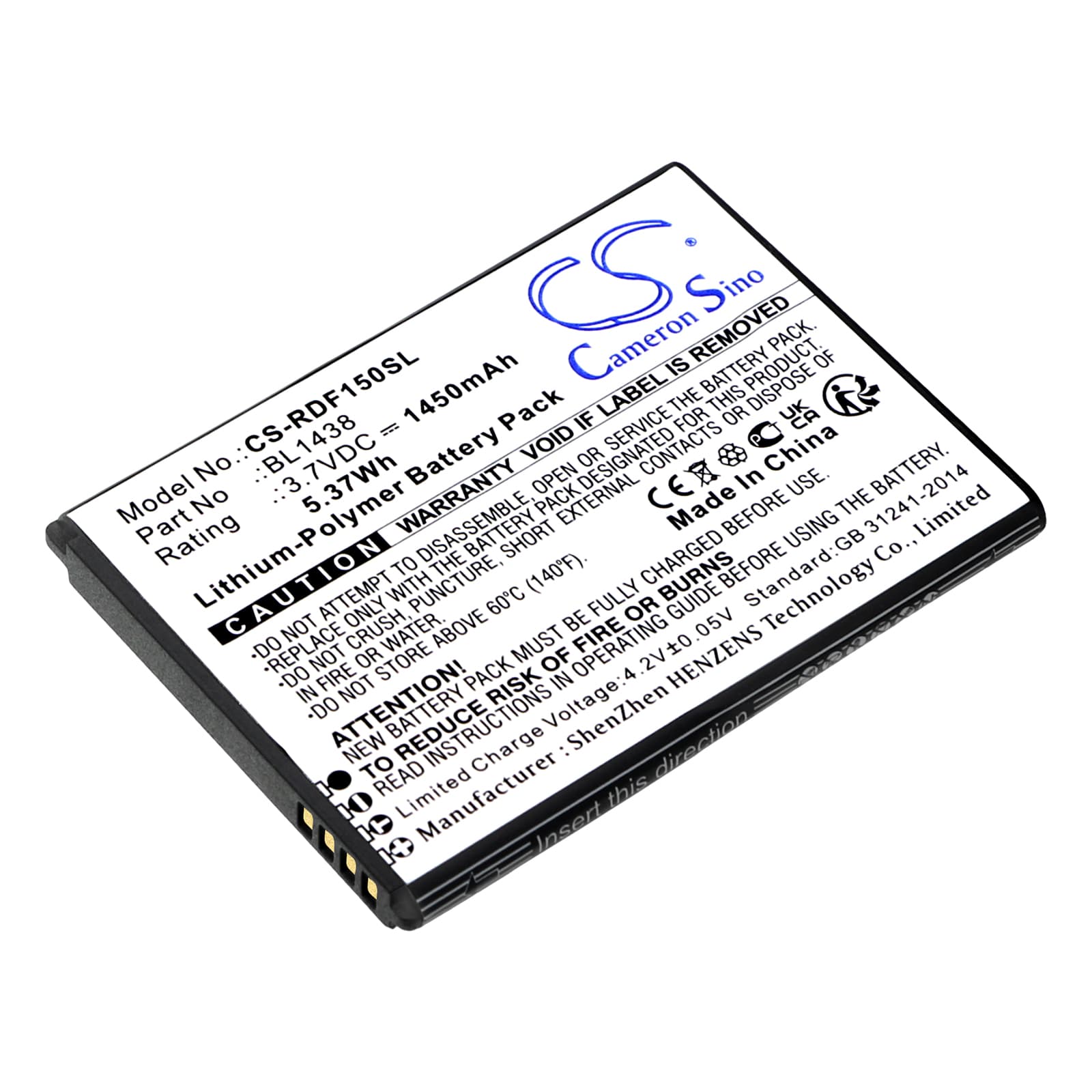

R3Di Bright Flip / FR150 — 3.7V Li-Polymer Replacement Battery (BL1438)
The BL1438 is a 3.7V, 1450mAh (5.37Wh) lithium-polymer cell that fits the R3Di Bright Flip and FR150 handsets. It slots into the same battery bay as the factory unit and connects to the same charging and protection circuit on the motherboard. Use the capacity figure from the product data — 1450mAh — as the reference for this cell.
- Bright Flip and FR150 compatibility: Both models share the BL1438 footprint, the same connector pinout, and the same BMS handshake voltage. The cell dimensions — 60.20 × 44.50 × 5.00mm — clear the battery bay on both variants without physical modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench, confirmed BMS communication with the charge IC, and verified the protection circuit tripped correctly at the low-voltage cutoff threshold. No abnormal heat or charge termination errors were logged.
- Fuel gauge recalibration on first use: After fitting this cell, disable any fast-charge mode and run one full discharge-to-charge cycle before normal use. This gives the fuel gauge IC a complete current profile to map against the new cell's discharge curve before high-current charging begins on an uncalibrated cell.
Sudden shutdown at 20–30% on the Bright Flip after a cell swap
This happens because the fuel gauge IC is still referencing the discharge curve of the old, degraded cell. When the new cell hits a voltage point that the old curve mapped to 20–30%, the IC signals a critical low and the OS forces shutdown — even though charge remains in the new cell. The fix is a full calibration cycle: discharge the phone until it powers off on its own, then charge uninterrupted to 100% without interruption. After one complete cycle, the coulomb counter recalibrates and the shutdowns stop.
OS reporting erratic or jumping battery percentage after replacement
The fuel gauge IC uses stored charge-cycle data from the previous cell to estimate state of charge. A new cell with a different internal resistance profile causes the IC to misread voltage under varying loads — screen on, modem active, idle — producing percentage jumps of 5–15% in either direction. This is not a fault with the replacement cell. Run two full discharge-charge cycles and the coulomb counter will converge on an accurate reading against the new cell's actual capacity.
